Gates Manufacturing products

The most adjustable, most effective, most productive residue management and seed bed preparation tool on the market. The Gates Coulter Disk hydraulically adjusts from vertical tillage to conventional disk tillage. Precisely vary the disk gang aggressiveness from 0 to 15 degrees. Adapt this implement to your residue and soil types to achieve optimum agronomic conditions for the next crop. The Gates Coulter disk provides an unmatched value with excellent field performance in wet or dry conditions, travel speeds from 6 to 10 mph, plus implement sizes from 24 to 54 ft. The 9000 series offers 9” blade spacing (4.5” overall), individual blade hubs, along with your choice of Ingersoll blades in 22” or 24” diameters.

The most adjustable, most effective, most productive residue management and seed bed preparation tool on the market. Fall or spring, this tool performs! The Gates Coulter Disk hydraulically adjusts from vertical tillage to conventional disk tillage. With the touch of a button on the Dynamic Adapt tablet, precisely vary the disk gang aggressiveness from 0 to 15 degrees. Adapt this implement to your residue and soil types to achieve optimum agronomic conditions for the next crop.

Extremely good in wet conditions for drying out ground and seed bed preparation.  Great for residue management, including legumes.

The Dynamic Adapt Soil Conditioning System (US Patent Number 9,668,399) is an option that can added to 9000 or 12000 Coulter disks. Signals from sensor cylinders are fed into a control box which transmit information over Wi-Fi in real-time into a tablet in the cab. In turn, the system processes the information and communicates back to controller via Wi-Fi which signals the proportioner valves to make adjustments. This system allows you to precisely adjust your settings with a push of a button.

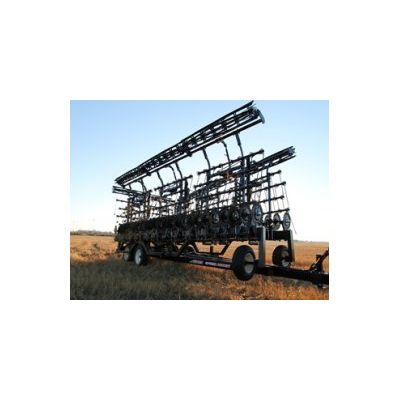

Great in the Field and on the Road. The primary uses of the Gates Magnum Coulter Harrow are for heavy residue management, fertilizer incorporation, seedbed preparation, and post-seeding operations. Its wing forward design lends itself to air delivery applications and its compact transport (8.5 ft wide) makes it easy to move from field to field. Saves Time and Fuel. With the Gates Magnum Heavy Harrow, you can run at high speed (8-12 mph) covering large areas in less time. With today’s high fuel prices, it can cover large acreage giving you fuel savings of 50 to 75 percent over most conventional implements. A Winning Combination! The combination of 5/8″ x 30″ carbide tipped harrow tines, heavy 20″ diameter IngerSoll Soil Rebel™ blades, unsurpassed section down-pressure, a heavy tubing frame and precise, hydraulic controlled tine angle adjustments make the Gates Magnum an ideal machine for all types of farming practices.

Great in the Field. Gates Sunflower Liftrods are designed to lift and guide sunflowers into your header. They attach to most any 9”or 12” pan system with two bolts. They work exceptionally well in sunflowers that have lodged. This proven design has performed well for over 35 years!

Great in the Field. The primary uses of the Gates Magnum Heavy Harrow are for heavy residue management, fertilizer and chemical incorporation, and spring seedbed preparation. Saves Time and Fuel. With the Gates Magnum Heavy Harrow, you can run at high speed (8-12 mph) covering large areas in less time. With today’s high fuel prices, it can give you fuel savings of 50 to 75 percent over conventional implements. A Winning Combination! The option of 5/8″ x 30″, 9/16” x 26”, or 1/2″x22″ tines, unsurpassed section down-pressure, a heavy tubing frame and precise, hydraulic controlled tine angle adjustments make the Gates Magnum an ideal machine for all types of farming practices. If you want productivity up to 100 acres an hour, this is the tool for you!

The primary uses of the Gates Light Tine Organic Harrow are for light residue management and weed control in-crop, plus seedbed preparation, and post-seeding operations. Saves Chemical. With the Gates Light Tine Organic Harrow, you can control weeds in less time.  Its 5/16″ x 20″ tines and parallel link design are ideal for weeding operations in organic and certain row crop applications (sugar beets & potato hills).

The primary use of the Gates Baglifter is to assist in loading bulk chemical bags into frame mounted chemical applicators. Any Implement and Configuration! Gates Manufacturing has equipped Baglifters on a variety of harrows, cultivators, chisel plows, and even high wheel applicators.  If we haven’t done it yet, we can work with you to develop the mount system for your application.

Great in the Field. The primary use of Gates Mounted Magnum Harrows is enhanced performance of your secondary and primary tillage tool. They are designed to handle tough residue in all conditions and prepare fields in fewer passes. Saves Time and Fuel. With Gates Mounted Magnum Harrows, you can eliminate tillage passes and prepare the seedbed in less time. With today’s high fuel prices and equipment operating costs, you can immediately cut costs by eliminating field passes. Any Implement and Configuration! Gates Manufacturing has equipped Mounted Magnum Sections on many makes and models of chisel plows, cultivators, disks, and rippers; even manure injection systems and road graders! If we haven’t done it yet, we can work with you to develop the mount system for your application. We mount up to John Deere, Case, Sunflower, Landoll, DMI, Great Plains, Krause, Wishek, Wil-rich, M&W, Brent, Ezee-On, and AerWay.
