H&H Farm Machine Co. products

Christmas tree sprayers feature 200, 300 and 500 Gallons elliptical tanks, with Honda engines and Udor Kappa 43GR diaphragm pumps rated for 10 Gallons at 560 PSI. Also one or two reels, we put 300 feet of hose on each reel, the reels can be manual or electric Hannay reels. For the Christmas tree sprayers we also put quick disconnects on the inside of the reel for the operators when they have the hoses pulled out, they can then disconnect the hoses, go refill the sprayer tank, come back, reconnect and start where they left off without having to roll the hoses back up. The skids feature fork pockets for ease of loading and unloading from a truck or trailer. Also standard is an 8 Gallons tank for hand washing and clean up ability in the field.

Our heavy duty Poultry Quick Wash has many features that you will enjoy beginning with our Udor diaphragm pump rated at 46 gallons per minute at 700 PSI. We also offer, on our poultry washer, four side wall nozzles to clean curtains and side walls. Two overhead nozzles on the poultry washer clean ceilings, then invert the nozzles to spray the floor with disinfectant. We use all crimped hydraulic fittings in all of our pressure hoses. 500 gallon elliptical tank keeps a low profile to clear waterers and feed lines and 11L 15 tires mounted on heavy duty hubs. A spring loaded reel on the rear and hand gun allows the operator to wash fans and other equipment inside or outside of the house. Our economy poultry washer model offers the same great features as the large washer but with a 36 gallon per minute, three cylinder diaphragm pump.

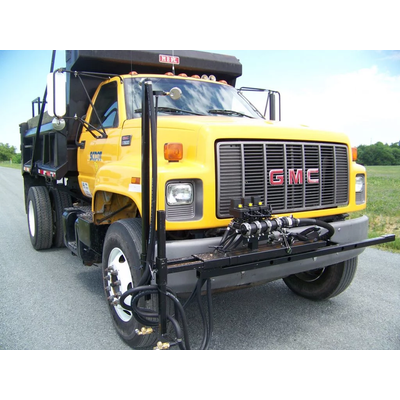

We build roadside sprayers to roadway sprayers with injection, rate control, guidance, eyewash stations and stands for easy storage.  Many options available include Radiarc, electric valves and regulators, multiple tanks, chemical injection, clean water and more.

Our pasture sprayers are offered in three point or pull type configurations either with booms or boomless. The three point is offered with 55 to 300 Gallons tanks and the pull in 55 to 500 Gallons tanks. They are mainly used in spraying hay lands and pastures. Many options are available such as electric valves, regulators, spray guns, foam markers, etc.

We offer a wide range of tank sizes in a three point or pull type sprayer with booms of any length up to 90 feet. Forty-five and sixty feet booms are front folded in a compact fashion. Booms are available in manual or hydraulic fold, either with the tractor hydraulics or on a joystick where one remote works several functions. Various options are available, ranging from foam markers, electric valves, electric pressure regulators, rate control, GPS guidance and boom section control. Pumps can be PTO roller, PTO centrifugal or hydraulic centrifugal.

This is not your cheap throw away model that you might get at a discount store. These are heavy duty, ready to work spot sprayers for the people who rely on their equipment to work. Spot sprayers are built with the same components that we use in our regular heavy duty sprayers and will give you many years of reliable service. We use Shur Flo pumps in either 1.8 or 3.0 gallons per minute with 15 feet of hose, and a high quality hand gun. Spot sprayers can be adapted to our four nozzle boom or boomless kit.

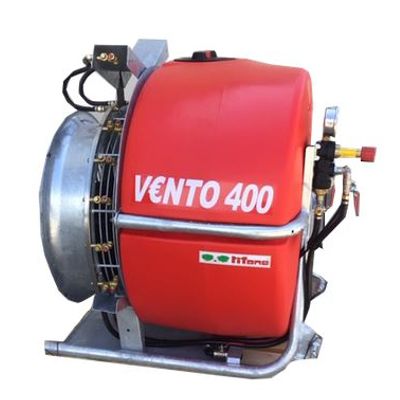

The ideal, lightest and most compact Agricultural Sprayer for the most difficult terrains.

Agricultural Sprayer with Very Robust, Compact Double Galvanized Frame. New “entry level” line of tractor mounted sprayers: powerful, compact, robust, double galvanized frame, mechanical level immediately visible by the operator, original well-rounded shape, unique ventilation for effectiveness and penetration. Available with 300 and 400 Liter capacities. Also available in version with “cannone” on 300 and 400 Liter.
