Henan Qianli Machinery Co., Ltd. products

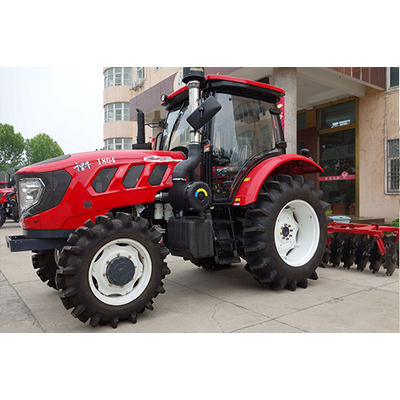

QLN3004hp big farm tractor use Shangchai six cylinder engine, turbocharger, inter-cooling, 12 hours rated power: 220kw, fully enclosed drive cabin, air heater, air conditioner, Fast Transmission, 27F+9R gears, synchronizer shift, unit frame chassis, driving system with modularized structure, famous international brand front axle.

This Model is powered with the famous Engine: YTO/WEICHAI engine. It offers high performance/ Low fuel consumption and vibration noise. Front axle is used with advanced structure and super performance.

The use of flat floors, hanging pedals, side manipulation, 16+8 shuttle shift transmission, and various gear selections can provide a reasonable velocity distribution. 240-liter lower large fuel tank, a long operation time. Adopting 14 inch double clutch,high transfer ability reliable effect,operation more comfortable.

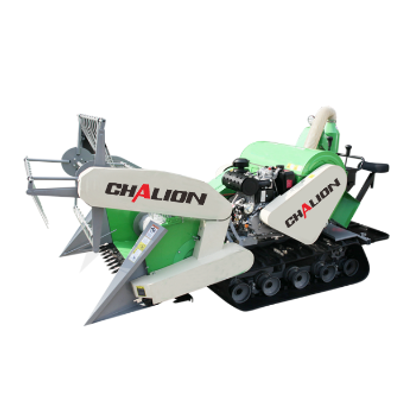

Chalion 4LZ-0.6 mini rice harvester is a full-feed self-propelled crawler-type small combine harvester, which can be used for rice and wheat harvesting in hilly areas. This machine uses a one-lever control for easy operation. High operating efficiency, using gasoline power, energy saving, and environmental protection.

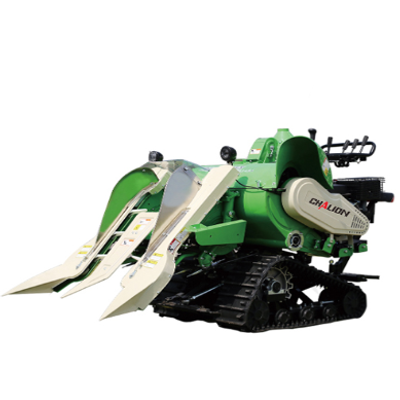

4LZ-1.1 mini rice harvester is a crawler-riding rice and wheat combine harvester. Widened header increases hourly feed and work efficiency. Multiple gears can be switched freely.

Stepless regulation of wheel tread:735-795mm. Two options of tiller:1GS9L-80?1GS9L-90. Multiple working land types:muddy, mountainous land, plain, terrace field. Match with all kinds of farm implements:plough, tiller, trailer, sprayer, seeder etc.

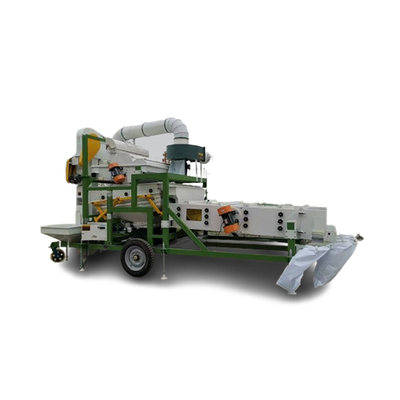

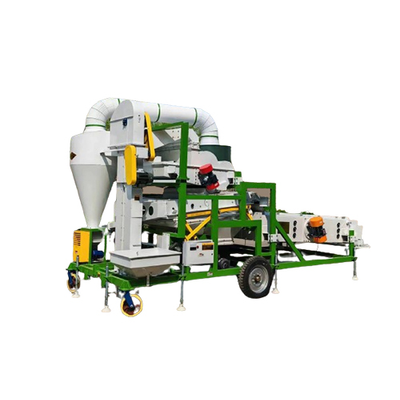

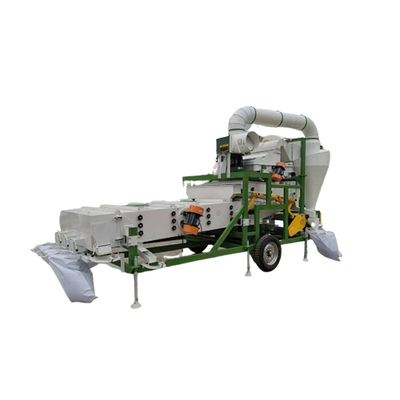

This machinery integrates the functions of air separation, gravity selection, and screening (grading), with high purity of finished products. The machine is suitable for processing various crops and all granular materials.

The wheat is fed into the huller, and the hulled wheat is transported to the horizontal air screen by a bucket elevator to remove light impurities such as dust and chaff from the wheat. The light impurities are settled by the air duct and the cyclone dust collector, and then discharged by the air closer. Then the wheat flows into the  gravity table to remove other impurities with lighter bulk density such as knotweed, moldy grains, blighted grains, sprouted grains, and worm-eaten grains. After air separation and gravity separation, the grain finally enters the vibrating screen, and through the sieve with customized hole size, the larger and smaller size impurities are removed.

The rice is fed into the de-awner and then transported to the horizontal air screen by a bucket elevator to remove light impurities such as dust, chaff, and shells from the rice. The light impurities are settled through the air duct and cyclone dust collector and discharged and collected by the air closer. Then they flow into the gravity table to remove other impurities with lighter bulk density such as blighted grains, sprouted grains, worm-eaten grains, moldy grains, etc. After air separation and gravity separation, the rice finally enters the vibrating screen, and through the sieve with customized hole size, the larger and smaller size impurities are removed.
