Henke Manufacturing products

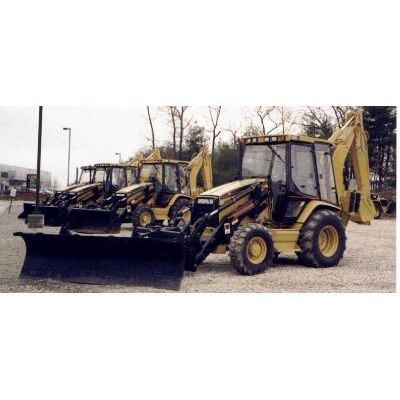

The Henke Folding V-Plow is a Heavy Duty, Multi-Directional dozer blade for wheel loaders and motor graders. Designed specifically to accept machine downpressure from wheel loader arms or Henke motor grader parallel lift groups.

Dual Compression Spring Trip Provides Safety For Driver And Equipment.Moldboards 30” H x 10’ W Gives a 104” Cutting Path at 30°/All Moldboards 3/16” Rolled Plate Steel with Tapered 1/2 x 4” Plasma Cut Ribs and 4 x 4 x 5/8” Reinforced Bottom Angle/Heavy Duty Circle Pushframe 3 1/2 x 3 1/2 x 1/2” Rolled Angle Welded To 4 x 4 x 3/8” Structural Tube Pushbeam/A-Frame made of 4” S & C Channel, Welded to 1 x 5” Backplate Reinforced with 5/8 x 3 1/2” Top Plate/Heavy Duty Swivel Plate, 7” S & C Channel with 11/4” Grade 5 Bolt in Reinforced Swivel Mechanism and 1” Plasma Cut Ears

The Henke REL is a heavy duty reversible snow plow for wheel loaders and motor graders.Molboard, pushframe, and A-frame are structurally designed to transfer downpressure from the loader arms to the cutting edge.Heavy duty canister spring trips permit the moldboard to trip forward clearing roadway obstacles, providing safety to the operator and equipment.See industrial snowplow REL literature for detailed features and options
