HORSCH Maschinen GmbH products

Soil Cultivation - Cultivators

Terrano - Universal Cultivator

Universal cultivator for almost all conditions. Extremely manoeuvrable due to its compact design. Possible with 3-point linkage. Large selection of packers for optimal adaptation to the conditions of the site. 3 – 6 m working width. 3 – 6 m is also available with chassis. Power demand starting at 90 kW / 120 HP

Tiger - Heavy and Robust Universal Cultivator

Robust cultivator for universal use. Durable with highest area output. For shallow stubble cultivation down to a working depth of 35 cm. Clogging-resistant. 4,80 – 10,20 m working width. Power demand starting at 150 kW / 200 HP.

Terrano - Allround Cultivator

Universal cultivator for most conditions. Extremely manoeuvrable due to chassis which is integrated in the frame. Flexible packer mounting due to quick-change system. Extremely low power requirement due to 28 cm wide row spacing. 4,80 – 7 m working width. Power demand starting at 150 kW / 205 HP.

Seeding Technology

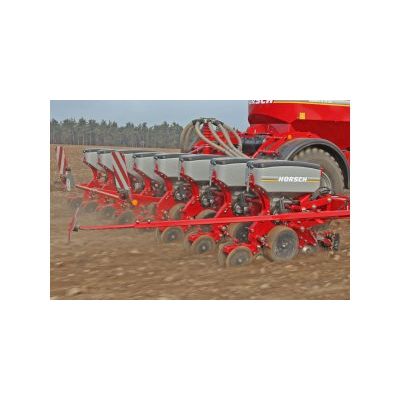

Maestro - Single Grain Seed Drills

The Maestro RC is designed for being attached to a seed waggon (Pronto AS) - for efficient and flexible single grain sowing. The combinaton of Maestro RC and SW 3500 excels due to its flexible equipment versions and its driving comfort.Chassis: The large chassis offers excellent driving comfort. 3-point mounting: The 3-point mounting allows for attaching a TurboDisc seed bar in addition. The seedwaggon, thus, can also be used for sowing cereals.Front tools: Contrary to the Maestro CC, the RC in combination with the SW 3500 is (like the Pronto) isequipped with a 2-row DiscSystem allowing for combining seedbed preparation with sowing.

Maestro - Single Grain Seed Drills

For all types of single grain sowing. Sowing speed up to 12 km/h with precise seed placement. High coulter pressure up to 300 kg. Due to the design of the machine the distance between fertilizer and seed always stays the same. The electronic control system monitors the amount of missing and double spots as well as the coefficient of variation per row. 8-12 seed rows. Power demand starting at 260 kW / 350 HP

Express - Three Point Seed Drill

The Express KR is the first pneumatic HORSCH three-point seed drill with an active tillage tool: the integrated rotary harrow Kredo. Even under difficult conditions it allows for an intensive seedbed preparation. The rotary harrow Kredo has 10 rotating tools on 3 m working width. Its stable design is ideal even on stony soils. With quick-change tines it can be equipped with drag or TerraGrip tines. The fine-step adjustment of the working depth of the rotary harrow is easily accessible from the outside and is clearly visible. The adjustment of the levelling bar, too, is very easy.

Horsch Express - 3-Point Linkage Seed Dril

Seed drill with 3-point linkage combining cultivation, consolidation, sowing and pressing. 2-row DiscSystem for the production of fine earth at high working speeds. FarmFlex packer for optimum levelling and consolidation in front of every seed coulter. Large hopper with a capacity of 1,500 litres. Turbo Disc seed coulter with uniformer for a considerable clogging reduction and exact seed placement. 3 - 3,50 m working width. Power demand starting at 90 kW / 125 HP.

Crop Protection- Trailed Sprayers

Leeb - Trailed Sprayers

Solidly designed frame made of quality steel. Optional: air-suspended axles with level compensation. Solid drawbar connection for large clearance, top or bottom connection, depending on the vertical load. Steering axle for stable positioning of the boom with high stability and exact tracking to avoid tramline damage. Optimal, even in uneven terrain. Large steering angle due to a taper-cut frame design. Extremely low centre of gravity. Optimised drop-shaped tank. Large tyres – less ground pressure. Wheels with diameter of up to 2.05 m. Maximum ground contact area with perfectly adapted air pressure. Taking care of the crop. Smooth machine underbody. No edges and corners on the underside of the machine. Hydraulically foldable and fully covered support leg

Leeb - Trailed Sprayers

Agritechnica silver medal for the boom control system Boom Control Pro and award Machine of the Year 2014. Hopper capacity 6000, 7000 or 8000 l. Trailed sprayer with large area coverage. Up to 36 m working width. Stainless steel tank for long life and easy cleaning with no residue. Steel spray boom with positive-mode connections. Due to the design the sprayer boom can be positioned very close to the rear axle despite the parallelogram suspension. Hydraulic axle steering. 8,000 l capacity. 530 l fresh water tank. Filling capacity – 1.000 l / min

Crop Protection- Self Propelled Sprayers

Leeb - Self Propelled Sprayers

Self-propelled sprayer with large area coverage. Up to 36 m working width. Pneumatic nozzle switching. Stainless steel tank for long life and easy cleaning without leaving any residues. Cleaning system on the displacement principle for less water consumption and faster cleaning. Rotary pump with low wear and long life performance. Steel spray boom with positive-mode connections. 8,000 l capacity. 270 hp engine power. Approx. 0.8 l / ha of diesel consumption. Filling capacity – 1,000 l / min.
