31 products found

Products

  • Hydraulic Rotators - Indexator Rotators

  • Indexator - Model AV 4E I - Hydraulic Rotator

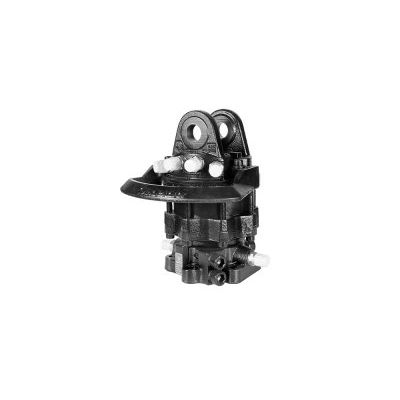

    Indexator - Model AV 4E I - Hydraulic Rotator

    Designed for small forest harvesters. Lifting capacity: 4t. Unlimited rotation. Weight: 31,7kg. Max axial load, static: 45kN. Max axial load dynamic: 25kN. Torque at 25MPa: 1150Nm.

  • Indexator - Model GV 12-2 - Hydraulic Rotator

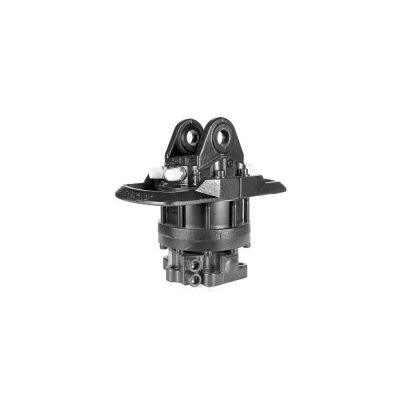

    Indexator - Model GV 12-2 - Hydraulic Rotator

    Designed for professional forest treatment Robust and durable. Technical data; Lifting capacity: 10t. Unlimited rotation. Weight: 58kg. Max axial load, static: 100kN. Max axial load dynamic: 50kN. Torque at 25MPa: 2220Nm.

  • Indexator - Model H 101 - Hydraulic Rotator

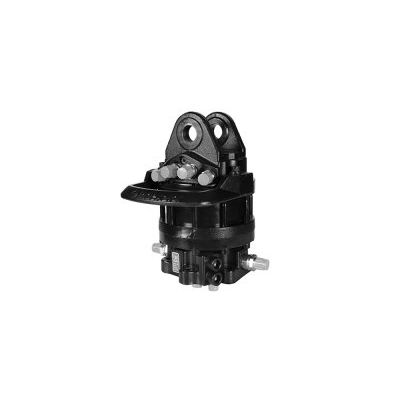

    Indexator - Model H 101 - Hydraulic Rotator

    Medium size wear durable rotator. Specially engineered for small and large harvesters.  Rigid upper mounting which fits MPB (Multi Plate Brake) system swing dumping links.

  • Indexator - Model H 132 - Hydraulic Rotator

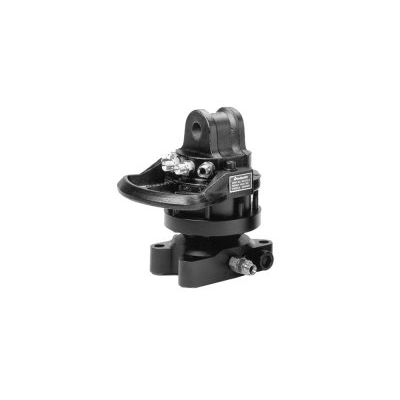

    Indexator - Model H 132 - Hydraulic Rotator

    Designed for medium size harvesters. Rigid upper mounting which fits MPB (Multi Plate Brake) system swing dumping links. Rigid upper mounting with tough bearings’ bushings to insure durability.

  • Indexator - Model IR 10 M16 - Hydraulic Rotator

    Indexator - Model IR 10 M16 - Hydraulic Rotator

    Designed for material handling with high loads. Thanks to specially designed bearings unit rotator perfectly holds both, axial and radial loads. Rotator, without distributor, can be connected to five cylinders of the grapple.

  • Indexator - Model IR 12 - Hydraulic Rotator

    Indexator - Model IR 12 - Hydraulic Rotator

    Special construction, which designed for heavy loads handling logs. Thanks to module design rotator could be equipped without hydraulic motor. Upper mounting (ears) could be chosen to fit Indexator links.

  • Grapples & Buckets

  • Hultdins SuperGrip - Model R - Grapples

    Hultdins SuperGrip - Model R - Grapples

    For handling of slash and bioenergy wood.(Note! Not suitable for stumps).Tapered sleeve pin design eliminates any joint motion.1000 hour greasing interval.Strong cushioned cylinder reduces shock loads,designed for up to 25 MPa workingpressure.High strength steel and robotized.welding ensures minimized down time

  • Hultdins SuperGrip - Model S - Grapples

    Hultdins SuperGrip - Model S - Grapples

    Heavily reinforced model for the toughest jobs in the forest and excavator applications Tapered sleeve pin design eliminates any joint motion Sealed bushings allow for 1000 hour greasing interval Strong cushioned cylinder reduces shock loads, designed for up to 25 MPa working pressure Grapple saw option available on all models

  • Hultdins SuperGrip - Grapples

    Hultdins SuperGrip - Grapples

    Tapered sleeve pin design eliminates any joint motion Sealed bushings allow for 1000 hour greasing interval Strong cushioned cylinder reduces shock loads: designed for up to 25 MPa working pressure High strength steel and robotized welding ensures minimized down time Grapple saw option available on all models

  • Hultdins SuperGrip - Model II - Grapples

    Hultdins SuperGrip - Model II - Grapples

    Optimized design that secures high quality and strength. Tapered sleeve pin design eliminates any joint motion. Strong cushioned cylinder reduces shock loads, designed for up to 25 MPa workingpressure. High strength steel and robotized. welding ensures minimized down time. Grapple saw option available on all models.

  • Hultdins SuperGrip - Model II-A - Grapples

    Hultdins SuperGrip - Model II-A - Grapples

    Unique arm geometry improves the selection and handling of individual logs.Asymmetric grapple arm design improves the 'rolling' of the logs into the grapple during the loading process.The pointy grapple tip design minimizes the picking of unwanted debris .The A-grapple works well in multiple applications from the handling of round wood to bio-mass applications

  • Hultdins SuperGrip - Model II-R - Grapples

    Hultdins SuperGrip - Model II-R - Grapples

    For handling of slash and bioenergy wood. (Note! Not suitable for stumps). Tapered sleeve pin design eliminates any joint motion. Strong cushioned cylinder reduces shock loads,  designed for up to 25 MPa workingpressure. High strength steel and robotized. welding ensures minimized down time. The R-model is based on the arms of the respective S-model.

  • Hultdins SuperGrip - Model II-S - Grapples

    Hultdins SuperGrip - Model II-S - Grapples

    A reinforced model for the tougher applications. Tapered sleeve pin design eliminates any joint motion. Strong cushioned cylinder reduces shock loads, designed for up to 25 MPa workingpressure. High strength steel and robotized welding ensures minimized down time. Grapple saw option available on all models.

  • Hultdins - Model HLD-P2-R - Hydraulic Bucket Grab

    Hultdins - Model HLD-P2-R - Hydraulic Bucket Grab

    This grab is designed for handling agricultural crops, especially beets and potatoes. Special edges minimize damage to handled crops. Replaceable teeth are made of HARDOX 500. The grabs are fitted with German-made THUMM rotators.

  • Carriages and Cranes

  • Weimer - Model We-4100 - Crane

    Weimer - Model We-4100 - Crane

    Working radius: 64,1 m.Crane rotation: 360°.Telescope: -Slewing moment: 7,0 kNm.Lifting power: 4,1 m - 300 kg.Weight with oil, excl. grapple and rotator: 270 kg.

  • Weimer - Model We-5 - Carriage

    Weimer - Model We-5 - Carriage

    Loading capacity: 5 ton Total length: 4,50 m Total width: 1,52 m Loading area: 176 m2 Wheel dimension: 10/80-12 Weight: 600 kg

  • Saw Bar

  • FOREQ - Harvester Saw Bar and Rim Sprockets

    FOREQ - Harvester Saw Bar and Rim Sprockets

    Hydracom this year launched a cooperation with high-quality saw bar FOREQ Forest Equipment manufacturer, whose 25 years of experience now materialized in a new product line - FLEX.
