Imac s.r.l products

Garlic Digger

Imac - Model PD - Garlic Digger and Windrower

The garlic digger PD is designed for picking up garlic, carrots, garlic, leeks, onions, etc. The standard version is with share blade in whole width, with adjustable angle, two grass-cutting discs (one for each side), one single sieving web, one web shaker with adjustable intensity, two rear wheels adjustable singularly and two adjustable Teflon windrow grates for a perfect windrow. The machine can be linked up to a tractor by the three-point linkage. The digging depth is regulated by the third upper point, by adjustable share angle and by the rear wheels.

Imac - Model SP - Garlic Digger with Web 1 and 2 Rows

Additional Information: Shareblade made up of several interchangeable blades and 2 lateral grass cutting discs. Protection kit against obstruction made up of a transversal moving comb placed between the shareblade and the conveyor web to help the ascent of the soil on the web and 2 moving cleaners to prevent obstructions between the grass cutting discs and the web. Conveyor web with iron bars and supported by rubber rollers with bearings. Rear vibrating sieve to guarantee a better separation of the garlics from the soil (optional).

Onion Digger

Imac - Model OD - Onion Digger and Windrower

The Onion Digger IMAC with rotating digging shaft is suitable for harvesting all types of onions. Thanks to the square digging shaft, the least possible soil need be worked and the machine can be used in all conditions. The machine equipped with 1 belt allows a perfect sieving. In the rear section, underne- ath the machine, a large plastic compacting roller prepares the bed for the windrow and ensures faster drying.

Onion Loader

Imac - Model RC 80 90 NE - Onion Loader

This Onion loader has been designed principally for harvesting onions but also red beet and potatoes with a two phases system. It is a towed machine with an hydraulically driven drawbar. Steering wheels (opt).

Imac - Model OL 1400 - High Output Onion Loader

This machine has been designed principally for harvesting onions but also red beet and potatoes with a 2 phases system. It is a trailed machine with an hydraulically dri- ven drawbar and steering wheels. The standard version consists of 2 conveyors with adjustable level wheels and a sponge roller.The sieving-elevator web is very large (140 cm) and has a gentle slope to avoid rolling and peeling. The swinging pick up follows perfectly the shape of the ground. A big cleaning hedgehog with adjustable speed and angle completes a rich and important serial base equipment.

Onion Topper

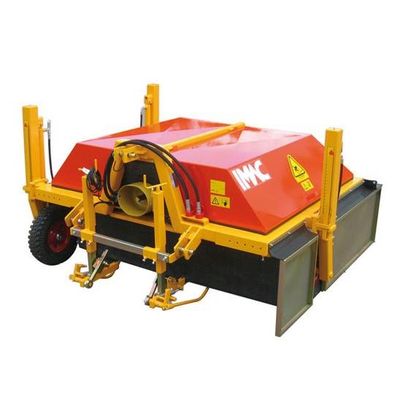

Imac - Model TFC - Onion Haulm Topper

Onion haulm topper supplied with hydraulically driven level wheels, cardan shaft with clutch and 3 points hitch 2ª cat. Working width from 150 to 180 cm.
