Ivarssons i Metsjo AB products

Item number chassis: 110132. Pendulum bogie distance 1050 mm, Maximum load 6 tons per axle. Flange width 1850 mm. Coated according to KTL-method, black. Rim connection 161x205x6 open nuts. Hydraulic brakes: on all drums, According VVFS 2003:20. Manually adjusted brake arms. Maximum hydraulic pressure 110 bar. Cover sheets stop dirt entering the brake drums. Back tipping, tipping angle 55º, Oil volume 10L /210 bars. Lights according TSV LED 12-24V 7 pol.. Prepared console for mounting an axle lifting system. Prepared console for mounting different drawbars. Colour Metsjö grey. Prepared for MetaMid/MetaNo bodies. Chassis weight 1 550 kg, Technical load 15 000 kg.

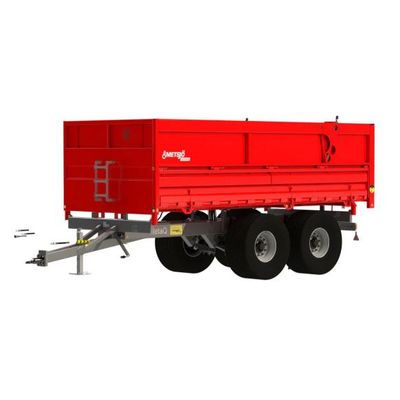

Art: 166351. Item number 151520. Axles: one-piece axel body 110x110, Flange width 1 800 mm. Load: 8,5 ton at 50 km/h, laser aligned. Coated according KTL-method, black. Axle distance 1 360mm, Axle system: Road. Rim connection 280x335x10, domed nuts. Communicating vessels: The chassis height is adjustable (from the chassis) 350mm. Hydraulic brakes on all drums. Size 410x110. According VVFS 2003:20. Automatically adjusted brake arms AGS. Maximum hydraulic pressure 110 bar.

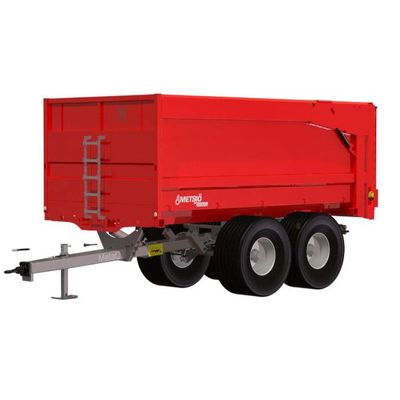

Art: 120081. Item number complete: 120081. Axles: one-piece axel body 120x120, Flange width 2 000 mm. Load: 10,5 ton at 62 km/h, laser aligned. Coated according KTL-method, black. Axle distance 1 540mm, Axle system: Road. Rim connection 280x335x10, domed nuts. Communicating vessels: The chassis height is adjustable (from the chassis) 350mm. Hydraulic brakes on all drums. Size 410x120. According VVFS 2003:20. Automatically adjusted brake arms AGS. Maximum hydraulic pressure 110 bar.

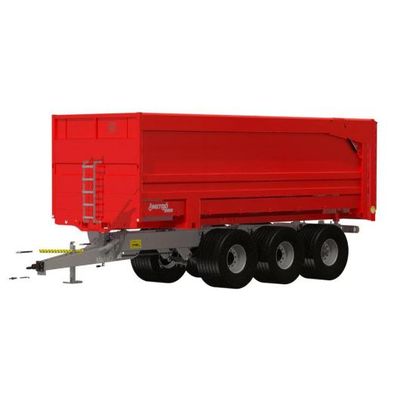

Art: 150678. Item number chassis: 110188. Axles: one-piece axel body 120x120, Flange width 2 000 mm. Load: 10,5 ton at 62 km/h, laser aligned. Coated according KTL-method, black. Axle distance 1 540mm, Axle system: Road. Self steering axle with hydraulic locking when reversing (axle 3). Rim connection 280x335x10, domed nuts. Communicating vessels: The chassis height is adjustable (from the chassis) 350mm.

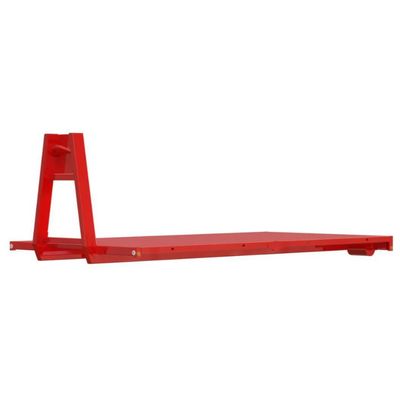

Hook height 1450mm, Contanier standard SIS 3021. Steel 355 Brinell: Container bed 4 mm. Hooks for load securing - outside lining of the platform. Consols for mounting different options for bale transport. Colour red, painted according Metsjö standards. Weight 1200 kg.
