J & I Manufacturing, Inc products

The J & I Bale Bed is a versatile option that can be integrated into any truck bed with modifications. It features hardened bale super spears and a 2-way electric over hydraulic pump, powering two 2-1/2" x 10 hydraulic cylinders. Included are all hydraulic fittings, hoses, electric lines, and a 150 amp circuit breaker. The bed construction offers choices like 3/16 smooth or tread floor, 3 channel cross members, and 6 channel runners. Installation includes bolt-down, wiring lights, gas neck install, and mud flaps. Towing options include reinforced hitches, gooseneck boxes, and dovetail drops. Skirted body options offer features like aluminum stone chip guards, additional toolboxes, and welder troughs. Rack options range from full gussets to various light configurations. Lighting options include LED and standard lights for different sections. The Arm Bed option includes heavy-duty arm turrets, bale spinners, a 4-way hydraulic pump with remote, and can be added to various bed types with modifications.

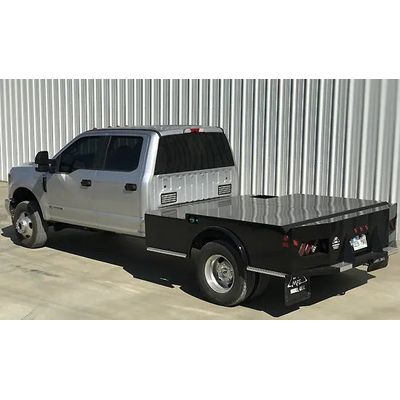

FEATURES: 4” 5.4lb channel runners. 3″ channel cross members. 10ga smooth steel sides with radius roll 2” fenders & step-up running boards. Western tail section using 3/16” & ¼” smooth plate steel, recessed light boxes with 4 round seal beam lights, and rear hitch with standard height or optional 4” drop for tall profile truck. 34” wide 3” dropped floor for welding or feed equipment. 10 gauge smooth steel plate floor and sides. Recessed clearance lights and license plate box. Receiver in rear skirt with safety chain holder

FEATURES: 4” 5.4lb channel runners & outer rail. Stake pockets & rub rail. 1 ½ x 3 x 13ga channel cross members. 2” square headache rack-top half shades, bottom half 16ga solid. 42” stake sides & rear boards using 1 ½ x 3 14ga tubing stake and 6” slats. Recessed clearance lights.

Photo may contain optional equipment. Options can be added to any bed with modifications

FEATURES: 4” 5.4lb channel runners. 3″ channel cross members. 1/8” tread plate floor. 10ga smooth steel sides with radius roll 2” fenders & step-up running boards. Aluminum tread scuff plates in all step-up areas. Western rack with 4 oval sealed beam lights. Standard J & I gooseneck box with safety chain holders. Toolboxes. 2 upright toolboxes with 1 shelf and 3 j-hooks. The passenger side has 3 additional swivel tool bins. 2 underbody toolboxes behind tires. 2 top of floor 5’ or 7’ top opening toolboxes. 4 D-Ring tie-downs. Receiver in the rear hitch with safety chain holders. Removeable vice mount. Fully welded seams.

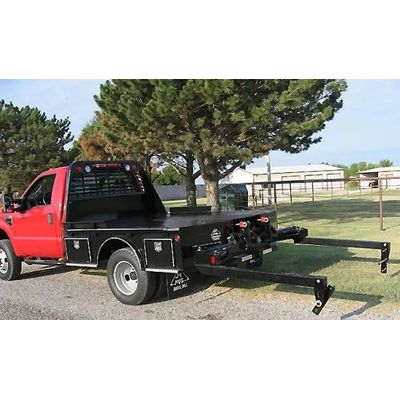

FEATURES: Heavy duty arm turret with dual “pinch from the corners style arms”. Heavy round bale spinners and clearance lights mounted to ends of arms. Grommet lights in tail section. Receiver in rear hitch with safety chain holders. Heavy duty capacity hydraulic 4-way pump with 4 button remote. Heavy 1ga. Electric lead, 250-amp fuse and holder. All hydraulic lines and fittings. 1-tool box sized to match truck bed up to a max size of 15x15x30 other sizes and extra boxes are additional. *We recommend pump be mounted in box*. Arm Bed option can be added to NS, OS, Ranchhand and Weld Feed Bed with modifications.

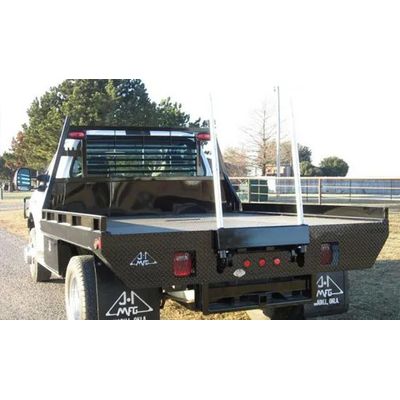

FEATURES: The J & I Bale Bed option can be added to any bed with some alterations, it has the addition of a set of hardened bale super spears. The bale bed comes with 2-way electric over the hydraulic pump to power 2 – 2-1/2″ x 10″ hydraulic cylinders. Included are all hydraulic fittings & hoses, all-electric lines, and a 150-amp circuit breaker. We recommend that the pump be mounted in an enclosed toolbox (not included). The spears will go down, past level for ease of bale spearing, and past straight vertical to set the bale up over the body. The rear hitch is straight down with the tail section to allow the bale to be fully speared. Bale spears can be removed for ease of pulling a gooseneck trailer and stored beneath the bed in a 2″ x 4″ spear holder.

FEATURES: 4” 5.4lb channel runners. 3″ channel cross members. 1/8” tread plate floor. 10ga smooth steel sides with radius roll 2” fenders & step-up running boards. Exterior stake pockets & rub rail with 4” removable sideboards. Standard gooseneck box with safety chain holders. Rounded corner western rack with shades & 4 oval led lights. Recessed clearance lights. Western tail section using 3/16” & ¼” smooth plate steel, recessed light boxes with 6 oval seal beam lights, and rear hitch with standard height or optional 4” drop for tall profile truck. Aluminum tread scuff plates in all step-up areas. 2 recessed toolboxes in front of wheels on all models -except 7’. Fully welded seams.

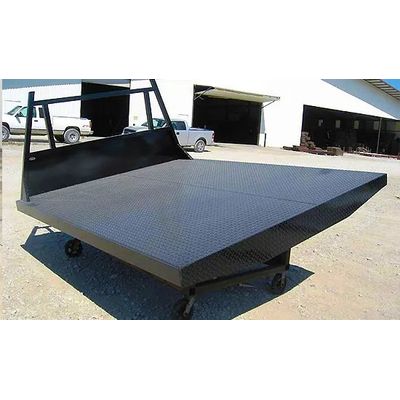

FEATURES: 4” channel runners. 1 ½” x 3” cross members. 1/8” tread plate floor. 4” channel outside rail. 2” x 2” open headache rack.
