Jain Irrigation Systems Ltd products

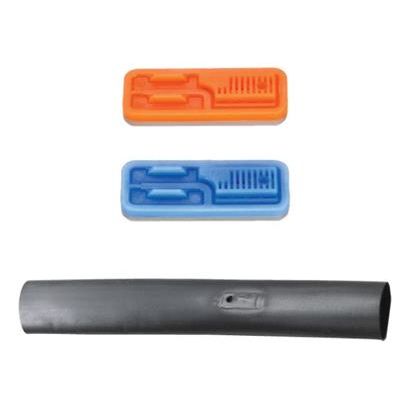

Thick-Walled Pressure Compensating Drippers; State-of-the-art cylindrical PC (Pressure- Compensating) dripper ensures highest durability and excellent performance.

Thick-Walled Pressure Compensating Drippers; State-of-the-art cylindrical PC (Pressure- Compensating) dripper ensures highest durability and excellent performance.

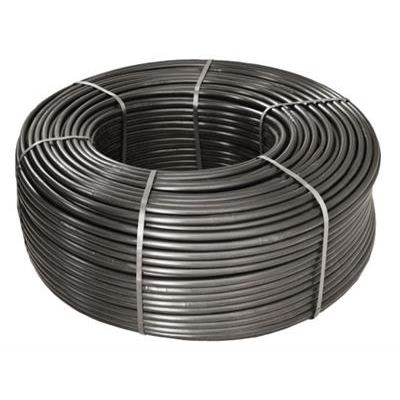

AmnonDrip PC, CNL & PC AS THICK-WALLED PC FLAT DRIPLINE. Innovative, pressure-compensating (PC), dripline with special anti-syphon (AS). and compensating non- leakage (CNL) models. Cascade labyrinth feature incorporated in all drippers.

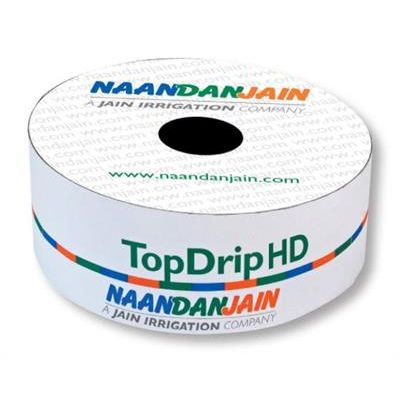

Innovative, cost effective, heavy duty pressure-compensating (PC) and antisyphon (PC AS) thick-walled dripline models based on the cascade labyrinth.

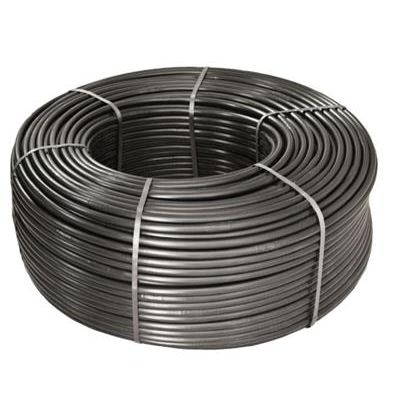

Combines the advantages of a PC dripper with an attractive economical solution; Ideal solution for irrigation in topographically challenging terrain, or where long laterals are required. For accurate irrigation of orchards, open field crops and greenhouses.

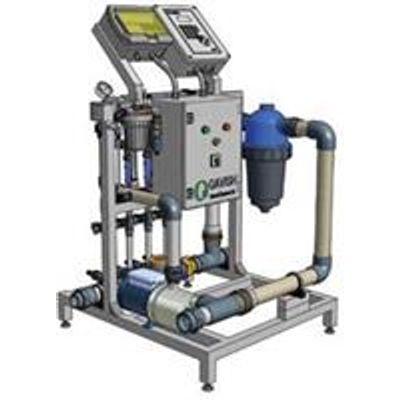

Irrigation flow up to 25 m3/hour. Activates 1 to 10 valves. Computerized operation – local or using PC. EC and pH control. 15 Irrigation Programs. 10 Fertilization Programs. 3 to 4 Venturi Injectors, 350 to 400 Liter/hour. Stainless Steel Booster Pump. Visual flow Meter for each Injector. Hydrometer and Control Filter.

Spirit technical data: Controller housing - Constructed from PVC (IP65). Stand-alone operation and / or PC operated. Models available with or without keyboard and LCD display. Spirit can be easily connected to a network using RS-485. Modular extension units provide unlimited application. Protected against lightening.

Outputs: 16 outputs of 24 VAC, Analog inputs: Up to 8 Analog inputs, 4-20 mA, 1-5 VDC, Resolution: 8 bits (0.4%). Digital inputs/counters: Up to 16 digital inputs/counters, 12-24 VDC.

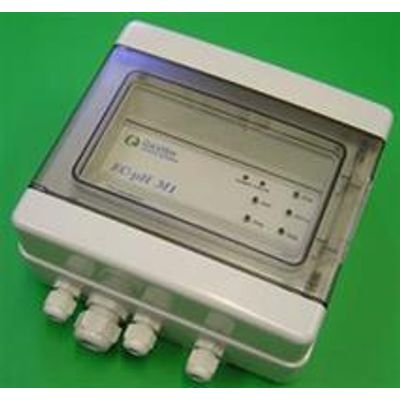

EC/pH M1: Power Supply 24VAC +/-20%, 50/60Hz, 5W, Working temperature environment 0* to 50*C. EC: Range 0-10mS, Output 4 to 20mA (0-10mS), Max load 300 Ohm, Nonlinearity (0-10mS) 0.02, Accuracy 0.04 +/-2% from value EC, Measurement Frequency 1350 +/- 50 Hz, Temperature Compensation Element (inside of an Electrode EC)–PT100.

Irrigation flow up to 150 m3/hour. Activates 1 to 300 valves. Computerized operation – local or using PC. EC and pH control. 35 Irrigation Programs. 10 Fertilization Programs. 3 to 6 Venturi Injectors, 350 to 1000 Liter/hour. Stainless Steel Booster Pump. Fertilizer Counter for each Injector. Visual flow Meter for each Injector. Electric surge protection for too high/low voltage.
