Products and Equipment from Kotte Landtechnik GmbH & Co. KG

GARANT - Model PT 18.500 Poly - Two-axle Slurry Tankers

Drawbar suspension, lower hitch with ball button system Scharmüller with a nose weight of 3 t.Rotary piston pump Vogelsang with rotacut 10000 (optional).Parabolic suspension or air suspension in conjunction with original BPW axles up to 60 km/h.Heart-shaped tank up of polyester, support with big wheel salient.Dead load with rotary piston pump Vogelsang Profi 6000, rotacut 10000, parabolic suspension and tyres Alliance 750/60 R 30,5 AL Profil 390:...

GARANT - Model VT 14.000 - Two-axle Slurry Tankers

Compressor Jurop with an air capacity of 11,000 litres. Filling accelerator NW 200 under the tank with the possibility to suck right and left via tee (optional). Original BPW Boogie steering axle unit with square axle 150x150 and brake drum 410x180, up to 60 km/h. Wide angle cardan shaft original Walterscheid with sleeve base lubrication and shear bolt. Solid supporting winch original Jost

GARANT - Model VT 16.700 - Two-axle Slurry Tankers

4-point preparation at the rear of the tank (optional). Hydraulic great capacity piston gate valve rear. Compact design by diameter of 1,900 mm. Mudguards and underride protection for 40 km/h.

GARANT - Model 18.500 - Two-axle Slurry Tankers

Lower hitch with ball button system Scharmüller with a nose weight of 3 or 4 t (optional). Power steering in conjunction with BPW power steering axle GSL, including preparation of the axle for a tyre pressure control unit. Parabolic suspension or air suspension in conjunction with original BPW axles up to 60 km/h. KTL coating instead of galvanizing, colouring at customer's option (optional)

Model TSA 28.000 V - Tank Semitrailer and Vacuum Tank Trailer

Tank and frame up of aluminium, reduction of weight compared to steel design about 2 t.Bpw brake axle with drum or disc brake.Rear axle as passive steering (optional).Front or rear axle as lifting axle (optional).Filling via rotary piston pump or vacuum compressor with filling accelerator nw 200.Aluminium hose cases (optional)

GARANT - Model VTA 23 - Tank Semitrailer and Vacuum Tank Trailer

Original BPW axles with parabolic suspension. Ball turnable with center pivot plate. Rear axle as passive steering (optional). Air suspension (optional). Filling via vacuum compressor with filling accelerator NW 200 front under the tank. Outlet lugs rear right and left below the manhole (optional). Type 80 km/h with ABS 24 V and AGS (optional)

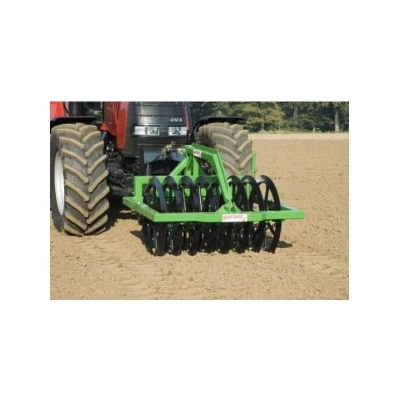

Model FP 8-900 - Front Mounted Furrow Presses

Front mounted furrow press FP 8-900 with a working width of 1,45 m

Model FP 16-900 - Front Mounted Furrow Presses

Front mounted furrow press FP 16-900 with a working width of 3,00 m

Front Mounted Furrow Presses

Front mounted furrow press FP 27-900 with a working width of 5,00 m

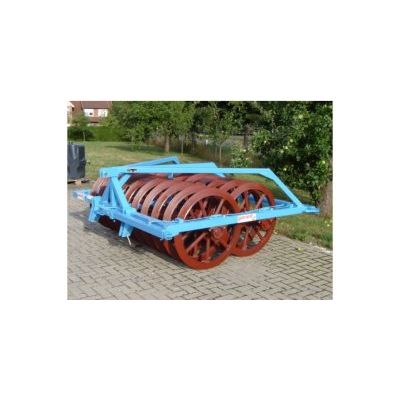

Twin Furrow Presses

Twin-furrow press DPA 10/11-900 with a working width of 2,55 m

Front Mounted Packer

Front mounted tyre packer FRP 145 with a working width of 1,45 m

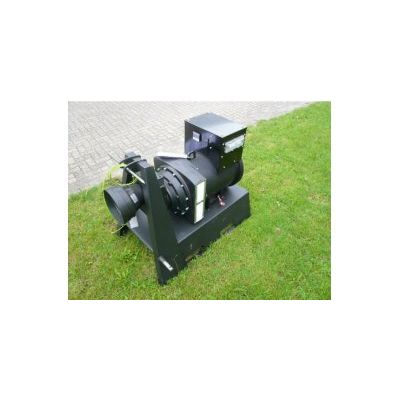

Tractor Driven Generators

4-pin synchronous generator with transmission drive (1.500 rpm) for cardan shaft drive .input speed 430 rpm .voltmeter, amperemeter .frequency display .ground fault circuit interrupter 30 ma .elektronical controlled .2 power outlets with safety fuse for 230 v and 400 v .protection class ip44 .3-point transport frame . Design in 12,5 kva, 25,0 kva, 42,0 kva, 63,0 kva and 80,0 kva .

Street Cleaner

Solid cleaner box (galvanized or coated). Tractor 3-point cat. I and ii for front and rear mount. With inclination. Tray, mechanical dischargeable.Hydraulic drive. Hydraulic motor with lateral transmission drive (chain). 4 wheels, 2 wheels height adjustable with spindle. Sweeper roller ø 570 mm, polypropylene. Working widths 1,50 m, 1,80 m and 2,50 m
