Kutlusan Poultry Equipment Co. Inc products

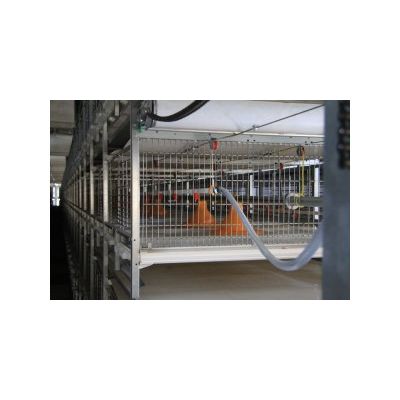

Each battery unit is supported by specially designed robust leg structures that are placed 60 cm apart along the entire row. Each section has a length of 2,4 m. The entire cage system has a unique modular structure which makes it possible to build from 3-tier to 8-tier rows without grid floor (catwalk). Total length of each row can be as long as 150 m.

All used metal structures are hot deep galvanized materials. Length of the cage 246 cm and height of the cage is 82,5 cm. The height of the cages can be change from 3 tier height 271 cm to 6 tier height 545 cm. There is special perforated plastic drawers is using inside cages. There are 4 pieces drawers for each cage. When the take out time, you can easily slide them out then all the broilers drop to manure belts. Besides it is proved that there is helping to prevent the harms which is coming from ammonia, also helps to ventilation system and manure cleaning.

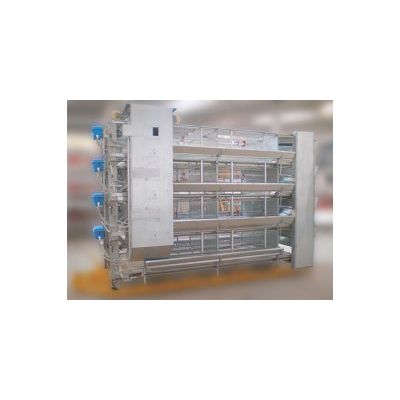

The mainframe construction is supported with U profile legs, which are placed each 1,23 m. And also one cage is one section. The cage construction gives the possibility because of its modular form to build up from 3 tiers to 8 tiers without grid floor (catwalk) and until 150 m lenght. It is easy to understand from the name that the system is designed for maximum uniformity.

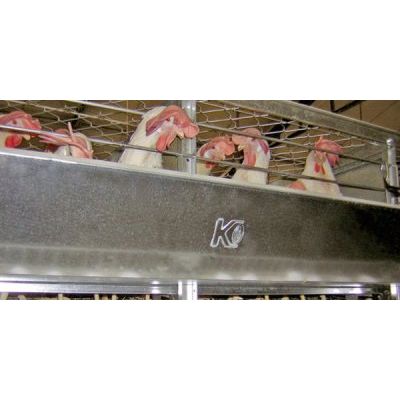

Consists of the cages that has 120 cm of feed trough, 64 cm of depth and 68 cm between two feed gutter height. Total floor area is 30720 cm2 and 72 hens to be placed inside in Enrichable system or 40 hens in Enriched system. Each section consist of 4 cages and seperation wire walls are used between cages. The conversion to the enriched cage is made by removing the seperation wire walls and by adding nesting boxes and perch to the system. The main frame construction support with strong U profile legs, which are placed each 60 cm and the battery has the sections 2,4 m. The cage construction gives the possibility because of it’s modular form to build up from 3 tiers to 12 tiers and until 250 m length.

The length of each section is 4,60 m and the mainframe construction is supported with strong "U profile" legs, which are placed each 1,15 cm The cage construction gives the possibility because of its modular form to build up from 2 tiers to 5 tiers without grid floor (catwalk) and until 150 m length. The cage itself designed by professional engineers for high efficient production and more comfort for animals.

Automatic Nest System provides the laying activities to be happen on maximum level. The sidewalls of the nest system made from "Plywood" to submit to the layers for more naturalness and more warm place. Also the material "Astroturf" for the bottom of the nest gives more comfort and naturalness to the females according to the world wide well known quality. Because of all this specialities, the percentage of the laying in the nests is increased to the highest level. According to this situation, the dirty egg amount is decreased to the lowest level. That`s why the rate of the hatchability as follows on the highest level.

As kutlusan poultry co, we are the Turkish agent of Staalkat (Sanovo Technology Netherlands) company. We are always offering the best possible grading and packing solutions to the customers in the scope of their turn key poultry projects by using the grading and packing machines designed and produced by Staalkat company. Please do not hesitate to contact us. We would be pleased to present our tailor made offer if you could lnform us about the details of your project.

While preparing the machine for shipment, up to 8 different print texts are uploaded to the machine. If the customer wants to change any print text later, he needs to have Software and Communitacion Cable to be able to do that.

While preparing the machine for shipment, up to 8 different print texts are uploaded to the machine. If the customer wants to change any print text later, he needs to have Software and Communitacion Cable to be able to do that.

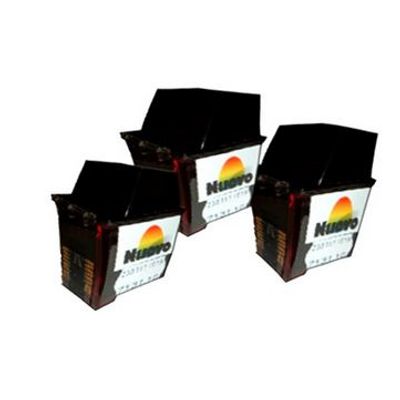

Our egg-printing ink cartridges are certificated and appropriate to the food codexes. They do not contain harmful substances. Washable, not washable and heat resistant options can be chosen with special orders. Red, green, blue and black color options are available.
