The group of harrow tines represents the smallest size of the spring tines. They are used in the fine tillage. They differ in one part of the installation height and on the other hand in the geometry. The material cross section is mostly 25 x 8 mm; some prongs have a cross section of 32 x 10. The installation height is 250-340 mm.

Cultivator tines are the original application possibility of spring tines. Take an intermediate position between the Schwergrubber which is mainly used for stubble cultivation and is equipped with rigid tines or wholesale spring tines and harrows for a seedbed. They are used on the one hand in second gear of stubble cultivation and on the other in the spring for stretching in the fall deeply processed by plow or cultivator soil. In addition to loosening the soil mechanical weed control is another important application-purpose.

Great spring tines are used in the spring for the first raising of the soil after hibernation and in summer and autumn for the slight stubble cultivation .

Tines are secured by means of clamping plates on the device frame. There is mounting in two different embodiments of a square tube. Our design wraps around the frame profile completely at the rear and top. At the front, the two clamp down curved lobes which rest on the frame section. There is another variant in which is applied to the front of the form-fit by only two beads which only at the front, upper radius enclose the frame tube. Both solutions are equivalent to the case of a correct installation, as for the safety of the compound of the adhesion between the surfaces used for clamping connection is fully sufficient.

Spring type tools for optimal soil and seedbed preparation. Our spring tines and reversible points are the result of a decade long research and development. Combined with production know-how and technical reliability they result in a wide production range of best quality products in the industry. PERFECT FIT, LONG LASTING and TOP SURFACE are characteristics which result in our claim for perfection.

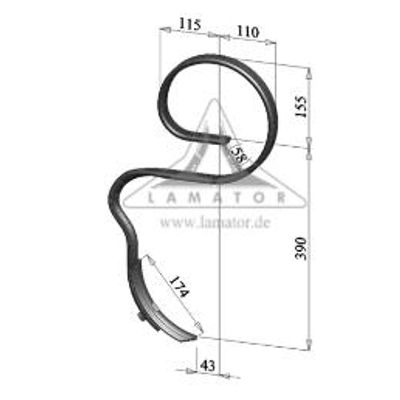

Spring Tine Standard 32 x 10 x 560 with point 40 x 6 x 200.

Spring Tine 32 x 10 Standardwith point 40 x 6 x 215.

Easy-Flow Spring Tine 32 x 10 x 560. RAU with point 40 x 6 x 199.

Heavy Duty Tine 32 x 12 x 560 with point 40 x 6 x 200.

Uni Spring Tine 32 x 12 x 500 slightly bent. Doublet Record with point 40 x 6 x 215.
