Lambton Conveyor Ltd. products

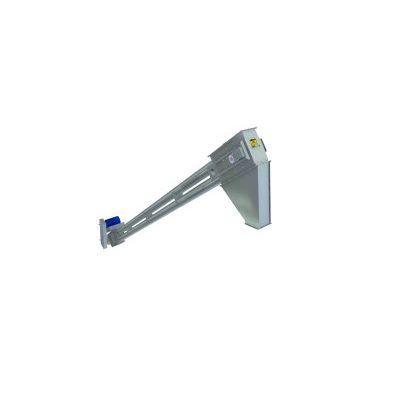

The Grain Cannon is versatile chain conveyor that utilizes a galvanized tube housing to gently convey material horizontally or at angles of up to 60 degrees. This equipment is often used in applications that would have traditionally required an auger or drag conveyor. The benefit over augers would be lower horsepower requirements and less damage to the material being conveyed. The Grain Cannon can also span 30 feet, eliminating the need for catwalks that would be required with traditional chain conveyors.

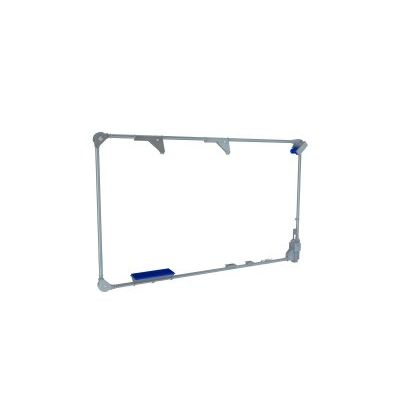

The Grain Loop combines receiving, conveying, bin unloading and loadout into one convenient and cost effective system. Currently available in sizes 6″ – 12″ diameter,  2,000BPH – 10,000BPH.

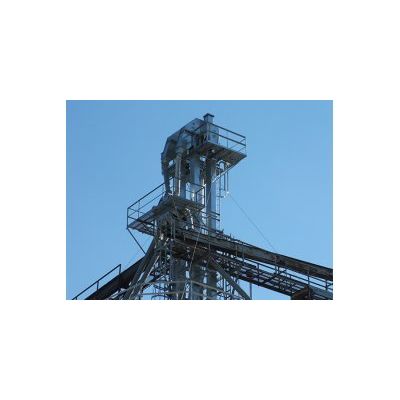

Lambton standard galvanized bucket elevators range in capacity from 1,500 to 10,000 bushels per hour. Lambton bucket elevators are CAD-designed and CNC produced to ensure end-to-end consistency and precision every time. We offer a full range of options and accessories to fully customize your equipment for your individual application. Lambton’s experienced design team will work with you and your local Lambton representative to develop the ideal solution for your new or existing grain-handling facility.

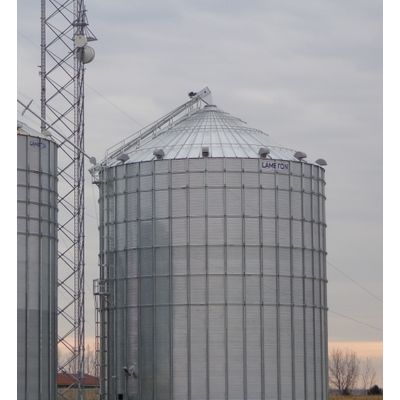

All Lambton-built grain bins include: Standard construction provides G115 (350 grams/M2 of zinc) galvanized steel with 28% more zinc protection than traditional bins. Larger 44” sidewall sheets with 4” corrugation improves grain flow, increases vertical strength and reduces build time. Access doors with 44″ or 66″ opening with bin step as standard. A 32.5o roof angle is standard for both structured and non-structured models with peak load capacities engineered as needed from 4 K to 30 K. Farm-stiffened grain bins feature an innovative swedged joint that eliminates stiffener splices and reduces build costs. Commercial bins use Lambton’s robust stiffener for additional strength and stability on taller and larger bin structures. All designs stress tested with accurate calculations for wind, rooftop equipment loads and snow loads.

Lambton made its first mark on the global grain-handling industry as a top manufacturer of dependable, long-serving elevator and conveyor equipment. Lambton bucket elevators are CAD-designed and CNC produced to ensure end-to-end consistency and precision every time. We offer a full range of options and accessories to fully customize your equipment for your individual application. Lambton’s experienced design team will work with you and your local Lambton representative to develop the ideal solution for your new or existing grain-handling facility.

Head Features: Computer aided modular bolt together design. CNC manufactured. 10-8-5 gauge standard galvanized construction. Heavy duty pillow block bearings. Heavy duty drive sprocket. Removable inspection cover. Dust seals.

Head Features: Computer aided modular bolt together design. CNC manufactured. 10-8-5 gauge standard galvanized construction. Heavy duty pillow block bearings. Heavy duty drive sprocket. Removable inspection cover. Dust seals.

The GRAIN CANNON is a versatile chain conveyor that utilizes a galvanized tube housing to gently convey material horizontally or at  angles of up to 60°.

Receiving, Conveying, bin unloading and load out all in one convenient and cost-effective system. Use the GRAIN LOOP to update an existing site or integrate the system into new development. The most common wear point of the system is the transitions on the corners. Our unique split transitions allow for quick and easy replacement without having to break the chain.
