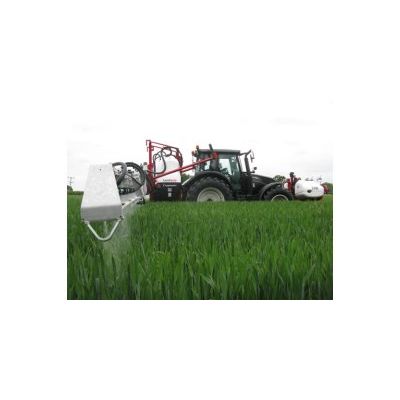

Landquip’s Alu-light booms lend themselves to a mounted sprayer. The aluminium boom makes the sprayer lighter therefore reducing the lift capacity and size of the tractor required. The weight saving from the boom also provides good weight distribution especially when used in combination with a Landquip Vision front tank. Landquip offers two different mounted sprayers - the Cropmaster and the Condor. The Cropmaster has a traditional forward folding ‘gullwing’ boom which folds alongside the tractor cab for transport. The Condor has a rear narrow 2.5 metre fold boom which folds in behind the tank for quick, easy on road transportation. The rear folding boom configuration enables tractors with large/wide cabs to be considered as a sprayer tractor.

The Landquip Condor mounted sprayer is a great alternative to the traditional forward folding ‘gullwing’ boom. The Condor mounted sprayer has a rear narrow 2.5 metre folding boom which folds away behind the tank making the whole sprayer more compact and also allowing faster transport speeds. The Condor shares a tank and other components with the Landquip Cropmaster mounted sprayer making spares readily available. Those tank sizes range from 1300 to 1900 litres. The Alu-light rear folding boom is available from 18 to 30 metres. When used in combination with a Landquip Vision Front Tank a total capacity of 3800 litres can be reached while maintaining good weight distribution.

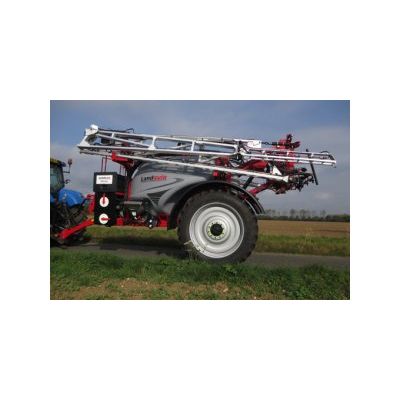

The Landquip Electrac  is our compact trailed sprayer with tank sizes of either 2500 or 3000 litres and bi-fold booms up to 30 metres. The Electrac is a well established model, with the first machines built over 20 years ago. 2014 has seen the introduction of the all new Electrac with a new polyethylene tank which has a low centre of gravity and is easy to wash out. The Electrac has a twin ram steering drawbar which ensures that the sprayer tracks directly in line  with the tractor’s wheels to minimise crop damage. The Electrac can also be fitted with a Scharmuller Euro high hitch  instead of a standard drawbar to maximise clearance (if the tractor is compatible).

The Landquip Intrac trailed sprayer is one of Landquip’s most popular sprayers suited to the higher acreage user with tank sizes of 3600, 4200, 5200 or 6000 litre tanks and 24 to 44 metre bi-fold or tri-fold Alu-light booms. The Intrac has a heavy duty  twin ram steering axle ensuring that the sprayer tracks directly in line with the tractor’s wheels to minimise crop damage. The Intrac can also be fitted with a Scharmuller Euro high hitch instead of a standard drawbar to maximise clearance (if the tractor is compatible).

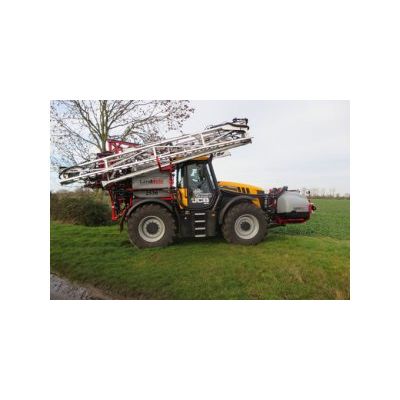

The JCB Fastrac offers a very good platform on which to base a sprayer pack. The vehicle’s suspension allows the tractor to travel at high speed over rough ground while maintaining a stable platform for the boom to apply spray accurately and evenly. The Landquip demountable sprayer can be removed within 15 minutes allowing the Fastrac to be used for other purposes at short notice. Landquip demount sprayers can be built for 2000, 3000 or 4000 series Fastracs and have tank options of 2000 or 2500 litres. Landquip also offer boom widths up to 36 metres due to the weight saving of the aluminium booms, something which other manufacturers cannot offer for such a vehicle. High capacities can also be reached when used in combination with a Landquip Vision Front Tank. With a 2500 litre rear tank and 1900 litre front tank a total capacity of 4400 litres is achieved while also maintaining superb weight distribution.

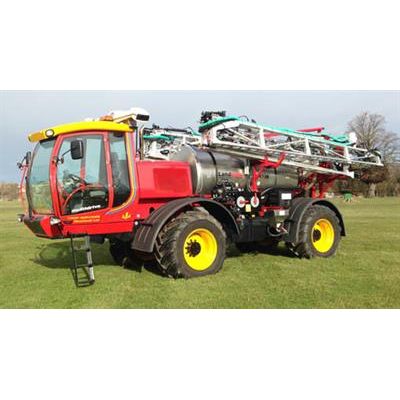

    Using a system tractor such as the Multidrive allows the user to have all the benefits of a self propelled sprayer whilst being able to use the tractor for other applications, simply by taking off the sprayer pack. The Multidrive demount sprayer pack is fully approved by Multidrive and comes into its own on steep and hilly ground, where the mechanical drive and long wheelbase provide a fantastic platform to maintain even and accurate spraying. Being a mechanically driven unit, the Multidrive can also travel faster on the road allowing minimum transport times and more spraying hours. Landquip Multidrive demount sprayers can be built for both lengths of wheelbase and have 3000 to 5000 litre stainless steel cylindrical tanks. Alu-light booms from 18-36 metres are available which also maintain superb weight distribution.


The stainless steel tank is perfectly positioned to offer even weight distribution  - 50/50 on each axle - a first for the Forward Control Multidrive and making it a `go anywhere` machine.  The narrow profile and cylindrical shape of the tank gives a low centre of gravity and dissipates liquid surge making the machine stable in the field (especially on side hills) and safe on the road.  Thanks to its shape, emptying is more efficient into a centrally located sump.  Available tank capacities are:-  4000, 4500 and 5000 litres. Fast, efficient chemical induction is conveniently carried out by the use of a large 50 litre capacity stainless steel chemical hopper equipped with twin can wash units.  The hopper is automatically washed internally on closure of the side folding lid.
