Mainardi A. srl products

Working width : 7 m net. Transport width : 2.50 m. Transport height : 1400 kg. Weight : max 7 ha/h. Min. power required : 40 hp.

3-point lift attachment or quick triangle type "Accord" and front feeler wheel (optional).

3-point lift attachment or quick triangle type "Accord" and front feeler wheel (optional).

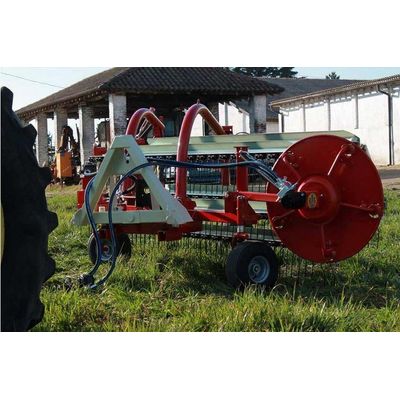

These Rakes effectively solve the work in the most demanding conditions. The 4 combs, thanks to the flexible teeth, carefully rake the forage keeping it soft and clean, while appropriate joints balance the work tool to the irregularities of the ground, preserving the machine from breakages, and the grass cover from damage. Connect the machine to the third point of the tractor with a chain that, left loose, allows a regular passage over the bumps and depressions.

The main feature of this machine is the large working capacity guaranteed by the collection width and the high speed of advancement. The traditional comb raking system is the most effective for the best and most complete collection of forage, which remains soft, clean and whole.

This model combines the effectiveness and accuracy of comb raking with the absence of wheels or other equipment in front of the combs, so as not to damage the most delicate forage.

The triple hydraulic rake mod.1498 allows for accurate, abundant and fast harvesting, forming a soft and well-ventilated lateral windrow. The comb rakes keep the forage intact and clean, more than any other system; the hydraulic drive increases the yield.

Rotors : 4. Arms : 16. Working width : 3.60 m. Transport width : 2.10 m. Tires : 3.50-8. Weight : 236 kg.

Rotors : 4. Arms : 24. Working width : 4.40 m. Transport width : 2.50 m. Transport height : 2.45 m. Tires : 15x6-6.00-6. Weight mod.882 : Kg. 288. Weight mod.882i : Kg. 315. o installated.

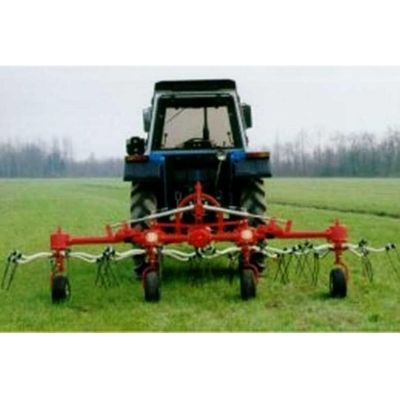

Rotors: 2. Arms: 12. Working width: 2.40 m. Transport width: 1.30 m. Transport height: 2.70 m. Tires: 3.50-8. Weight: 135 kg.
