Marechalle Pesage products

Reinforced construction with 50 x 50 steel tube. Anti-skid “teardrop” plate floor. Sheet metal sides, height 1 m. Front and back doors with double leaf. Three-point linkage to be hooked by tractor

3 possible ways. 2 cords to pull to make the doors go in one direction or another. Long control arm to be able to maneuver from a distance.

Hydraulic head lift. > Glue and care kit for hooves. > Barrier with folding man passage inside the cage (incompatible with weighing). > Weighing system (incompatible with barriers).

Angle frame adaptable to all of our cattle crushes. Double beam indicator with stainless steel rulers mounted on a removable case. Weighing capacity: 1 500 kg / 1 kg. Resistance to violent movements of animals. Longevity of the weighing system. Easy to move through the passage of forks.

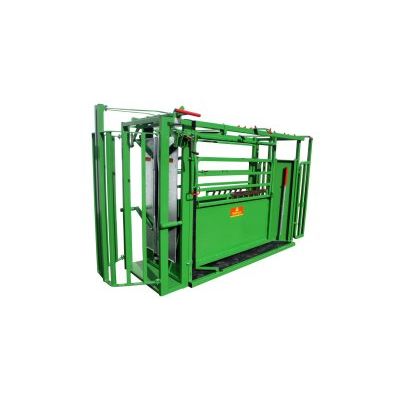

Outer frame in 50 x 50 steel tube. Inner cage in 40 x 40 tube. Anti-skid “teardrop” plate deck lowered by 10 cm at ground level. Sheet metal sides, height 0,80 m.   Overhead weighing mechanism avoiding all stains. Hardened steel knives with 4 bits, easily interchangeable. Double beam indicator, stainless steel rulers, with anti-beam, mounted in a protective box with folding door.  Capacity of weighing : 1500 kg / 1 kg.  Automatic lock of the weighing mechanism by a lever protecting knives during transfers.  PM 83 front yoke gate with central closing and safety basket, very silent.  2 side doors at the front for easy access to the animal. Automatic anti-backing system with ratchets and bar. PM 83 rear door with silent central opening, without safety basket. 3-point linkage on both sides of the cage for transfers

Light crush. Reinforced frame. Easy to move with wheels to be able to bring to the self locks. Easy handling, the animal is less stressed. Hoof trimming for front legs possible with option of wood supports with rope. Product galvanized only.

6 motors of 1300 Watts/motor, and 500 kg of lift. 2 motors for front legs (1 on each side), 2 motors for the ventral strap, 1 motor for back legs, and 1 motor to operate the pendulum backstop. Auto-locking front door PM 85 with adjustable width of the shutters. Wide and curved support for front legs for good posture and total immobilization. Back legs guides to be held into the backstop. Soundproof and anti-slipping rubber mat. Ground attachments. Connection 220 V. Product galvanized only.
