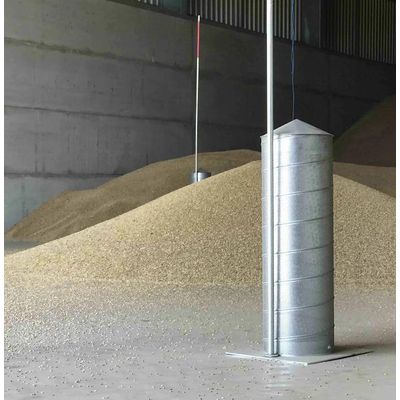

For grain stored at c.3m (10′) with surcharging up to c.4.5m in the middle of the store. Allow one P2 pedestal per 6m x 6m (20′ x 20′) area – 3m from the walls and 6m between each one. In high moisture grain (18% plus) put them closer together. Spacings apply equally to all. Basic height of 10ft (3m). Graphic on the right illustrates the P2 Pedestal with a 3ft (0.9m) extension and connector.
For grain stored at c.4.5m (15′) and up to 12m deep. Allow one P3 Pedestal per 10m x 10m (30′ x 30′) area – 5m from the walls and 10m between them. In high moisture grain put them closer together but no deeper than 4.5m. Spacings apply equally to all crops. Basic height of 16ft (4.8m). Graphic on the right illustrates the P3 Pedestal with a 3ft (0.9m) extension and connector.
