Mechanical Botanical Ltd products

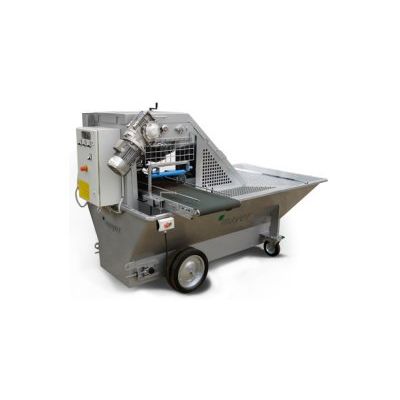

The Mayer Big Bale Breaker has been designed for reliability and many years hard service, with safety in mind and to CE specifications. The bale breaker works as follows: the operator should remove the packaging before fork-lifting the bale into the machine. A retaining bracket in the hopper holds the compost bales pallet. The safety door is shut and the bale is then rotated sideways to allow the elevator chain and flight to pull the compost up the incline to the discharge area. On the way, the compost passes through the crumbling unit and is aerated. The compost is then discharged, as and when the built-in sensor indicates that more material is required in the hopper. The Mayer Big Bale Breaker discharges into all the potting machines and tray fillers that we offer.

The Mayer ‘Perfection’ Trayfiller is built by an established company with a reputation for supplying high-quality horticultural machinery. It is the latest in their range of filling machines, and comes with all the features you would expect from a Mayer machine. The Trayfiller boasts variable speed elevator, conveyor and vibrator, offering the professional grower flexibility for filling all types of trays, from a small cell tray (e.g. ‘576’) to the larger pot-shuttle trays. Another standard feature is the attachment for filling hanging baskets and large pots, making this new machine very adaptable. Designed and constructed using state-of-the-art equipment, the ‘Perfection’ Trayfiller is built for many years reliable service and to CE specification.

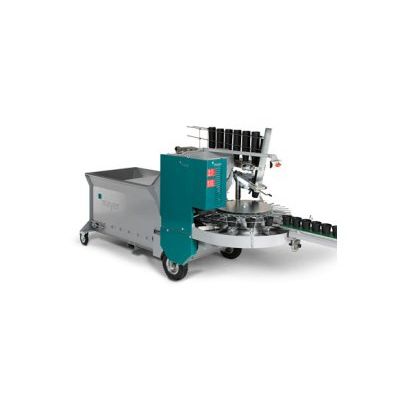

The Mayer range of potting machines is well established within the British horticultural industry and offers machines to pot from 7cm to 15 litre pots. The machines are designed and constructed at the Mayer factory with state-of-the-art equipment, to CE specification and to give many years reliable service. Mayer potting machines offer high performance with quality filling of round or square pots of all sizes. All the potting machines have central pot size adjustment by means of one handle for fast pot range changeover, plus an ultra-smooth movement from pot to pot for ease of potting, even at high speed. The Mayer 1010 Low Tower T16 A 16-station turntable with a 5 - 22cm pot size range. A high capacity machine with a potting rate of 900 - 4500 pots per hour, fitted with a 2-speed elevator and 1.5 cubic metre hopper as standard. The option of an increased hopper capacity to 2.75 cubic metres is available if required.

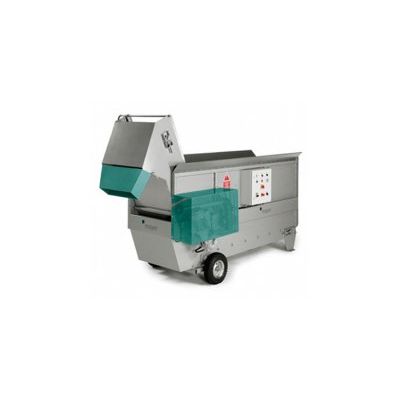

One of the well-established machines from their range - offers great flexibility, good design and quality mixing; keeping the structure of the compost is one of the main aims of the machine’s design. Loading from a low level and discharging at a high level by means of an elevator makes this machine an ideal partner to all makes of potting machine and tray filler, or even hand potting benches. Loading the hopper is open to choice: it is feasible to load the raw material by hand, otherwise, for larger scale operations, by using a front loader over the hopper sides. Bulk bags may also be an option, hung over the side of the conveyor by a forklift, or there is the alternative of a powered input conveyor if required. The mixing times and the watering pipe may be pre-set for accuracy and consistency of the final mix time after time. After mixing, the elevator moves to the discharge position and the compost can be used on a call-off basis or discharged in a matter of minutes.

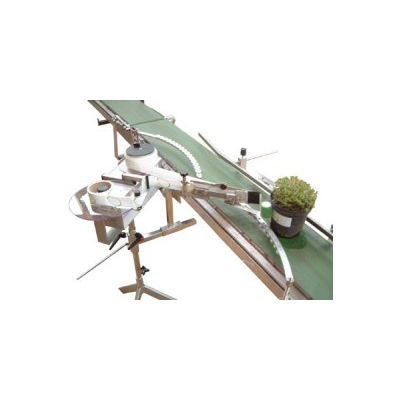

The Willburg standard Apply system with its unique beak and roller apply unit, suits the majority of labels on a linear roll. Its variable speed enables you to match the input speed to the label apply speed for great results. A simple medium with great flexibility for round or square pots and trays, this unit is a stand-alone system with full adjustment stand.
