Metaltech Sp. z o.o. products

Technical carrying capacity (kg): 8 000. Top speed (km/h): 40. Own mass (kg): 3305. Number of axles: 2. Standard suspension type: Parabolic springs. Standard wheel size: 385/55 R22,5. Maximum wheel size: 385/55 R22,5. Body length (mm): 4500. Body height (mm): 500+500. Body width (mm): 2420. Volumetric capacity without/with extension (m3): 10,9. Volumetric capacity with third criss-cross extension (m3): 19,6. Total length (mm): 7040. Total width (mm) : 2550. Loading height - standard wheels (mm): 1326. Minimum power demand (KM): 63.

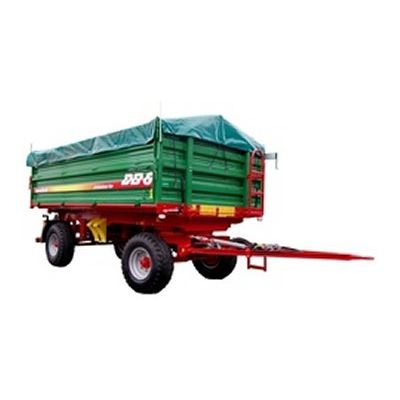

Trailers type DB are designed for transportation of agricultural products, especially loose materials like corn and grain. Bodies of trailers are made from strong, rolled profiles. Construction of body enables to open side walls by central lock from each side. Three way tipping system makes unloading comfortable, efficient and safe. Shipping window in the back wall enables the line unloading. The chief asset of DB trailers is high leaktightness of bodies that allows transportation of loose materials without any further packing

Double-section pneumatic brake system, emergency parking brake, central lock, parabolic springs, wheels 11,5/80-15,3, 12V electric installation, tipping cylinder with safety valve which stops oil flow at maximum angle (50o to the back, 45o to each side), small window at the back with unloading shute, steps inside loading box, electric, hydraulic and pneumatic outlets for second trailer, safety traingle, standard color: RAL 9004 and 6001, floor steel thickness – 4mm, wall thickness – 2mm, drawbar hitch – 40mm, rear bumper as protection of tail lights, chain inside loading box, extension, wall profiles made by BOWA, rear axle mudgurads, wedges – 2 pcs.

Double-acting brake system with automatic adjustement of braking force. Made by Knorr Bremse, emergency parking brake, central lock, holder for belt tightening on the platform side – 4 pcs., parabolic springs, two brake cilinders of each axle, wheels 385/55 R22,5, 12V electric installation, tipping cylinder with safety valve which stops oil flow at maximum angle (50o to the back, 45o to each side), small window at the back with unloading shute, steps inside loading box, electric, hydraulic and pneumatic outlets for second trailer, safety traingle, standard color: RAL 3002 and 6001, floor steel thickness – 4mm, wall thickness – 2,5mm, closed profile of frame, shot blasted with underpaint layer and red RAL3002 paint, drawbar hitch – 40mm, rear bumper as protection of tail lights, chain inside loading box, extension, wall profiles made by BOWA, rear axle mudgurads, wedges – 2 pcs.

Pneumatic emergency brake, road-allowed brake installation made by Knorr Bremse, central lock, parabolic springs, NEW tires in standard version, wheels 385/65 R22,5 NEU, two brake cilinders of each axle, full LED lighting, 12/24 electric installation, tipping cylinder with safety valve which stops oil flow at maximum angle (50o to the back, 45o to each side), small window at the back with unloading shute, steps inside loading box, electric, hydraulic and pneumatic outlets for second trailer, safety traingle, standard color: RAL 3002 and 6001, floor steel thickness – 4mm, wall thickness – 2,5mm, closed profile of frame, shot blasted with underpaint layer and red RAL3002 paint, drawbar hitch – 40mm, rear bumper as protection of tail lights, chain inside loading box, extension, wall profiles made by BOWA, rear axle mudgurads, wedges – 2 pcs.

Double-acting brake system with automatic adjustement of braking force. Made by Knorr Bremse emergency parking brake central lock parabolic springs two brake cilinders of each axle wheels 385/65 R22,5 hydraulic leg 12V electric installation tipping cylinder with safety valve which stops oil flow at maximum angle (50o to the back, 45o to each side) small window at the back with unloading shute steps inside loading box electric, hydraulic and pneumatic outlets for second trailer safety traingle standard color: RAL 9004 and 6001 floor steel thickness – 4mm, wall thickness – 2mm drawbar hitch – 50mm rear bumper as protection of tail lights chain inside loading box extension wall profiles made by BOWA rear axle mudgurads wedges – 2 pcs.

Technical carrying capacity (kg): 14 000. Permissible total wight (kg): 18 000. Allowable total weight (technically (kg): 18 600. Top speed (km/h): 40. Number of axles: 2. Standard suspension type: parabolic springs. Standard wheel size: 385/65 r22,5. Maximum wheel size: 560/45 r22,5. Body length (mm): 5020. Body height (mm): 1600. Body width (mm): 2420. Volumetric capacity without/with extension (m3): 19. Total length (mm): 7470. Total width (mm) : 2550. Loading height - standard wheels (mm): 1400. Minimum power demand (km): 110.

Double-acting brake system with automatic adjustement of braking force. Made by Knorr Bremse, emergency parking brake, parabolic springs, two brake cilinders of each axle, wheels 385/65 R22,5, window on the front wall of the loading box, hydraulic leg, extension, 12V electric installation, tipping cylinder with safety valve which stops oil flow at maximum angle (50o to the side), small window at the back with unloading shute, steps inside loading box, hydraulically lifted tailgate, electric, hydraulic and pneumatic outlets for second trailer, safety traingle, standard color: RAL 6001, closed profile of frame, shot blasted with underpaint layer and red RAL 9004 paint, drawbar hitch – 50mm-  to couple with lower hitch of the tractor, rear bumper as protection of tail lights, rear axle mudgurads, wedges – 2 pcs.

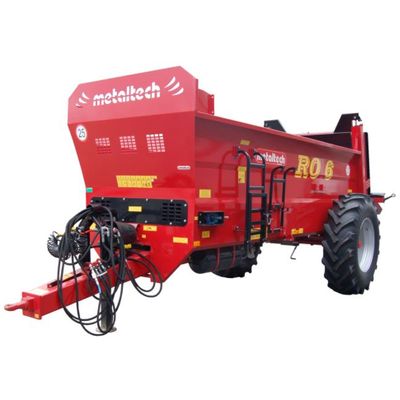

Technical carrying capacity (kg): 11 000. Capacity (kg): 8 000. Manure volume (m3): 11. Loading boxvolume (m3): 8. Top speed (km/h): 25, 4-10. Pto: 1000. Own mass (kg): 4900. Number of axles: 1. Standard wheel size: 18,4r38. Drawbar suspension: springs. Hydraulic support leg: +. Body length (mm): 4650. Body height (mm): 1100 + (350). Body width (mm): 1500-2000. Total width (mm) : 2600. Total length (mm): 7275. Total height (mm): 2950. Brakes type : pneumatic. Power demand (km): 90. Wall thickness (mm): 4. Floor thickness (mm): 6. Loading height - standard wheels (mm): 2350. Spread width - vertical adapter (m): 8-12. Spread width - horizontal adapter (m): 12-24.

Technical carrying capacity (kg): 13 000. Volumetic capacity (m3): 40. Pto: 1000. Number of axles: 2. Standard suspension type: parabolic springs. Standard wheel size: 600/55 r26,5. Available suspension types: hydraulic. Hydraulic support leg: +. Body length (mm): 8210. Body height (mm): 2050. Body width (mm): 2340. Total length (mm): 9710. Total width (mm) : 2600. Total height (mm): 3650. Power demand (km): 150.
