Morrish Engineering Limited products

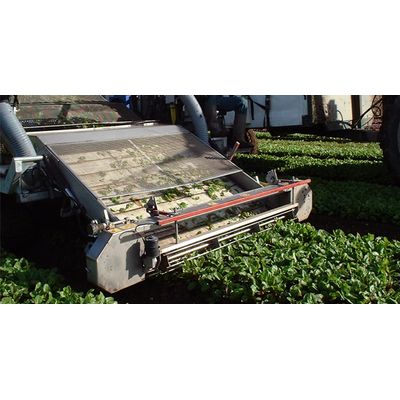

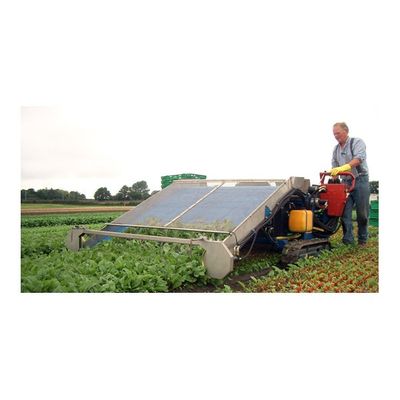

These Harvesters have been designed specifically for the Horticultural and Agricultural industries where they gather green tender leafed vegetables including Spinach, Herbs and watercress. They are unique in there design and because of there relative lightweight construction can be transported to any destination throughout the world. The main framework of each machine is hand made at our factory and all the harvesters are fully tested before delivery. They are economical, lightweight and very durable. The Large Machine have been designed so that they can be loaded into a refrigerated trailer for ease of transport.

GLP 90-120cm range. Machine based on the Hinowa hydrostatic barrow. Walk behind pedestrian operated low cost – low volume machine.

GLL 150cm-170cm cutting width. The largest machine in the range of Morrish Engineering harvesters. A robust high production machine for the grower who needs to produce large volumes of crop every day. The principle operation of this machine is the same as smaller counterpart except the separator belt is longer with double agitation shafts mounted underneath. The track centres can be adjusted to fit the centre of the wheelings. (max centres 2.0mtr).

A range of wheeled units incorporating all the relevent components of the tracked harvesters.

The CT1100 model was powered by a three cylinder Kubota diesel engine giving 26hp and 35 and was built between 1989 and November 1993. This was followed by the CT1105, powered by a Kubota three cylinder, 28hp diesel engine. Three were built between December 1993 and January 1994. The current model CT1703 was first marketed in January 1994. It was powered by a Kubota three cylinder, 37hp diesel engine model D1703. It had fully hydrostatic drive and joy stick steering. Maximum speed was 9km/h, weight was 1000 kg, width 1,400 mm on standard rubber track, length without linkage 2,150 mm and height 1,950 to top of cab/frame. A 49hp Kubota four cylinder engine was optional.

These trailers are very versatile and are designed to give the smallest turning circle, are lightweight yet robust. They can be hitched to any type of vehicle and will cover all terrains. If required can be fitted out for use on the public highways. Easily managed by one person.
