Murray Agricultural Equipment products

Experience the difference with Murray’s Series 44 known as the “Broadacre Stump Jump Harrow”. Featuring a ‘Wrap Around’ tine design, which effectively creates the section frame, the Series 44 is manufactured using High Carbon Steel ‘Forged’ tines. Our forging process shapes the tine into a diamond shape and will ensure that your tines are able to endure rough surfaces and clear your land with ease. The tines also feature greater layback which is designed for superior trash flow. Equipped with 2 pulling points per section, this Stump Jump is compatible with most makes of Hydraulic Drawbars.

Murray Agricultural Equipment has set the pace in tillage with the Series 48 Jumbo Cultivation Harrow – a truly heavy duty Tine Harrow to meet the demands of today’s farming practices. The Murray Series 48 Jumbo Cultivation Harrow meets a need for a flexible, cultivation-style Harrow suitable for seedbed preparation and soil working in heavier soils. It is significantly heavier than standard Stump Jump harrows. Heavier steel components add to weight for improved penetration, greater strength and an extended working life.

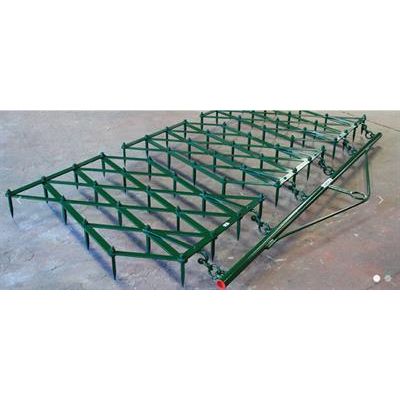

Suitable for open country and lighter loamy soils, Murray Diamond Harrows are an effective implement used for weed control and final seedbed preparation. Specialising in shattering soil crusts allowing improved aeration and moisture penetration, it will give your crops every chance of reliable germination and subsequent vigour. The Diamond frame design is constructed using flat bar material providing the Harrow with strength and rigidity. It features replaceable ‘bolt-in’ 16mm square section High Carbon Steel tapered tines with a working depth between 50 to 80mm (2” to 3”).

The Murray Series 32 Disc Harrow is an excellent choice for soil preparation and breaking up virgin land. Built heavy duty, the tandem disc setup combines rugged capabilities with smart features. The durable box frame is built in two parts, with a pivot point that is able to be locked providing different working configurations. It supports four gangs of discs – two front and two rear. Gang angles can be individually adjusted by way of crank screws to suit different conditions. The angle can be adjusted between 0 and 20 degrees to vary the aggression of cultivation. Disc gangs are mounted on “sealed-for-life” bearings set in rubber. No greasing is required which minimises unproductive maintenance downtime.

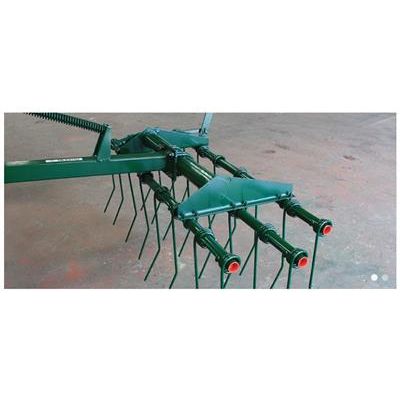

The Series 06 is a medium duty Spring Tine Harrow System popular with farmers for levelling operations in conjunction with primary and secondary tillage implements. Series 06 Harrows employ double spring tines available in Kinked or Straight Tines, both 10mm in diameter. The tine angle is adjustable to suit your field conditions. 3 rank and 4 rank versions are available in three sizes ranging from 1.37 (4’6”) to 2.28m (7’6”). Murrays’ also manufacture an extra wide 14” (335mm) Rank Spacing Straight Tine units which seeks to provide superior trash flow handling capabilities. Manual lifting has been eliminated with harrows able to be folded and travel with the principal implement.

The Series 30 Light Duty is the perfect implement for sandy to light soils. Specifically designed to increase trash flow using wide spacing between each straight tine, the 2 rank is a lighter duty harrow available in five sizes ranging from 1.78m (5’10”) to 3.20m (10’6”). Each section is supplied complete with two mount arms. Harrow depth control is adjustable by means of specially designed cam-action fitting within the mount arm.

The Murray Pastureland Harrow System is recommended for pasture establishment, maintenance and renovation applications. Ideal for breaking down and distributing animal manures and other organic matter evenly across the whole pasture, using a Series 05 will encourage pasture growth. This light duty harrow is suitable generally for pasture areas of less than 100 acres (40 hectares) and tows easily behind small and medium size tractors.

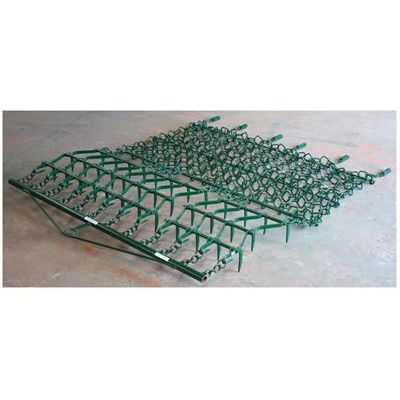

For larger field operations over 100 acres (40 hectares), where greater strength and durability are needed in a pasture harrow, the Murray Series 20 Pasture Harrow System performs above the rest. The system consists of a front drawbar, 3, 4 or 5-rank Pasture Harrow sections and heavy steel square chain mesh together with the appropriate weights. The flexibility and strength of the Murray Pasture Harrow sections easily accommodates uneven ground and stony areas of roughly cleared country which would present difficulties for rigid tines harrows. Each harrow section has a 4-point pull which ensures true tracking and proper operation of the tine section.

The Series 09 Chain Harrow is a multipurpose tool and an important element in Pasture maintenance. Versatile in its own right as a means of spreading organic matter and levelling seedbeds, Murray Chain Harrows are beneficial in strip grazed pasture situations and a useful adjunct to efficient harvesting of clover seed by vacuum harvesters. Ideal in direct drilling operations, Murray Chain Harrows are effective in spreading and gently levelling the soil after the important final operation of seeding. Three depths of chain sections are available – 0.76m (2’6”), 1.5m (5’) and 2.28m (7’6”), with each providing a different level of aggression and pulverisation to suit individual requirements. Chain sections are available in 6 convenient widths between 1.52m (5’) and 6.09m (20’).
