Murray Machinery Ltd products

The Murray Single Bale Spike is made from heavy duty box section and has two 1100mm tines bolted into sockets along the bottom frame of the spike. This is ideal for handling one round bale at a time.

The Murray Double Bale Spike is constructed from heavy duty box section and has four heavy duty tines bolted into sockets along the bottom frame of the spike.

The Murray Big Bale Transporter is a multi-bale spike capable of up-loading four big bales up to 5 in diameter in one operation, so enabling the tractor operator to clear a field of bales in a very short time. The implement fits onto the rear linkage of any tractor and lifts the bales in two tiers, two on the upper frame and two on the lower frame. The upper bales being lifted clear by a single acting hydraulic cylinder to allow lower bales to be picked up. The frames are constructed of heavy box section for maximum rigidity and are fitted with machined tapered sockets for the tines in each frame. The Murray Big Bale Transporter also comes in a `fold up` version, this is to allow the operator to fold the protruding tines up safely out of harms way when travelling along the public highway when fitted to the rear of any tractor.

The Murray Octa-Quad Bale Handling System will transport twelve big round bales or six full sized big square bales fully mounted on any large tractor, and is designed to clear fields of big round bales and or big square bales very quickly.

The Murray Wrapped Bale Handler is designed for handling big round bales wrapped with plastic film without causing damage to the film. The Bale Handler consists of a rigid box section frame with two arms pivoted on the bottom. A double acting hydraulic cylinder is attached between the arms, two rotating rollers are then attached to the lower end of the arms. When the hydraulic cylinder is activated this allows the rollers to extend outwards to allow entry under the bale and then inwards to lift the bale.

The Murray Grain Hopper comes in various sizes and capacities and can be used for an array of different applications.  Discharge doors can be fitted if required to control or close off flow.

The Murray Grill Guard is designed to help protect the front of your machine whilst in use from various obstacles and debris.

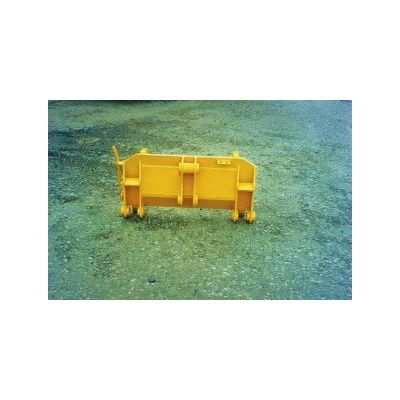

The purpose of the Murray Quick Hitch Attachment is to allow the operator to change quickly from one implement to another. This is done by releasing the locking lever at the side of the Quick Hitch, driving out of one implement and into the next and closing the locking lever again. The locking lever can be operated remotely by a hydraulic cylinder if required and is offered as an option. The Murray Quick Hitch is a `dedicated` hitch. For example - a Quick Hitch for a Ford Loader will pick up implements with Ford fittings only, a Quick Hitch for a JCB loader will pick up implements with JCB fittings only and so on.

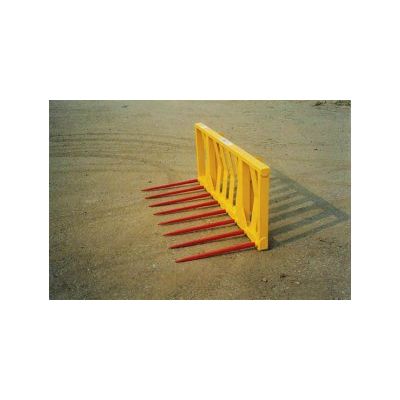

The Murray Muck Fork range is manufactured to suit from the smallest tractor loader right up to the largest telescopic handler. They are all well constructed from heavy duty box section to create a rigid frame, the bottom member is fitted with full width tapered sockets to suit the Heavy Duty Kvemeland type fines used. Muck Forks can be supplied with a fully enclosed back or with `see through` back. Depending on the customers particular requirements, a full range of fixing brackets are available to fit most tractor loaders, fork-lifts and telescopic handlers.
