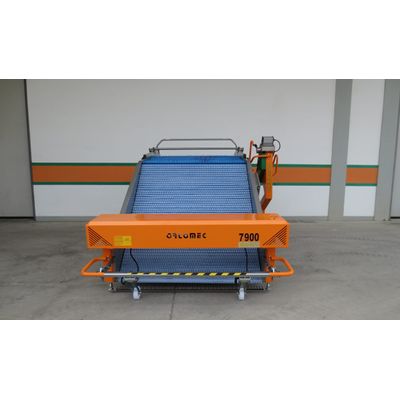

Harvester suitable for cutting and harvesting leafy vegetables, grown in containers such as polystyrene or plastic sowing trays. These containers are placed by hand on the first conveyor belt of the machine. The belt takes them to the height-adjustable blade that cuts the leaves. After cutting, the product continues on another conveyor belt in polyurethane, reaching a third conveyor belt that unloads the leaves into the collection boxes.

Harvester carried on third hitch point of the tractor. Minimum power required of 24 HP. Available harvesting widths from 120 to 180 cm. Band-blade cutting system. Available cutting systems: type A, in stainless steel, with useful height of 21 cm with 2 pulleys. or type B, in stainless steel, with useful height of 31 cm with 2 pulleys. Machine dimensions: length 225 cm, width 167/187/217 cm, height 110 cm.

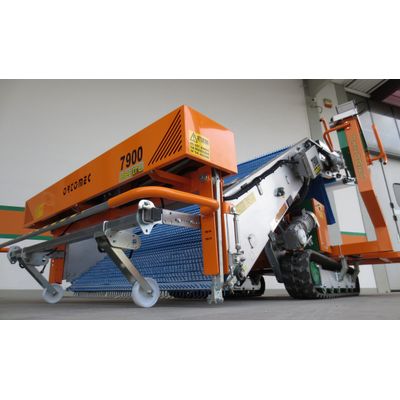

Harvester for leafy vegetables. Machine head frame in stainless steel. Control of the cutting height from the driver’s place, through electric button.  System of electronic sensors for the auto adjustment of the cutting height.  Hydraulic conveyor belt with adjustable speed, food-grade certified.

Harvester carried on third hitch point of tractor. Minimum power required of 47 HP. Available harvesting widths: from 120 to 180 cm. The track is variable by shifting hubs/wheels from axle. Cutting blade height adjustment with hydraulic control by means of hydraulic/free rotation single roller with speed adjustment.

Machine in “Herbex” version, for the harvest of Corn Salad.

Machine in “HERBEX” version, for the harvest of Corn Salad.

Machine in “LATTUGA” version, for the harvest of Various types of head lettuce.

Machine in “LATTUGA” version, for the harvest of various types of head lettuce.

Machine in “LATTUGA” version, for the harvest of various types of head lettuces.

Seeder carried on the third hitch point on the tractor with mechanical seed distribution system. 3rd point connection, I category. Minimum power required: 30 HP. Listers with independent movement on each rows, equipped with spring for pressure on the ground. Rapid shifting of listers with minimum 4 cm between rows. Weight: approx. 450 k.
