Otech S.A.S. products

Compact pyramidal structure in galvanized steel with two belts on each side in 4 mm thick pipe, this structure reduces the volume of concrete slab to preserve more cultivated surface. Sealing by rotating connection on vertical pipe provided by lip seal at low pressures. Device without need of electricity, one span maximum in ST127 length 56 m or 62 m with an overhang of 24 m or 30 m. Flow rate to be respected from 33 m3/h to 80 m3/h and pressure from 4.3 bar to 6 bar.

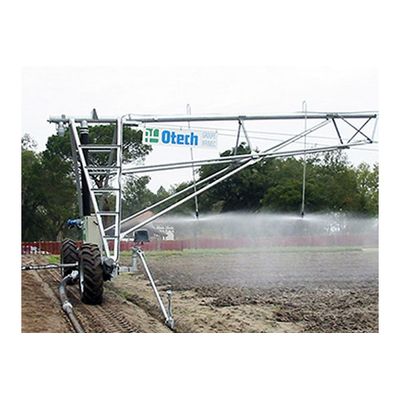

The 2RM1 lateral has two drive wheels and enables the automatic lateral back-and-forth displacement of the machine to irrigate a rectangular parcel. This lateral cart can be equipped with disengageable gearboxes that can enable the displacement from a parcel to the other thanks to a tractor. In order to have this function of displacement, please consult us to offer you additional accessoires. The water supply is pulled by the motor powered from one or more successive hydrants.

The 4RM1 lateral has four drive wheels and allows the machine to move laterally in automated back and forth to irrigate a larger rectangular parcel. Equal to the 2RM1-2, it tows a hose that may be longer thanks to a higher pulling power.

The 4RMG lateral can carry out combined courses (linear + circular) like those of the 4RMVE Premium lateral. A wheel rotation wired remote system of the cart enables to change the operating axis and to adapt itself to the parcel shape.

Basic electromechanical control panel ready for remote control for minipivot machine;Control panel for  minipivot ST127 machine with 1-2 spans. Basic functions for an easy irrigation. Refined human-machine interface for a pratical use. Most economical solution for small pivot.

Electromechanical control panel ready for remote control for ST127 / ST168 / ST193 / ST245 pivot machine; Control panel for pivot ST127 / ST168 / ST193 / ST245 machine. Complete, clear and simple human-machine interface. A lot of options available to start from a simple to a precision irrigation. Time and money saving thanks to the mix of machine remote control tools and electromechanical panel. Many control panel finishing available.
