Otte Metallbau GmbH & Co. KG products

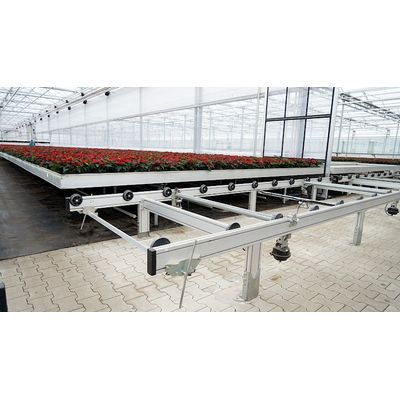

Rolling bench systems, because they are movable, allow optimum space utilisation (proportion of usable space approx. 85%). The table substructure consists, depending on the constructional requirements, of concrete, galvanized steel tubing or aluminium. Between the substructure and the rolling bench two movable tubes provide for movability. In this way, if required, a passageway can be created where it is needed.

Our mobile and rolling mobile bench system was especially developed for large horticultural establishments, in which benches with plants have to be moved at regular intervals in a time saving and cost saving manner. Mobile benches are a precondition for the automated processing of plants. The benches (also called containers) run on four ball bearing mounted metal rollers. Highly stable tubing serves as runners. With the exception of the transport passageway and the working area, the entire greenhouse area is thus available. The benches can be moved either by stationary rail transport systems or fully automatic transport robots. As a bench coating, one can choose between closed or holed Styropor (for mat watering), aluminium or plastic baths (for accumulation watering) or galvanized corrugation.

The OTTE robot transports containers, e.g. from potting to the culture hall, precisely there where you want them - fully automatically. Thus time-consuming transport operations can be carried out at the touch of a button. The OTTE robot can also be delivered as a mobile lift or fully automatic stacking unit for stacked cultures. The rail-guided transport cart from OTTE transports your benches entirely automatically and continually to exactly where you want them. Each transport cart is designed according. to your requirements. Single and multi-layer designs with integrated collection and / or pushing equipment are already successfully in operation. Transport carts from OTTE can push and pick up containers from one or both sides. The power supply takes place by a bus bar. It is also possible to have digital bus connections to a central computer.

Innovation with attention to detail makes OTTE special mechanical equipment stand out. The equipment complements OTTE mobile bench and rolling mobile bench systems and turns these into fully automatic plant and equipment for plant production. With the OTTE watering station you help your plants get an optimum start. Immediately after being potted, the plants are thus provided with water. The container washing machine from OTTE ensures rapid and fully automatic cleaning of your mobile benches with ebb and flow deposits. For mobile benches with mat watering a brushing mashine with a suction attachment can be supplied.

In some garden centers, customers do not see the forest for the trees. With variable sign holders and alu banner holders from OTTE you can find your way in your shop quickly and clearly. The large integrated display creates an unobtrusive but effective orientation. The flexible height-adjustable sign holder offers fast price information at the same time. With separation and clamp arches, you can create a clear and clean presentation for all plant sizes - very convenient and individually adjustable at any time! Outside, your plants are protected against falling over. Also available is the presentation platform. You can also place extra products of any kind and put it on the sales tables.

Our aluminium rack system consists of easy-to-assemble aluminum uni-profiles and is equipped with aluminum trays (profile: W6/110) including lining (for example: plastic plates/trays, wave grid mesh, aluminum lining). Within the rack system lamps for a multi-layered cultivation of young and potted plants could be integrated. The multi-layer system uses your cultivation area in an optimal way. The combination of a rack system with an irrigation system offers the possibility of saving water and cost of energy. The aluminum rack systems are produced according to customer requirements.

Welded design, maximum stability, fixed design (movable design on request), height-adjustable aluminium support, 30 cm inner height, stainless steel sheet (V2A), 1 mm thickness, with drain and integrated gate valve, total height 75 cm or according to your request
