Penguin Pumps Pvt. Ltd. products
PENGUIN - Slim (130MM) Submersible PumpSet
Power range : 2.2 kw to 13 kw - Three Phase. Speed : 2850 RPM. Version : A.C. Three Phase, 350-440 V. 50 Hz Direct on Line [DOL] Upto 5.5 kw, Star Delta [SD] Upto 13 kw. Type of Duty : S1 [Continuous]. Flow Rate upto : 0.75 to 11 Lps. Head Range upto : 9.0 to 365mt., 30.0 to 1200 ft. Nominal Outlet Size : 50 & 65 mm. Maximum Liquid-Temperature : 33` C.

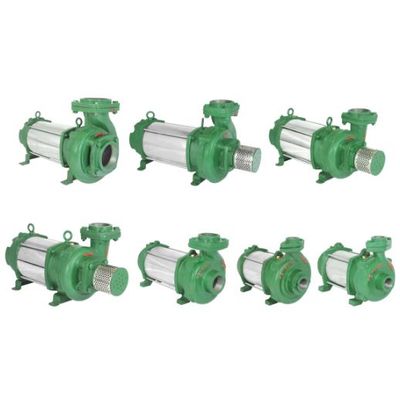

PENGUIN - Horizontal Monoset Pumps
Power range : 0.37 kw to 2.2 kw - Single Phase , 2.2 kw to 11 kw - Three Phase. Speed : 2820 RPM. Version : A.C. Single Phase, 190-230 V. 50 Hz Capacitor Start & Run [CSCR], A.C. Three Phase, 350-440 V. 50 Hz Direct on Line [DOL] Upto 5.5 kw, Star Delta [SD] Upto 11 kw. Type of Duty : S1 [Continuous]. Flow Rate upto : 50 Lps. Head Range upto : 61 mt. / 200 ft. Nominal Outlet Size : 25, 32, 40, 50, 65, 80, 100 mm. Maximum Liquid-Temperature : 33` C.
PENGUIN - Multi Purpose Pumpset
Power range : 5 H.P. To 50 H.P. Three Phase. Speed : 2820 RPM. Version : A. C. Supply, 350 - 415 Volt 50 HZ. Star Delta Or 60 Hz.. Type of Duty : S1. Flow Rate upto : 115 To 2650 LPM ( Liter Per Minutes ). Head Range upto : 36 Meter To 162 Meter. Nominal Outlet Size : 65MM, 80MM, 100MM. Maximum Liquid-Temperature : 33` C.
