POMMIER products

Aluminium booms from 15 to 28 m .Hydraulic folding between the 1st and 2nd sections .Fitted with cylinders 40 x 25 rod stroke 460mm

Aluminium booms from 32 to 38 m Hydraulic folding between the 1st and 2nd sections. Fitted with cylinders 50 x 30 rod stroke 450mm with cushion

Aluminium booms from 36 to 38m with 3 sections and a breakaway. Hydraulic folding between the 1st and 2nd section Fitted with cylinders 50 x 30 rod stroke 450mm with cushion Hydraulic unfold between the 2nd and 3rd sections .Fitted with cylinders 40 x 25 rod stroke 460mm

Aluminium booms from 24 to 48 m Aluminium booms 17/24m and 24/45 are built on a base of 2 rectangular tubes of 120 x 80 mm  Aluminium booms 26/48 m are built on a base of 3 rectangular tubes of 120 x 60 mm .Hydraulic folding between the 1st and 2nd sections
Fitted with cylinders 63 x 36 rod stroke 500mm with cushion

Aluminium booms from 24 to 30 m .Hydraulic folding between the 1st and 2nd sections .Fitted with cylinders 50 x 30 rod stroke 450mm

Boom Structure .Aluminium booms from 24 to 50 m are built on a base of 3 tubes for the first section .Hydraulic folding between the 1st and 2nd section .The booms from 32 to 48 m are fitted with cylinders 63 x 36 rod stroke 500mm with cushion

Aluminium booms from 21 to 30 m Hydraulic folding between the 1st and 2nd sections .The booms from 21 to 28 m are fitted with cylinders 40 x 25 rod stroke 460mm .The 30m booms are fitted with cylinders 50 x 30 rod stroke 450mm

Aluminium booms from 32 to 38 m Hydraulic folding between the 1st and 2nd sections .Fitted with cylinders 50 x 30 rod stroke 450mm with cushion

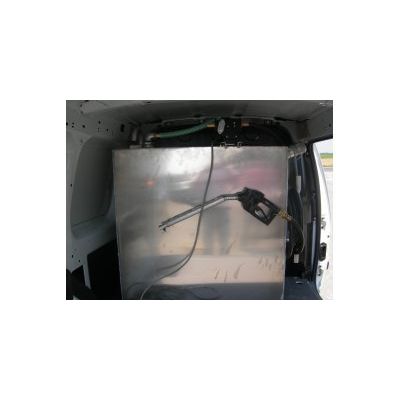

These refueling tanks are custom made with care. Very practical and time-saving for farmers during the harvest period, these tanks can be placed in a small van or behind a 4WD vehicle.
