P.P.H. Mandam Sp. z o.o products

The TAL-C disc harrow is recommended for light and medium types of soil for post-harvest cultivation and as a unit to complete the process of pre-sowing cultivation. Thanks to independently mounted 560 mm diameter notched discs, each protected by a leaf spring suspension, the machine can be operated on stony soils. The TAL-C discs are mounted at preset angle to penetrate the soil well whereas maintenance-free oversize hubs provide exceptional durability. TAL-C may be equipped with wide range of options: rollers, scrapers, transport chasis, seeders, ect.

TAL-K 8-m wide disc harrow for pre-seeding and post-harvesting cultivaiton. Built around sturdy frame, boron steel 560mm notched discs, 130mm leaf springs and reinforced maintenance free bearing units. Pre-set disc attack angle is optimiszed for btes efficiency, while premium grade materials provide exceptional durability. Hydraulic working depth adjustment and transport chasis with penumatic brakes are standard.

GAL-C compact disc harrows with two rows of 560mm boron steel notched discs mounted on maintenance free fully sealed bearing hubs. Working units mounted to the frame by means of rubber suspension rollers. Many optional accesories available as variety of rollers, scrapers, screens and more.

Optional accesories: Standard tine with bracket and 190 mm wide share point (set). X tine with bracket and 190 mm wide share point (set). Narrow share point 105 mm (pc). Narrow hardened share point 105 mm (pc). Wide hardened share point 190 mm (pc). Wide hardened share point 190 mm with carbide plate (pc). Knife share point (pc). Tubular roller Ø 540 mm. Tubular roller Ø 620 mm. T-ring roller Ø 600 mm. V-ring roller Ø 600 mm. V-ring roller with paddles Ø 600 mm. C-ring roller Ø 600 mm. Drain weight with a chain (pc). LED lights.

These subsoilers are designed for deep soil opening without opening its layer. They enable better moistening and and drainage in the surface layer of the soil. Available roller (MGW) provides better working depth control, while optional moles, improve field drainage.

The KUS cultivator comprise a wide range of machines designed as a robust frame with two beams. The type of machines is used for pre-sowing and pre-planting cultivation as well as for stubble cultivation as they achieve excellent results thanks to perfectly performed undercutting and mixing of post-harvest remains. Two rows of tines, alternating settings of of 465 mm diameter notched discs and a wide range of rollers to choose from guarantee high quality of post-harvest cultivation.

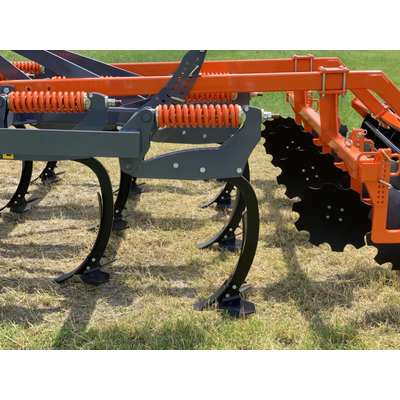

Spec HD (heavy duty) is the tougher version of regular SPEC cultivator. That three row cultivator is designed for stubble cultivation and tillage. Equipped with double spring proteciton with updated swingarm geometry, is able to withstand much greater ground preassure than the regular machine. Minimal activation imput force is 550 kg per tine, which allows, after removing detachable wingshares, aggressive tillage as deep as 30cm. Variety of press rollers to choose from, different toughness points and profiled tines, fulfill the image of the tough while universal machine.

The Campbell MWC/MWW rollers are intended for cultivation. Mounted on the front three-point hitch of the tractor. Their main function is to compact and smooth the field before or during sowing, compress and maintain soil moisture and improve its structure. Mandam Campbell cast wheels are available in three diameters: 700, 800 and 900 mm. Additional, individually height adjusted, knife cultivator section is standard on M WW models.
