Primultini s.r.l. products

Quality cast iron column and base - Spheroidal cast iron flywheels designed for high speed, assembled on high dimensioned shafts, in special hardened and tempered steel, rotating on self-aligning roller bearings - The band blade is strictly hydraulically tensioned;

The carriage is made of two superposed independent frames with high stability. Headblocks are mounted on the upper frame, assuring a perfect headblock alignment during the time. The cutting axis can rotate and adjust according to log conicity. The right cutting position is found through frame rotation and not through log positioning. Dogs clamping and unclamping controlled by oleo dynamic cylinders.

The carriage is made of two overlapping indipendent frames wilh high torsional stability. On the upper frame are mounted all clamping headblocks and by means of a simple rotation system the longitudinal cutting axis can be adjusted according to the log conicity. What it is absolutely new on this carriage is that the variable cutting axis is not reached through log positioning but through frame positioning. Spike clamping an unclamping is controlled by oleodynamic cylinders. Movable spikes with hydraulic control with variable positions (up to 180 mm). Hydraulic circuit with VARIABLE DELIVERY PUMP, it allows more simultaneous mouvements without decreasing speed. Feeding unit with cable traction controlled by hydrostatic and/or electric - vectorial unit {variable speed up to 0-180 m/min). Electronic thickness setting device with programmable microprocessor with electroluminescent tactile screen "ALPHA 098°.

Distancemax lams/borne : mm 1000 (1200).

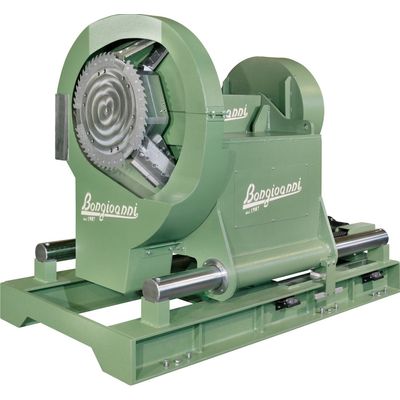

Log profiling installation.

Strong steel frame. Sliding chromed steel guides Ø 140mm on wearproof bushes. Cutter positioning by means of brushless motor through drive chain. Electronic positioner set for 9 stored programs with display. The positioner can be integrated in the electronic system of the log carriage.

High duty machine. Sturdy structure. Feeding through upper and lower driven rollers hydraulically charged. Electronic control for management of machine`s movements through controlled logic PLC. Electronic device for automatic feed speed adjustment according to the power absorbed by motors of blade holding shafts. Automatic positioning of blades and pressure rollers according to preselected cutting thickness, with display. Blade holding shafts supported on both sides with hydraulic locking device. Automatic positioning of blade holding shafts according to blade diameter. Carriage for blade holding sleeves extraction. Door-locking safety devices. Automatic lubrication of rollers drive chain. Electrical cabinet separate from the machine, according to IP 55 IEC standards.
