R&S Grain Systems Inc. products

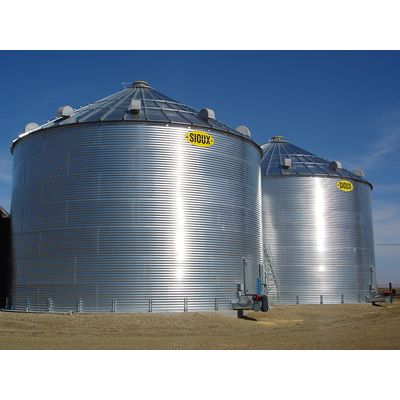

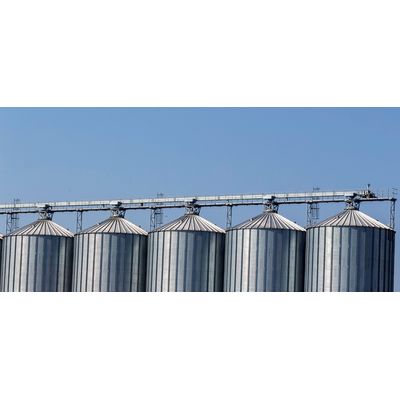

Available in 64-lbs per bushel or 70-lbs per bushel models, these grain bins are made from 4” wide corrugated steel with a tensile strength of 70,000 psi to accommodate the increased test weights of grain harvested from today’s new hybrids and products that incorporate improved genetics. Depending on their model, these bins additionally sport two to three strong stiffeners per side wall sheet, and are available from 18’ to 132’ in diameter.

We started as farmers, so we fully understand that many aspects of farming are beyond your control, including unpredictable weather, equipment breakdowns and fluctuating prices. At R&S Grain Systems, we’re on a mission to bring stability to the industry by helping farmers better control how their harvests are stored. We proudly offer grain bins by Sioux Steel Company for your farm.

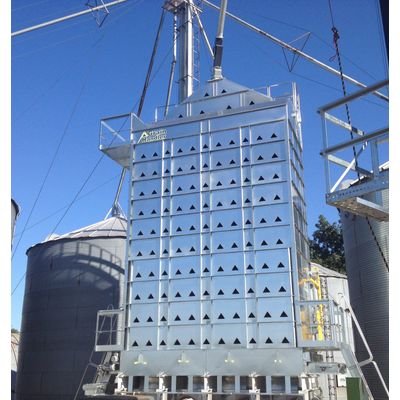

As a leading manufacturer of grain handling equipment since 1986, Grain Handler USA’s Continuous Mixed Flow system sets the standard for what today’s grain dryer market has to offer. The system’s design is capable of drying all types of grain at equal rates, and does so for low energy costs and with a higher retention time which consistently yields high quality grain. You may choose between natural gas, liquefied petroleum gas, liquefied natural gas, or butane as your fuel source, making this system highly adaptable.

Bushel capacity (per hour): 1,500. Trunking size & GA :  12” X 26” X 12GA. Pulley diameter : 10”.

Size Bushel Cap.: 800. Section Size: 8” x 7”. Chain Size: CA550 . Paddle Size: 1-5/8” x 7-1/4” x 1/4”. Bolt in A.R. Liner Option:  Available.

Bushel Cap. (Per Hour): 3,000. Section Size: 12” x 16”. Chain Size: 81X. Paddle Size: 5-1/2” x 11-1/4” x 3/8”. Bolt in A.R. Liner Option: Available.

Auger Hopper Size: 6", 8", 10", 12".

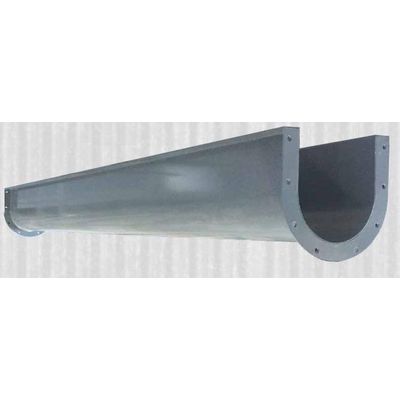

U-Trough: Size: 10". Screw Size: for 9" Screw . Bushel Capacity (per hour): 500 - 2,000.

Valve Size : 4" , 6", 8", 10", 12", 14", 16".

Rack & Pinion Roller Gate Size: 6", 8", 10", 12", 14", 16", 18", 20", 24", 30", 36".
