Real Industries Ltd. products

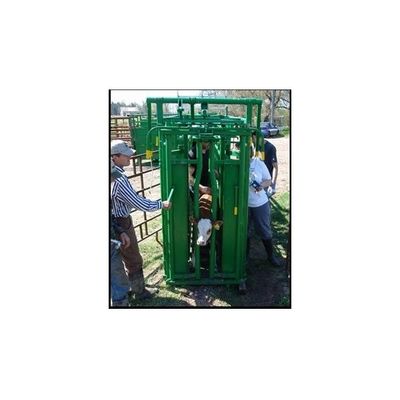

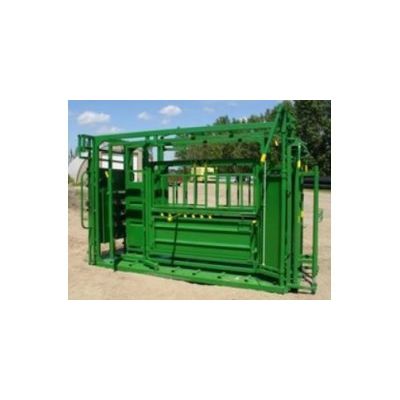

Deep ribbed checker plate floor in both squeeze and palpation area. Operate from either side by a single operator. Side opening doors to release cows from either side. Removable bottom panels to allow for easy access. Integral palpation cage with door on both sides. Palp doors move with squeeze to eliminate all corners that calves can turn in. Includes removable spring loaded headgate, automatic with dual controls. Parallel axis squeeze action to center animal, calm them and keep them from going down. Wide opening and removable side access gates for increased access to animals. The sliding rolling gate that operates from both sides, is made out of 1 tubing. Dual adjustable linkage for even pressure front and back.

Structural Features: 2018 Real Gooseneck. Livestock Trailers. Totally enclosed wiring with sealed junction box. Heavy wall tubular gooseneck with ¼” fishplates. Acid washed, sandblasted & primed with 2 coats etching primer. Painted with 2 coats of poly urethane enamel. 14g smooth deep ribbed sides. Approx 16” spacing for all cross members. DOT lighting and conspicuity tape. 6’6” high. Heavy wall tubular frame. All external seams welded.

Spring loaded standard feature. Dual side hand controls for ease in operating from either side. Quickly and easily adjusted. Neck bars adjust from 5" to 11" (21/2" with optional straight bars).

Neck extenders are easily removed. All pivot points can be greased. Prevents animals from swinging their heads. Easily adjustable width. Extended bars are infinitely adjustable for animals neck size. Neck extender bars move with standard neck bars for smooth animal handling.

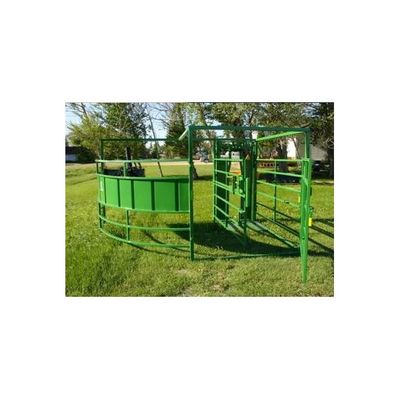

Quickly and easily setup for calving, nursing, examination or inoculation. Three way linkage allows for the shape and size of corral you need. Side panel flips to allow for nursing or caesarians. Removable spring loaded top bar permits administration of medication or diagnostic examination.

One piece unit for strength and durability. Quickly and easily setup For calving, nursing, examination or inoculation. Side panel easily swings out of the way for easy access. Independent bottom panel allows for nursing while maintaining animal in position. Curved designed to direct animal toward headgate easier.. Checker plate floor platform at headgate to prevent animal from moving pen.

Material - frame 1 1/2" x 11/2" x 100 wall square tube. Door and panel is constructed of 1" x 1" x 100wall square tubing. Available in lengths of 5`, 8`, 10`, 12` (all with 5` swinging gate). 3 way linkage to form the configuration you need for each function including the three way T. All seams welding on all sides. Upright spacers are of 1 x 1 x 100 wall square tube for extra strength. Height - frame 6` 10" panel 5`. Sold unpainted - Some painting available at extra charge.

Built with 1" x 1" x 100 wall square tubing. Welded on all sides. Length of panels available- 8f 10,12,14 and 16 ft. Custom orders available. 3 way linkage forms the configuration needed for all functions. Feeder panel height 4 ft. Weight - 9.4 lbs per lineal foot. 16" centre to centre slant spacing- narrower spacing available Special order to accommodate calves or sheep. Sold unpainted.

Built with 1" x 1" x 100 wall square tubing (1 1/4 for tombstone feeders and Haysaver feeders) -Welded on all sides Sold unpainted. Slanted feeders help reduce feed waste. Optional 16 gauge smooth sheet metal skirt enhances the long term strength and easily pays for itself by further reducing waste. Skirting also helps prevent the potential of leg injury. Most feeder models available welded solid bolted at one seam or. bolted in halves (bolts avail for Additional fee). Reg. Feeders- Height 4` Width 8`. Haysaver models are cone shaped Approx 10 ft on bottom and 8 ft on Top.

Constructed from heavy tubular steel square tubes of 3 inch x 3 inch in3/8 and %inch walls. Drop forged fork prongs. Sold as Frame and Teeth only (brackets not included). Sold painted.
