RuggedMade products

The RuggedSplit 537-24-HE is a robust 37-ton log splitter designed for both residential and commercial use. It features dual-mode operation, allowing users to split logs horizontally for smaller sizes or vertically for heavier and taller logs. Powered by a commercial-grade Honda 270cc GX Series OHV engine, it promises reliability and longevity. The hydraulic system is driven by a 16 GPM two-stage pump, ensuring efficient log splitting with a quick cycle time of 15 seconds. Its ergonomic design minimizes user strain with a waist-height beam and includes a 4-way splitting blade to enhance operational efficiency. The hydraulic hoses are steel-reinforced and connected through large 3/4 inch ports to avoid bottlenecks. The machine is built with precision laser-cut steel, solid welds, and powder-coated finish to withstand harsh conditions. With a 24-inch stroke and a solid steel I-beam, it offers a powerful and consistent performance while the hydraulic fluid tank holds up to 8 gallons, suitable for extended use in rugged conditions.

This is the main hydraulic cylinder found on all RuggedSplit 700 series, 28-ton, 30" stroke, log splitters. This cylinder can also be used as a replacement on other log splitters or machinery such as forge presses and industrial compactors. Check the specifications to determine compatibility.

This hydraulic control valve by RuggedMade is engineered specifically for log splitters, capable of handling two distinct hydraulic circuits simultaneously, such as a log lift and an adjustable height blade. Its robust 2-spool design accommodates a maximum flow rate of 30 gallons per minute (GPM) and withstands pressures up to 3,000 PSI. The control valve features 3/4 inch inlet and outlet ports, with 1/2 inch work ports, all utilizing NPT(F) threading. The valve is constructed from cast iron for enhanced durability, and the spools return to a neutral center position via spring tension without detent capabilities. Additionally, the valve supports 'power beyond' functionality, allowing it to connect an additional downstream valve by utilizing a separate power beyond sleeve, sold independently. Its adaptable lever mounts offer flexible installation options, broadening its application within hydraulic systems.

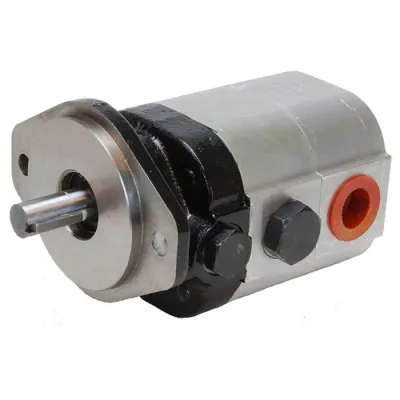

This 2-stage hydraulic pump combines a large displacement low-pressure pump and a small displacement high-pressure pump. It is ideal for use with log splitters, machine tools, trash compactors, and other applications.
