Rylind Manufacturing Inc. products

Rylind Wedge-loc Coupler vertically secures the Loaders bucket and other attachments with over 2,000psi of pressure eliminating the wear associated with standard pin-locking couplers. Rylind Wedge-loc Coupler Systems secure buckets, forks, jib booms, snow removal equipment and other attachments to the coupler frame with solid wedge-locking power. The double heavy duty hooks are easy to engage or disengage with easy alignment. Interchangeability of attachments such as snow plows within three classifications of loaders. The three interchangeable sizes are Series 10 couplers for 1 to 2 yard class loaders, Series 20, 30, and 40 couplers for 2 to 4 yard class loaders and, Series 50 and 60 couplers for 5 to 7 yard class loaders. Weld-on coupler mounts available for any current attachments you have such as; Snow Plows, Snow Blowers, Angle Plows, Brooms, Buckets, etc… Hydraulic operating kits are included for installation.

Rylind Horizontal Pin-loc Couplers and OEM Style Couplers like JRB, Deere, Volvo, and CAT are designed for a variety of machines. Rylind’s Horizontal Pin-loc Coupler is setup to interchange with our Motor Grader Parallel Lift Group Attachments. One Coupler system for two different types of machines. Attachments can interchange between 2.0 to 4.0 yard loaders.  Weld-on coupler mounts available for any current attachments you have such as; Snow Plows, Snow Blowers, Angle Plows, Brooms, Buckets, etc…

Rylind General Purpose Buckets are designed for material handling. They have a long-lip, flat bottom, open design for fast loading when stockpiling or loading material into trucks or charging hoppers. Typically, these buckets load faster and last longer than standard factory production buckets. They are direct replacement buckets for factory OEM. OEM Pin-on Mounts, Rylind Wedge-loc Coupler, Pin-loc Coupler, JRB, ISO, Volvo, Deere, CAT, ACS, and other coupler systems are available.

Rylind Light Material Buckets are designed for high capacity light material handling applications. They are excellent for handling snow, grain, cotton seed, fertilizer, sawdust, coal, sugar beets, and other material under 1500 lbs/sq yd. They are manufactured entirely with high tensile steel and are frequently oversized for increased production capacity. OEM Pin-on Mounts, Rylind Wedge-loc Coupler, Pin-loc Coupler, JRB, Volvo, Deere, CAT, ACS, and other coupler systems are available.

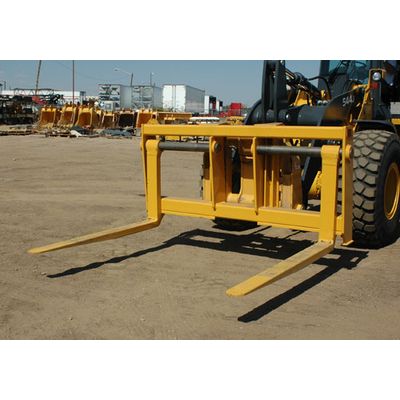

Rylind Manual Adjustable Forks are available with a 60” or 96” wide standard carriage. They are used to handle different types of pipe, lumber, logs, hay bales, palatalized materials and many other applications. Visibility is excellent through the fork carriage from the operator’s seat to the load being handled.  Heavy duty tine locks are standard to lock the tines back against the carriage.  OEM Pin-on Mounts, Rylind Wedge-loc Coupler, Pin-loc Coupler, JRB, Volvo, Deere, CAT, ACS, and other coupler systems are available for all fork carriages.

Rylind hydraulic adjustable forks are available with a 60” or 96” wide standard carriage. 120″ wide available for handling pipe or other larger applications. They are used to handle different types of pipe, lumber, logs, hay bales, palletized materials and many other applications. Visibility is excellent through the fork carriage from the operator’s seat to the load being handled.  The hydraulic adjusting cylinders are direct acting and operate using the loader’s hydraulic third function valve.  Heavy duty tine locks are standard to lock the tines back against the carriage. OEM Pin-on Mounts, Rylind Wedge-loc Coupler, Pin-loc Coupler, JRB, Volvo, Deere, CAT, ACS, and other coupler systems are available for all fork carriages.

Rylind V-Type Snow Plows can be mounted on either Wheel Loaders or Motor Graders. V-Plows come in 8’, 9’ and 10’ cutting widths and a 30° cutting edge angle for lifting and breaking the snow pack. Three adjustable skid shoes are standard. Rylind Wedge-loc, Pin-loc Coupler, Lift Group, JRB, Volvo, Deere, CAT, ACS, and other coupler systems are available.

Rylind Hydraulic Snow Wings are completely Hydraulic no cables used. Moldboard, inboard, and outboard mechanical float system and push-beam with shear-pin protection. Easy bolt-on available for most OEM mountings. Choice of 42” or 60” high benching models. Snow wings come in 12′ and 13′ Heavy Duty and 14′ Severe Duty “Alaskan” Style Snow Wing with a taller moldboard and heavier push beam and spring. Hydraulic Elevating Rear Mast, 2 Position Manual Pin, or Rear Ripper Mounts available.  We can fit most motor grader manufacturers (bolt-on not available on all models).

Rylind Parallel Lift Group will fit most major brands of Motor Graders. Rylind lift groups are a Balderson Style Lift Group that interchange with most OEM brands. Lift Groups can be used with Quick Mount Scarifiers, V-Plows, Angle Dozer Blades, Angle Ramp Plows, Reversing Tripping Plows, Straight Dozer Blades, Quick Mount Weighted Push Blocks, and many other attachments. Manual-Locking hitch pins with retention pins and 2″ safety lock-out pin is standard on all lift groups. Hydraulic Locking Options available and require one extra auxiliary hydraulic valve for operation. Optional Hydraulic/Electric selector valve available.

Rylind Front Mount Scarifiers mount to the head plate of Motor Graders, and Rylind Quick Mount Scarifiers will attach to most Parallel Lift Groups. Our Front Mounted Scarifiers are designed not only to do the job of an OEM Scarifier but also are built tough enough to be used as a parallel lift group for mounting snow plow attachments. Rylind and Deere Style scarifiers available. Rylind QMS Scarifier can be used if your Grader already has a Parallel Lift Group. All Scarifiers hold 9 Teeth and Shanks, comes standard with 5.
