Scott Trailers products

The DP120 range combines a substantial maximum volume and gross weight (3500kg) with the option of a removable container. When the container is removed, the DP120 can be used as a conventional flatbed trailer. Body lengths of 10’, 12’ and 14’ are available, all with standard headroom of 6’. A tri axle is an option on the 12’ model and standard on the 14’ version. All sizes are available with either the standard ramp or with the EasyLoad ramp and folding deck system.

The TA510 range offers substantial high specification trailers, designed for those who require the maximum volume and gross weight available. Body lengths of 10’, 12’ and 14’ are available, with height options of 6’ and 7’. The 7’ versions, with optional centre partition fitted, allow two 16.2hh horses to be transported. All trailers have a maximum gross weight of 3500kg; payload varies between 2010kg and 2550kg depending on size and specification. All sizes are available with either the standard ramp, combination ramp doors or with the EasyLoad ramp and folding deck system.

Available in 4`, 6` and 7` Headroom. The TA5 4’ headroom models are slightly wider than the P6 and P8 at 5’, and feature wider side vents with flaps giving increased ventilation. With the low headroom and increased floor area, the wind resistance is minimised when towing, a bonus when travelling long distances. The twin axles provide a maximum gross weight of 2700kg. The rear ramp is covered with grip face aluminium planking and is fitted with a ramp assistor. The TA5 is available in 8’, 10’, and 12’ body lengths.

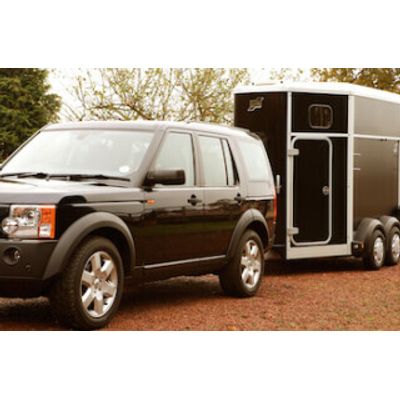

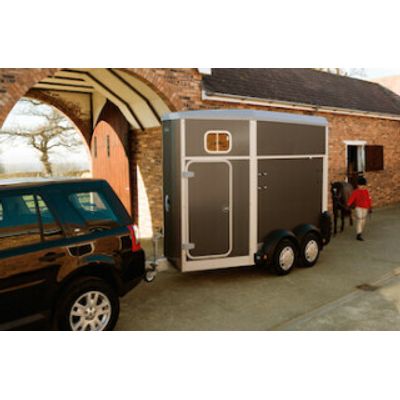

As a single horsebox, the HB403 provides more stall width than our double horsebox models and offers enough headroom to take one 16.2hh horse. Being a narrower trailer, the HB403 is easier to tow and produces less wind resistance when towing. The HB403 is ideal for transporting nervous horses that require a wider stall and may prefer to travel alone.

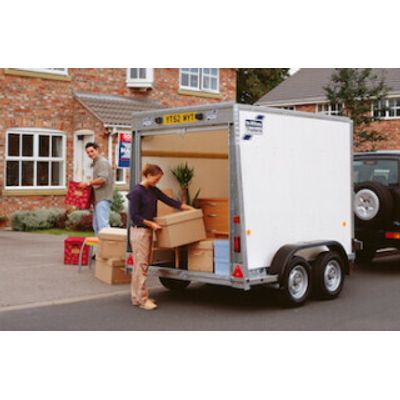

Our box vans are available in a choice of three height options, three width options and four length options. Smaller models are available with a choice of single or twin axles. Most models are offered with roller shutter, combination ramp doors or van rear doors, ensuring your trailer is perfect for your needs. The white coated side panels are tough, smart and easy to clean. They provide the classic ‘blank canvas’ ready to be sign-written and ideal for pre-cut vinyl graphics and logos.

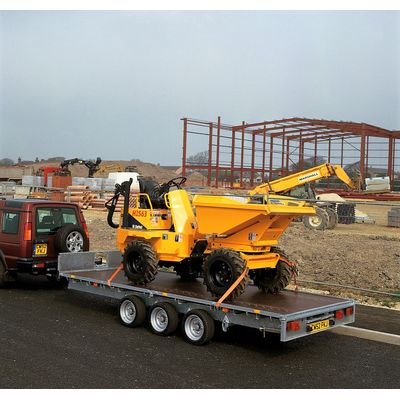

From the smallest LT85 to the largest LM208, all Flatbed models are built around a welded steel, galvanized chassis fitted with bolt-on tapered drawbars and the Ifor Williams beam axle and leaf sprung suspension. Normally supplied with twin axles. Tri-axle options are available on our LM6 and LM7 series models (except LM106 & LM127). The LM206, LM207 and LM208 are only available as tri-axle trailers. With the addition of a winch, rear prop stands and either loading skids or the full-width ramp (1.83m/6’ in length), the versatile flatbed can be used to carry loads such as small plant, ride-on mowers, mixers, shredders, rollers and a multitude of mobile plant equipment.
