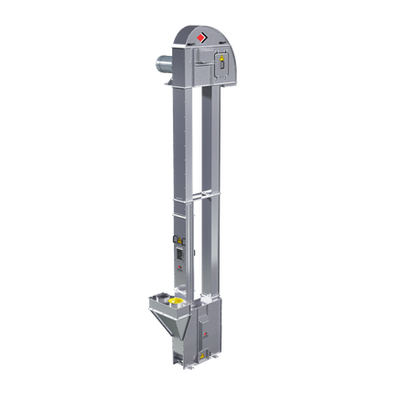

SE140 TVM is manufactured from galvanised material and in accordance with the EU machinery directives. It is as standard a Category II 3D/0D Elevator and complies with the European ATEX directive 94/9EC. It is suitable for most materials to be handled in a farm drying and storage plant. SE 140 TVM is available in four models: 20, 30, 40 and 60. The different models give the following capacities when feeding on upgoing leg side. Remember that every 1% increase in moisture content above 15%, decreases capacity by 3-4%.

SEI 35/14, 59/18 and 50/23 is manufactured from galvanized material in accordance with the EU machinery directives. The different models give the following capacities based on grain with 15% moisture content, bulk density 750 kg/m3, fed on upgoing side and at below specified nominal shaft rpm. Remember that every 1% increase in moisture content above 15%, decreases capacity by 3-4% . The capacity is affected with the same percentage as the gear box revolution changes.

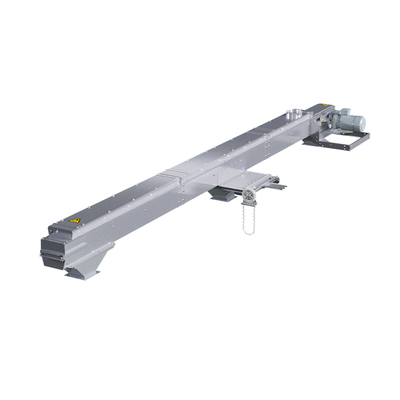

Manufactured from galvanized material and in accordance with the EU machinery directives. It is as standard a Category II 2D/0D Conveyor and complies with the European ATEX directive 94/9EC.Reversing is possible for lenghts up to 25 meter. When operating in a farm drying and storage plant handling different types of grain, the internal atmosphere complies with Zone 21 and the external is unclassified. If the conveyor operates in a plant where the external atmosphere is classified as Zone 22, Electrical motors and switches must be ATEX approved. KTF is available in three models, 30, 40 and 60, to match the rated capacities of Skandia Bucket Elevators.

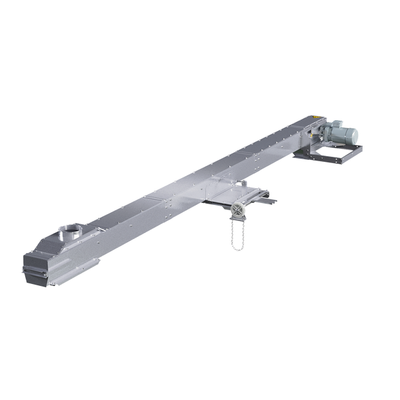

Manufactured from galvanized material and in acc. with the EU machinery directives. It is as standard a Category II 2D/0D Conveyor and complies with the European ATEX directive 94/9EC. When operating in a farm drying and storage plant handling different types of grain, the internal atmosphere complies with Zone 21 and the external is unclassified. If the conveyor operates in a plant where the external atmosphere is classified as Zone 22,  Electrical motors and switches must be ATEX approved. Brush gear for intermediate outlet cannot be used on KTF/R. KTF/R is available in three models, 30, 40 and 60, to match the rated capacities of Skandia Bucket Elevators SE 140.

Manufactured from galvanized material and in accordance with the EU machinery directives. It is as standard a Category II 2D/0D Conveyor and complies with the European ATEX directive 94/9EC.

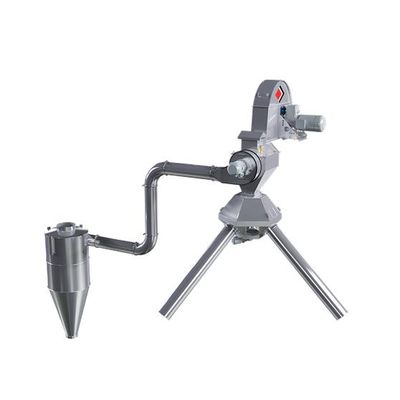

The DC Remover is the kind of solution that will improve the quality of your product. All of its parts are optimised to fit each other like hand in glove. This gives you a cleaner product. But an increase of quality is not all; by reducing the dust the working environment improves, and the risk of accidents at the workplace is less of a concern. Also, less dust will get into engines and moving parts, which gives your installation a longer life. Oh, and your staff won’t need to clean those machines as often. But we’re pretty sure they won’t miss it.
