Soil-Max, Inc. products

Soil-Max HD tile stringer carts improve productivity with their smart design and broad tiling range. They simplify tile spool transport and feeding so you spend less time in transport and set-up and more time tiling.

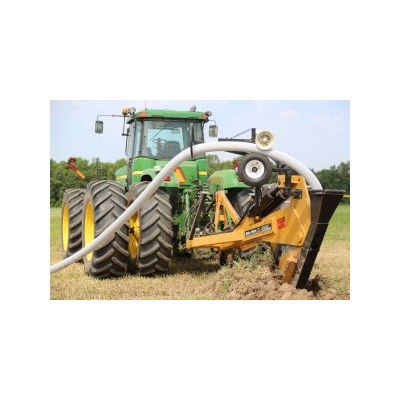

The Soil-Max Gold Digger is unlike any other agricultural drainage plows on the market, producing unparalleled economic and environmental benefits.  Unlike the Gold Digger, other tile plows on the market aren’t made from T1 steel. T1 steel is strong and thin and thus easier to pull than plows made from thicker types of steel.  Unlike traditional designs, the Gold Digger has a 3-point hitch that is in float, keeping the tractor completely independent of the plow. This unique design translates into reliable grade control even with less-than-perfect surface conditions.

All of the above as well as… 6.5’ working depth. Easy single pin connection to hitch. Single point hydraulic hook-up to tractor. Proprietary down pressure manifold puts only necessary pressure on the wing wheels, ensuring that pipe being installed in the soil profile is being done correctly and is unaffected by surface conditions.

Same as stealth ZD. 5.5’ working depth. Easy connecting 3pt in Cat III or Cat IV. Can be used on tractors as small as 20,000 lbs.

Manufactured from T1 Steel, allowing twice the tensile strength with half the weight. Needs a minimum of a 8,000 lb tractor. Thinner profile shank = easier pulling through the soil. 4` maximum working depth. Installation of 2” to 4” tile by changing quick change poly sided boots and shear. Zero deflection produces better grade control with the tile exit point directly below the hinge point of the pitch plow. Proprietary proportional valve to make crucial incremental adjustments to keep your plow on grade. Poly sides that shed dirt and makes for an easier pull.

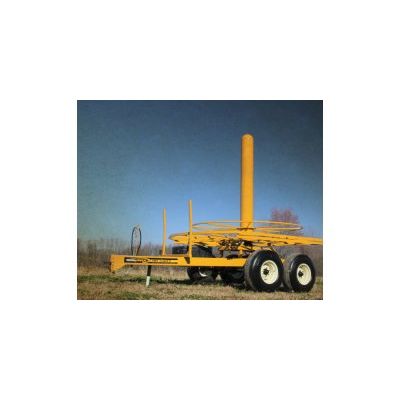

The Soil-Max® HD Cart is built to handle the rigors of rugged terrain. It has a sturdy 5,200 lb. axle on 6-lug wheels with a steel tube construction frame. A 30-foot magnetic controller and 12V DC hydraulic unit makes operating the unit simple and straightforward.  Standard onboard charging system.

Both on and off the field, our 8-ply high flotation tires (12.5 –15) reduce soil compaction and make transport easy. LED brake lights, height-adjusting hitch, and legal highway transport width eliminate the transportation headache from field to shed.

Choose a 3-point hitch like this that give you better flexibility of when you tile.  Customizing your tiling operation, a 3-point hitch model is easy to hook up and can provide some additional weight to your tractor (as seen in photo).

The Shaper Pro brings the ability for users to close a tile trench with little difficulty. With its one-of-a-kind design, the Shaper Pro resizes and relocates tile heave right back over the center of your tile. The Shaper Pro can be used by every installer of tile from the larger commercial customer to producers using tile on their own farms.

Minimize tile stretching by adding a tile feeder to pull type and 3-point plows. The adjustable speed tile feeder will help maintain pipe integrity, ensuring you do it right the first time.
