SprayTarget products

VariTarget is a nozzle that is capable of controlling flow rate and maintaining proper spray pattern and droplet size over an extended range of flow rates. The nozzle comprises a flexible spray tip that is automatically and appropriately deformed by a flexible metering  ssembly in response to changes in liquid pressure. Application rate from 5 to 40 GPA and spray speed from 5 to 25 MPH is achievable with one VariTarget nozzle.

VeriJet is a nozzle thai is capable of controlling flow rate over an extended range of flow rates. The nozzle comprises a flexible metering orifice that is automatically and appropriately deformed by a flexible metering assembly in response to changes in liquid pressure.

Pressure Range: 15 - 60 PSI. Outlet Connection: 1/4" or 3/8" hose barb or push-in fitting. Large and Flexible Orifice: Minimum clogging. Material: Excellent chemical and wear resistance. Max. Pressure: 100 PSI.

Feature: Flow Rate Range: 0.25 - 2.5 GPM. Spray Angle: 110 Degrees. Droplet Size: Extremely Coarse (White Tip). Spray Pressure: 15 - 60 PSI. Max. Pressure: 100 PSI. Material: Excellent chemical and wear resistance. Flexible and Large Orifice: Minimum clogging .

Flow rate variable from 1.5 to 12 GPM as varying pressure from 1 5 to 45 PSI. Wide range of application rate (10 - 80 GPA @15 MPH) achievable with one nozzle. Flow rate controllable on the go. Fast response to the rate change. Flat fan spray with tapered edge and extra wide spray angle. Spray angle of 140° constant over the range of flow rates.

Variable  Flow  Nozzle with  Extremely Coarse  Droplet.

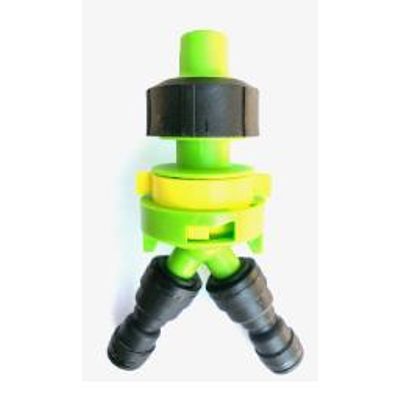

The Hi-Veriflow2 (HVF2) features a variable orifice that produces a wide range of flow rates and two outlets with even flow distribution.
