Stewart Agricultural Limited products

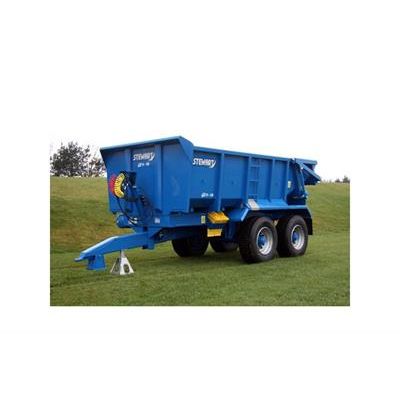

Carry Capacity: 20,000 KG. Cubic Capacity: 26 m3. Maximum Trailer Speed: Fast-tow trailer 80kph. Body: Dimensions: 7600x2500x1500mm, Hydraulically operated rear door, Full width front view grille with perspex cover, Access ladder outside and inside body, Rope hooks on every body panel, Grain Hatch.

Carry Capacity: 19,000kg. Cubic Capacity: 25m3. Maximum Trailer Speed: 20mph. Body: 7300x2450x1500mm, Hydraulically operated rear door, Access ladder outside and inside body, Rope hooks on every body panel.

Carry Capacity: 15,000kg. Cubic Capacity: 10m3. Maximum Trailer Speed: 20mph. Body: Dimensions: 4800x2500x1100mm with scow tail Access ladder outside body Rope hooks on every body panel.

Carry Capacity 15,000kg.Cubic Capacity 13m3.Maximum Trailer Speed 20mph.Body Dimensions: 4800x2500x1060mm.Hydraulic rear door
Access ladder outside body.Rope hooks on every body panel.Floor Bearers 80x80 steel box section.Body Frame 80x80 steel box section.Top Rail 80x80 steel box section.Floor 8mm steel.Sides 6mm steel.Chassis 250x150 box section

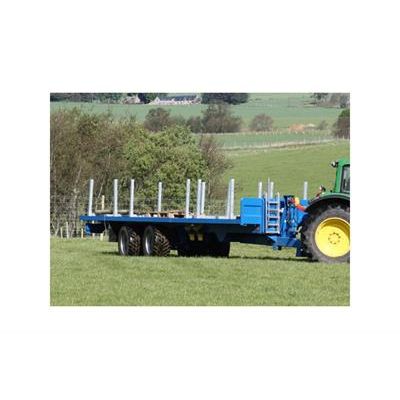

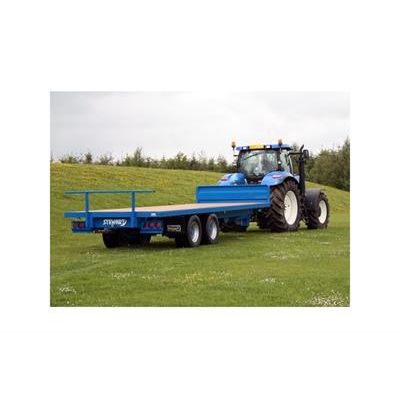

Length : 26ft to 36ft. Carry Capacity : 15,000kg. Maximum Trailer Speed : 20mph. Body : Standard width 2500mm (8’2”). Floor Bearers : 100x50 channel. Rope hook on every floor bearer. Floor : 28mm Keruing or 4mm steel.

Length : 26ft to 28ft. Carry Capacity : 12,000kg. Maximum Trailer Speed : 20mph. Body : Standard width 2500mm (8’2”). Floor Bearers : 100x50 channel. Rope hook on every floor bearer. Floor : 28mm Keruing or 4mm steel. Side Rave : 125x75x8 steel angle. Chassis : 250x150 box section. Axles : Granning 90mm 8 stud, 300x135 brakes.

Low Loader Trailer Model GX 22 LL.Carry Capacity : 22,000kg. Maximum Trailer Speed : 20mph. Body : Standard Width 2500mm. Beaver tail with hydraulically operated rear ramps. Floor Bearers : 100x50 channel. Floor : 50mm Keruing. Side Rave : Pressed steel with keyhole cut outs as chain securing points. Chassis : 250x150 box section. Axles : Three Granning 125mm Ø 10 stud, 310x190 brakes. Suspension : Granning underslung spring suspension.

Carry Capacity: 15,000kg. Maximum Trailer Speed: 20mph. Body: Standard width 2500mm (8’2”). Beaver tail with hydraulically operated rear ramps. Floor Bearers: 100x50 channel. Floor: 50mm Keruing. Side Rave: Pressed steel with keyhole cut outs as chain securing points. Chassis: 250x150 box section.

We have been manufacturing quality aluminium floats since 1990. Each float is designed and manufactured to suit the individual customer`s requirements.

The Folding Deck range is a tractor drawn livestock float built for the high volume user. We have been manufacturing quality aluminium floats since 1990. Each float is designed and manufactured to suit the individual customer`s requirements. Externally the float looks the same as the standard Stewart float with pressed side sheets welded to aluminium posts at 1150mm intervals. Inside however the design is the same as our commercial livestock floats with folding aluminium sheep decks, fixed position doors and a hydraulically operated run up ramp to the second sheep deck.
