Taege Engineering Ltd products

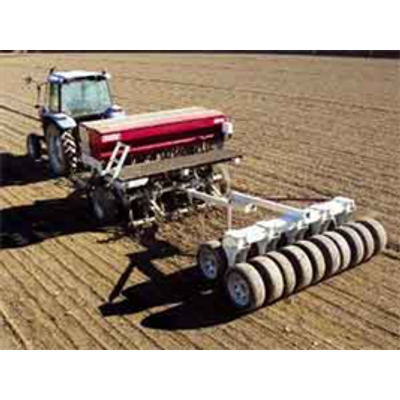

Seed Drill Hoppers
Large capacity seed hoppers (405L for 3.0m and 485L for 3.6m). High mounted hoppers give good seed delivery to the hoses, on steep country. Hoppers can be used for either seed and/or fertiliser. Optional third hopper for insecticide and small seed application. Hopper/s are easy to empty at the end of day, or between crops. See Controller Operator Manuals (run to empty)

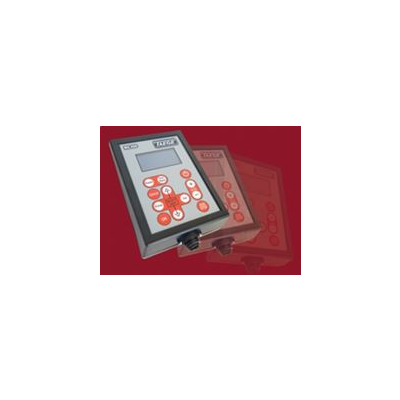

CONTROLLER
Accurate electronic control from the tractor cab. Easy Calibration. Settings for one, two or three hoppers. Stores up to 25 crop settings per hopper. Naming for each hopper and crop for easy identification. Target weights from 0.00 – 999.90kg/ha for each crop setting. Diagnostic and dynamic status screens.World leading technology. Very quick and easy to calibrate. Ability to increase or decrease seeding rate on the move from your tractor seat. Switch to any saved setting and start drilling without the need to re-calibrate. Each crop can have an alternate rate programmed, so that the seeding rate can be switched instantly at the push of a button. This feature is dynamic and excellent when repairing pasture. Built in area meter, speedometer, voltmeter and diagnostics. Stores the last 5 area settings for each of the twenty five crop settings. If your controller is an RC300, Software upgrades are available.(computer)Air Seeders
Taege - Touch Screen Controller
Our computerised sponge metering system is standard on all our models, they provide fast, easy and accurate calibration without the risk of seed damage.

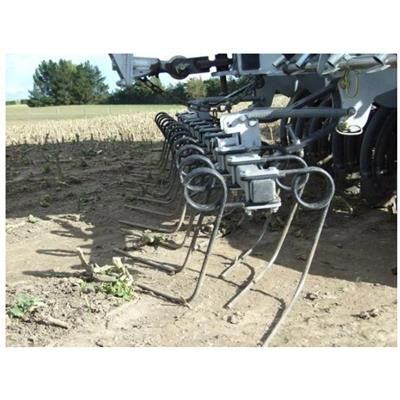

Taege - Tyne Harrows
Our flexible tyne and Tungsten faced tips giving you excellent penetration”. Our live Taege tyne harrows give you the ability to gather any available tilth on the land and windrow back into trenches.

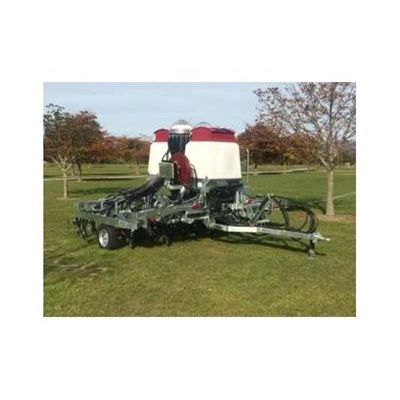

Air Seeder Machine
Available in 4.8m width. 39 tynes with 121mm (4 3/4 inch) spacing’s. 850 litre hoppers. Patented livetyne angle giving you excellent penetration and trash clearing. Ability to drill around corners. Contour following for sloping or uneven ground. Full complement of upgrades to suit your individual requirements. Phasing Ram system used to give even depth of seed planting. Simple construction, less moving parts reduces down-time, repair and maintenance.
