Teamco products

Impeller With Shredding Screw: The 540 RPM impeller is equipped with a cutter rimmed shredding screw. The screw shreds the manure lumps and sucks them up in record time. Synchronized Articulation: This Teamco designed system uses only one cylinder to perfectly synchronize movement. The operator does not need to calibrate the driveshafts’ angles. This system eliminates vibration caused by wrong driveshaft angles.

Flex-Mix: Recommended Tractor, 140 TO 180HP PTO (540RPM). Available in length of 12’, 14’ and 16’. Shredding Screw: About 75% of the power is required by the impeller. The tractor’s hp is transmitted directly to the impeller without going through gears. Requiring less power, the shredding screw is driven by the gear box. With this system, manure is shredded and sucked up in record time. Impeller: The flex-mix is a manure pump that empties your pit to its lowest level due to its articulated 540 RPM impeller. Equipped with cutters, the impeller completes the shredding screw’s work.

Recommended Tractor 180 TO 300HP PTO (1000RPM). Available in length of 12’, 14’ and 16’. Rotating Stirring Nozzle. The 4 inches stirring nozzle is the most powerful on the market. It’also the most manoeuverable with its 245° horizontal and 150° vertical swings. . Shredding Screw 24’’. Manure is stirred with a 24 inches shredding scew. It’s shredded and homogenized in record time.

Recommended Tractor 85 To 180HP PTO (540RPM). Available in length of 32’ and 42’ for lagoons and vertical wall pits. Hydraulic Loading ARM 8’’: This feature allows a pumping rate of up to 2600 gallons per minute to fill a spreader located left or right of the pump, without braces or any effort. Impeller With Shredding Screw: The 540 RPM impeller is equipped with a cutter rimmed shredding screw. The screw shreds the manure lumps and sucks them up in record time.

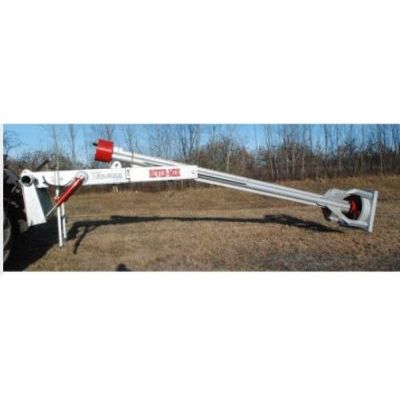

RECOMMENDED TRACTOR 140 TO 180HP PTO (540RPM) With its reversible gearbox, the rever-mix can stir in both directions. It’s designed to stir labyrinth type pits to a maximum depth of 12’. The Rever-mix requires one double action hydraulic output.

Manure Pumps: Recommended Tractor 180 À 300 HP PTO (1000RPM). Available in length of 35’ ou 45’ for lagoons and vertical wall pits. Hydraulic Loading ARM 8”: This feature allows a pumping rate of up to 2600 gallons per minute to fill a spreader located left or right of the pump, without braces or any effort. Shredding Screw 24”: Manure is stirred with a 24 inches shredding scew. It’s shredded and homogenized in record time.

BGE-2438: 21’ long dump box placed on a 4 wheel frame (20’ lg), having a 30 metric ton capacity.

The Teamco spreaders are available in 63 different models, from 2960 gallons up to 7920 gallons. They can be made of steel, stainless steel or marine aluminium. These models come with 4, 6 or 8 wheels.

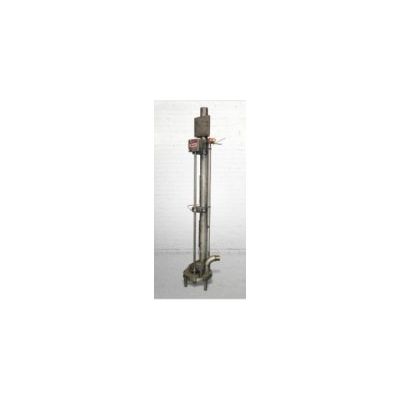

The teamco pre-pits pump is entirely made of stainless steel, including the ball bearings. It is designed for hog manure and other low-fibre liquids. Its shredding 6 inche impeller is complemented with a 2 inches pivoting stirring nozzle. The pumping operation is done though a 4 inch pipe. Greasing points are located near the electric motor to ease maintenace.

ANTI-LOCK PIVOTING COVER (PATENTED) Door mounted on 3 points with a slopping axis to create a downward latéral movement. No slides on the door, therefore no risk of blockage due to the accumulation of manure.
