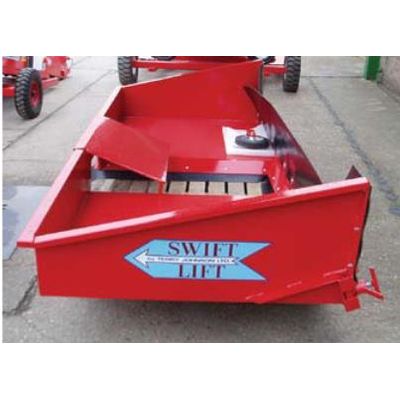

Swift Lift Interchangeable Hoppers are designed for versatility and efficiency, offering four distinct styles: Tipping Hopper, Small Hopper, Circular Hopper, and Large Bulk Hopper. Each hopper can be easily attached and detached without tools, simplifying maintenance and cleaning. The Bulk Hopper is ideal for products that do not need gentle handling. The Tipping Hopper features a 2.65m (104 ins.) wide interior, complete with a rubber front, deflector plate, and wheels for ease of use. The Small Hopper is available in widths of 1.25m (49 ins.) for 600 mm machines and 1.5m (59 ins.) for 900 mm machines. The Circular Hopper, a preferred choice for root crops and slewing operations, comes in widths of 1m (40 ins.) for 600 mm machines and 1.2m (51 ins.) for 900 mm machines, with optional cushion lining for additional protection. These hoppers are engineered to meet the demands of various applications, enhancing operational flexibility and productivity.

Swivel grain chute 2 m. (79 ins) long to fill those awkward corners of the store. Straight grain chute 1.5 m. (49 ins) long to give extra reach in front of the wheels.

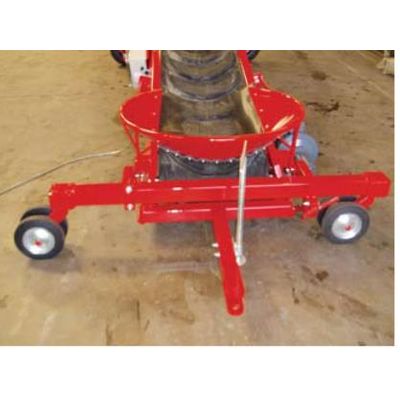

Castor wheel assembly and elevator skate roller assembly. These two options are to aid movement on uneven surfaces. The castor wheel assembly cannnot be used with the tipping or bulk sided hopper.

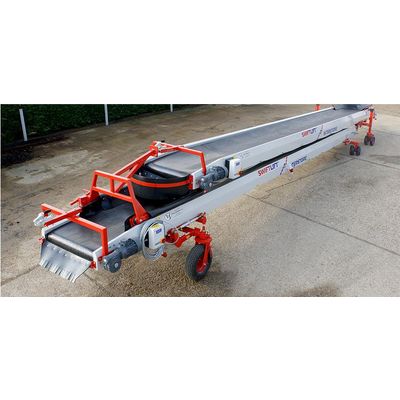

The flagship of the Elevator range the Extendo is available with a 600mm or a 900mm wide belt. Standard features include variable speed drive, automatic slewing platform, luffing head and a low intake height.

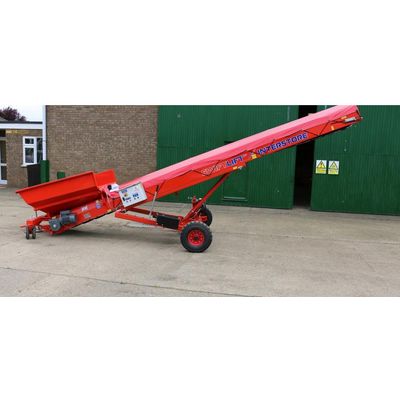

The Interstore Conveyors are manufactured as single units or double units in various lengths and two belt widths. In the single form the lengths range from 3.00 metres (9`10") to 9.75 metres (32`0") and as a Double Conveyor in two lengths, 8.80 metres (28`8") extending to 14.30 metres (47`0") and 11.05 metres (36`3") extending to 18.80 metres (61`6").
