Veda Farming products

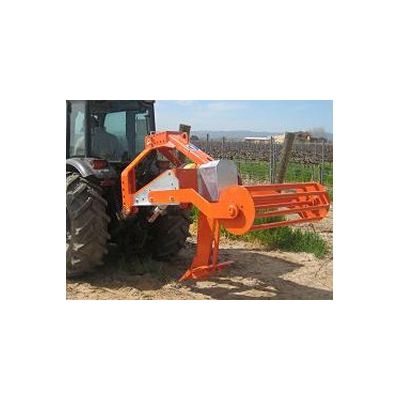

Ideal for hard, dry dirt, a Veda Farming Vibrating Subsoiler prepares the land by infusing air into the soil to increase drainage without changing the composition of the soil. After many years of agronomical study, Veda Farming Vibrating Subsoilers were engineered to efficiently chop up heavy and stony dirt and fracture hardpan without mixing debris into the dirt or pulling it up from the bottom. The design enables the machine to reach a depth of 3-4 feet while fertile soil remains on top and the ground remains porous and airy to help water rise up during periods of drought.

Modular drill designed for medium and small areas; SP 2002 is able to meet every need of sowing and adapts to any type of terrain. The sowing elements are fixed to the support bar by a screw. This allows changing the distance between the seeding elements (ie between rows) very quickly. Each sowing element is equipped with parallelogram, so each row is independent of the others. This allows to adapt oneself to the ground and to ensure a constant sowing depth. The seeding depth is given by a rocker arm system that connects the front wheel to the rear wheel; their short distance ensures the homogeneity even in soils not perfectly prepared and in the case of small seeds.

The FMAX works great with a variety of plants from tomatoes to tobacco. Its transplanter carousel turns in a clockmotion (STOP & GO), guaranteeing a consistent drop of plants from carousel to shoe. This ensures precision of plant depth and distance within the row, as well as increased performance per hour. Working great on both flat and raised beds, the FMAX has yield of up to 5,000 plants per hour per row. To prevent accumulation of dirt this machine is equipped with a self-cleaning kicker in the ploughshare.

Universal 3 point linkage Cat. 2. Single speed gearbox 540 rpm PTO. Lateral transmission driven by chain in oil bath. Automatic chain tensioner on spring. Opposite side transmission in oil bath. Front dual metal face seals in oil bath on rotors. Removable flanged rotor. Rotor fitting 6x spade blades per flange. Wearing steel protection counter-flanges. Working depth adjustable by crank handle. Rear selector rake mounted on lateral springs. Drive Shaft with shear bolt torque limiter SB type (1”3/8 Z=6 tractor side yoke).

Reverse Tiller: Universal 3 point linkage Cat. 2 & 3 + ASAE 3ª. Tractor linkage swinging arms. Single speed gearbox 1000 rpm PTO. Double Lateral transmission driven by chain in oil bath. Automatic chain tensioner on spring. Front dual metal face seals in oil bath on rotors. 2x rotors with central support. Removable flanged rotors. Rotor fitting 6x spade blades per flange. Wearing steel protection counter-flanges. High resistance steel side pannel. Lateral transmission with cardan shaft. Working depth adjustable by crank handles. Rear Double layered filtering screen mounted on lateral springs.Drive shaft with shear bolt torque limiter SB type (1”3/8 Z=6 tractor side yoke).

This scraper can carry out large amounts of dirt in a short amount of time. This is due to its broken line goose-neck bin chassis, which allows for a larger space between the blade and chassis. The differential radius blade and bent cutting blade also plays a big role in large movements of soil in small amounts of time. The frames to these scrapers are built with tubular steels and high strength metal sheets. The rear equalizer axle is extendable with sliding hydraulic jacks. These work great for a variety of crops including rice fields, irrigation scrolling, and double slope fields.
