Weiss McNair products

Weiss McNair`s 836 Hazelnut harvester is designed specifically for the unique conditions of the hazelnut industry. The optional elevator mud brush keeps the chain free of mud to allow for increased air flow; the front feed paddle wheels prevent leaf pile-up in front of the side plates; a new leaf hood has increased the air velocity, resulting in an increased cleaning efficiency; and the vacuum, which has an easy access hinged opening and a larger trash capacity, allows for faster ground speed.

The Weiss McNair 9800 California Special nut harvester is designed to help California meet all government clean air and water regulations. The long intermediate dirt chain allows dirt to sift through the chain before the suction fan vacuums debris from the crop for less dust and a cleaner harvest. The vacuum system provides for faster, cleaner loads. The 9800 has fewer parts, while gear boxes, drive sprockets, extension shafts, and roller chains have been eliminated to assure minimal downtime. Extra large rear balloon tires provide maximum floatation for reduced compaction.

The 9800P pecan harvester has been improved to more effectively separate the trash from the lighter weight pecans. The higher lift design, along with the longer bar-type intermediate dirt chain, now allow more time for the trash to settle out and separate from the crop. The double outlet chute option provides dual openings for faster operation during heavy, wet trash conditions for a faster, cleaner, more profitable harvest.

The 9800P walnut harvester has been improved to maximize the efficient separation of trash from heavy loads. The bar style dirt chains allow for more trash to settle out before reaching the vacuum chamber. The double outlet option provides dual openings for faster operation during wet conditions. The revolutionary bar style pick up system is an option that provides immediate dirt separation, an industry first designed for a cleaner faster harvest.

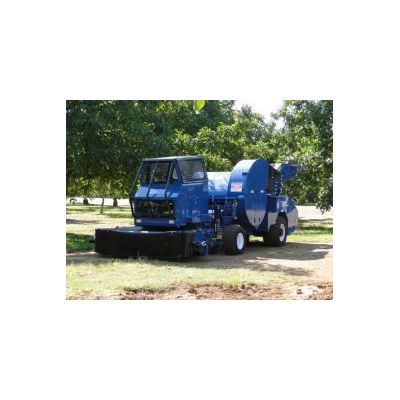

The Magnum X Harvester features a full 48" straight thru pickup, separation, and elevation system with an airlock at the dirt chain to control dust. Enlarged vacuum and separation chambers provides a cleaner load, at faster ground speed. The Magnum X is powered by a Cummins QSB4.5, 130HP Tier 3 turbo-charged diesel engine. The engine is rear mounted, allowing for improved visibility to all sides, a quieter, cooler operator area, a lighter picking head that won`t sink into soft dirt, while the rear mounted engine puts weight on the drive wheels for increased traction.

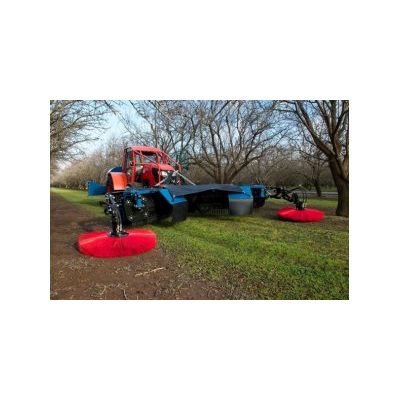

The proven Weiss McNair tractor mount center delivery V-Sweeper is now offered in a Low Profile Vee (LPV) for sweeping in orchards with narrow rows and bushy trees where a one way sweeper could not operate. The sweeper heads are 4 bar tine bar type.

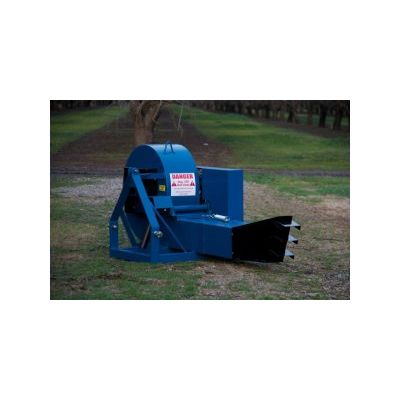

The Weiss McNair tractor mount B85 blower is designed to quickly clean up hard to reach areas under shrubs and trees as well as large tracts of ground. The eight bladed fan is driven by a five groove pulley with five 3V belts, and is capable of generating air velocity of 130MPH, providing ample reserve power for even the toughest jobs or applications. The B85`s simple design requires a minimum amount of regular preventive maintenance, yet provides many extended hours of enhanced operator convenience, a combination that makes for profitable operations.

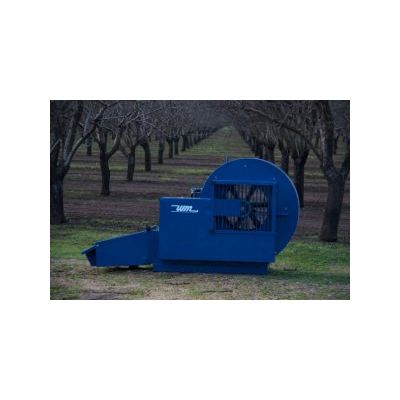

The Weiss McNair heavy-duty B-87 series blowers are designed to clean tree rows in the toughest harvest conditions. With an easy 3 point hitch and drive shaft hookup the B-87 one-way blower`s superior performance meets all the requirements with plenty of reserve cleaning power. The B-87 series features can be easily adapted to farms, industrial parks, golf courses, race tracks, etc. for moving leaves and debris quickly and economically.
