Wilger Inc. products

The ER series is made up of a conventional flat fan tip, producing fine coverage and small droplets. ER spray tips do not reduce drift, and are typically used as a baseline for comparing drift reduction in other tips. Ideal for applications which require fine coverage, and are not very drift sensitive. (i.e. Fungicides).

The SR series Wilger’s 1st stage drift reduction series, producing excellent coverage, with significant drift reduction. The SR series tip-caps reduce ~50% of driftable fines, compared with the same application with an ER series tip/cap. Ideal for applications which require fine coverage, but require significant drift reduction. (i.e. Contact Herbicides/Fungicides).

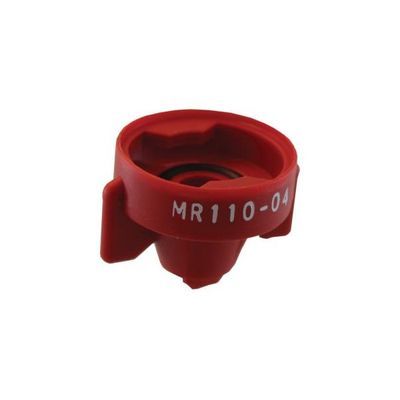

The MR series Wilger’s 2nd stage drift reduction series, producing great coverage, with very significant drift reduction. The MR series tip-caps reduce ~75% of driftable fines, compared with the same application with an ER series tip/cap. Ideal for applications which require good coverage, but require high levels of drift reduction. (i.e. Systemic Herbicides).

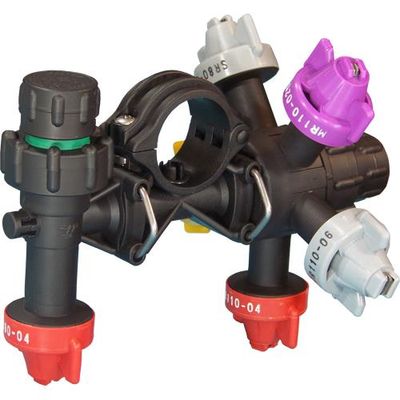

Combo-Rate II Stacking Nozzle are a new design, which include having the nozzle bodies attach to the boom with a bottom (or top*) fed inlet. Notably, this allows for nozzle bodies to be stackable both forward and backward off of a boom. (as well as having an outlet directly under the boom). When paired with Wilger’s shut-off modules, it creates a versatile nozzle body system that is limitless in configurations. Ranging from simple configurations of using multiple spray tips at the same time, to operating three sets of nozzles on air actuated lines that can change flow rates and tips from within the cab.

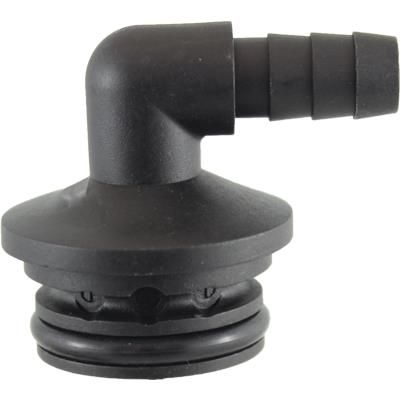

A variety of male ORS Fittings are available to be used as outlet ports. Push-in tube, hose barb and NPT-F fittings are available to use.

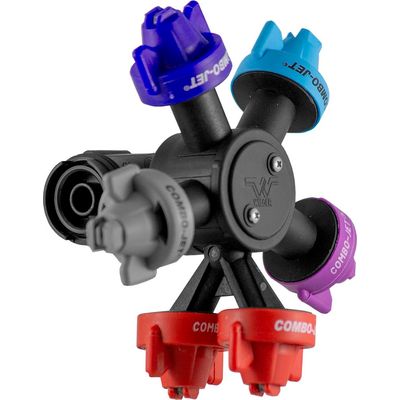

Combo-Rate (CR) turrets and stacking bodies attach to any combo-rate or combo-rate ii nozzle body saddles. CR Turrets, thru, and end bodies can make any configuration that helps you spray more effectively.
