Zaintoudis Bross G.P. products

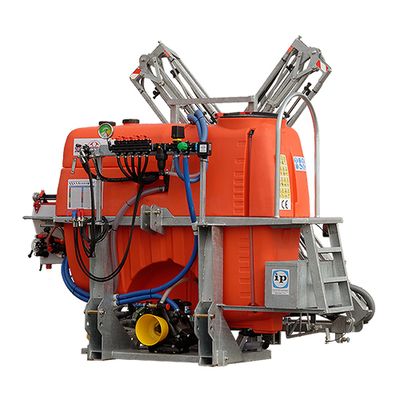

Mounted sprayer 200 Lit. Main hot galvanized frame. T-shaped spraying boom with 3+3 or 4+4 butterfly nozzle holders with ceramic nozzles. Main polyethylene tank. High pressure pumps IMOVILLI POMPE up to 70 lit/min and control units with 3 outlets. Hydraulic agitator. Total empting valve. Sunction filter with inox cartridge.

Main hot galvanized frame. 10,5m manual hot galvanized boom. Nozzle holders with diaphragm check valve ARAG. Main polyethylene tank. Low or high pressure pumps IMOVILLI POMPE up to 130 lit/min and control units with 3 outlets. Hydraulic agitator. Anti-pollution ejector with fast coupling. Filling hose 6mt length with filter. Total empting valve. Sunction filter with inox cartridge.

Main hot galvanized frame. Manual or hydraulic hot galvanized booms from 12m to 18m. Nozzle holders with diaphragm check valve ARAG. Hydraulic elevator. Main polyethylene tank. Low pressure pumps IMOVILLI POMPE up to 200 lit/min and control units with 5 – 7 outlets. Suction filter assembly. Filling hose 6mt length with filter. Total empting valve.

Main hot galvanized frame. Manual or hydraulic hot galvanized booms from 12m to 18m. Nozzle holders with diaphragm check valve ARAG.
Hydraulic elevator. Main polyethylene tank. Low pressure pumps IMOVILLI POMPE up to 200 lit/min and control units with 5 – 7 outlets. Suction filter assembly. Filling hose 6mt length with filter. Total empting valve.

Main hot galvanized frame. Manual or hydraulic opened/closed hot galvanized booms from 12m to 15m. Main polyethilene tank. Hand wash polyethilene tank. Clean circuit polyethilene tank. Wash tank system. Chemical filler (mixer) 25 lt. Low pressure IMOVILLI POMPE pumps up to 200lit/min and control units with 5-7 outlets. Sunction filter assembly. Filling hose 6m length with filter. Total emptying valve. Single/triple Arag nozzle holders with diaphragm chek valve. Lechler spraying nozzles. Hydraulicaly adjustable boom spraying height.

The FANTINI S.R.L. has dealt exclusively for 35 years with design and manufacture of corn headers. With their wide experience in this area, the gradual development of their machinery and the adoption of innovative technologies, the high quality manufacture material, the specialized staff and the constant control of productions lines has managed to lead the European Market and dispose a great number of machinery operating all over Europe.

The COMBINED STONE PICKER RST/520-S-SPECIAL is equipped with side windrowers,allowing the machine to operate ata total working width of 3,600 mm; the stones can be collected on any type of soil,both untilled and hard soil, or tilled and cultivated soil.

The STONE PICKERS  TOMENZOLI can collect stones on any type of soil,both untilled and hard soil, or tilled and cultivated soil. The stone picker machine shall be hooked to the fixed hitch of a tyred-type or tracked-type tractor, and is operated by means of the universal joint, linked to the 540-rpm Power-Take-Off ( P.T.O.), without the need of any super-speed-reducer. By means of a vibrating pick-up system, stones from 20 mm to 600 mm diameter can be easily collected, and it is thanks to this system that the maintenance of the stone collecting components is reduced to a very minimum. The stone collecting depth - 0 to 200 mm - is hydraulically regulated from the tractor, whereas the machine working speed can vary, according to the working depth and to the quantity and size of stones present in the ground.It is thanks to the vibrating pick-up system and to the mobile grid that even the last quantity of earth is returned back to the soil.

STONE WINDROWER RT/3000-FM  -  RT/4000-FM. The windrower allows to gather stones in rows so as to reduce the collection time of stone pickers, clearing so huge areas from stones in a lesser time. The stone windrowers RT/3000-FM and RT/4000-FM can arrange in rows stones of 20 to 600 mm diameter. The machines are tractor power take-off-operated, to which a friction cardan for safeguarding the pick-up mechanical parts is connected.
