ZASLAW Sp. z o.o. products

Single-wire pneumatic braking system. Hand brake. Parking brake - spring cylinders. 2 axles, mechanical suspension - multi-leaf springs. Drum brakes. Tyres 11,5 / 80 r15,3 (new tyres, not regenerated). Steel rims. 12v electric installation. Hydraulic cylinder with oil cut-off valve at maximum deflection of the loading body to the back at 50°, to the sides at 47°,  Openable dropsides of 500 mm height. Telescopic cylinder. Pneumatic, electrical, hydraulic sockets for second trailer. Triangle for slow-running vehicles. Box-body paiting in ral 3004 or 6002. Steel sheet thickness: floor (3mm), dropsides (2mm). Frame shot-blasted and painted with a primer ans top-coat paint ral 7021. Drawbar eye fi 40. Lines protecting the box-body. Mudflaps. Wheel wedges - 2 pcs.

Loading capacity: 15 500 kg. Gross Vehicle Weight: 21 000 kg,. Volume: 15 m3. Number of axles: 2. Box-body length: 5 500 mm. Box-body width: 2 200 mm. Height:  2 580 mm. Length:  8 060 mm. Width:  2 550 mm. Sides height: 1 200 mm. Platform height from the ground:1 350 mm. Tyre size: 385 /65 R22.5`. Wheel track: 2 000 mm. Max. speed:  40 km/h

Loadingcapacity: 15500kg.  GrossVehicleWeight: 21000kg. Volume: 24/33m3. Numberofaxles: 2. Box-bodylength: 7210mm. Box-bodywidth: 2256mm. Heightwithout/withtopside: 3120/3727mm. Length: 9815mm. Width: 2550mm. Sidesheight: 1570+600mm.
Tyresize: 550/65R22.5`. Wheeltrack: 2000mm. Couplingheightfromtheground:390-890mm. Max.speed: 40km/h

Loading capacity:10 000 kg. Gross Vehicle Weiht: 14 500 kg. Volume:13,2 m3. Number of axles: 2. Box-body length: 4 500 mm. Box-body width: 2 420 mm. Height:2 670 mm. Length:6 570 mm. Width: 2 550 mm. Platform height from the ground:1 390 mm. Dropsides height:600+600 mm. Tyre size:385/65 R22.5`. Wheel track:1 800 mm. Max. speed: 40 km/h.

Loading capacity:14 300 kg. Gross Vehicle Weight: 18 500 kg. Number of axles:3. Tyre size: 500/50 R17`. Platform length: 9 920 mm. Platform width: 2 480 mm. Total length: 12 558 mm. Total height: 3 422 mm. Total width:2 550 mm. Platform height from the ground: 1 140 mm. Wheel track:2 000 mm. Max. speed:40 km/h.

Loading capacity:9 000 kg . Gross Vehicle Weight: 11 500 kg. Number of axles:2. Tyre size: 500/50 R17`. Platform length: 7 200 mm.
Platform width: 2 480 mm. Total length: 9 380 mm. Height: 3 350 mm. Width:2 550 mm. Platform height from the ground: 1 150 mm. Wheel track: 2 000 mm . Max. speed: 40 km/h

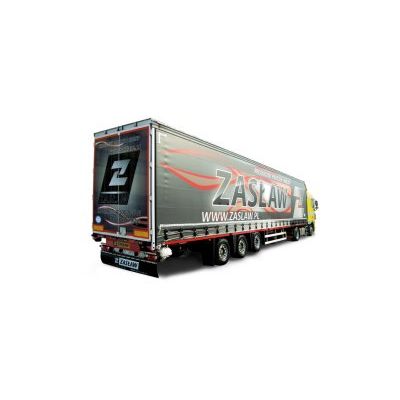

MEGA curtain semitrailer made in compliance with norm certificate EN12642 XL –26 t. Frame made of high quality steel, galvanized. BPW or SAF axles. BPW landing legs. Pneumatic system - KNORR-BREMSE. H-S platform leveling valve. Lifting axles. Made in compliance with norm certificate EN12642 XL –26 t. MULTILOCK system to fasten cargo placed in the lateral borders. Sliding roof VERSUS. Winch for spare wheel.

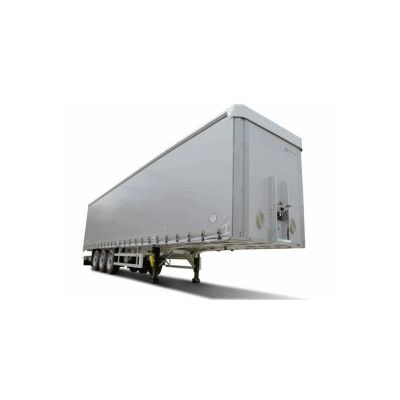

Standard curtain semitrailer made in compliance with norm certificate EN12642 XL –26 t. Frame made of high quality steel, galvanized. BPW or SAF axles. BPW landing legs. Pneumatic system - KNORR-BREMSE. H-S platform leveling valve. Lifting axles. Made in compliance with norm certificate EN12642 XL –26 t. MULTILOCK system to fasten cargo placed in the lateral borders, Sliding roof VERSUS. Winch for spare wheel.

Loading capacity: 6 000 kg. Gross Vehicle Weight: 9 200 kg. Volume: 8,5 m3 . Number of axles: 2. Box-body length:  4 040 mm. Box-body width: 2 126 mm. Height: 2 140 mm. Total length: 6 192 mm . Width: 2 250 mm. Platform height from the ground:1 014 mm.
Dropsides height:1000 mm. Tyres size:  11.5/80 R15.3”. Wheel track:1 500 mm. Max. speed:25 km/h

ZASLAW offers you self-unloading semi-trailers designed to meet your needs. The vehicles we offer are a result of many years of experience, which allows us to deliver you semi-trailers made of the highest quality materials and brand units, translating into uncompromised reliability of our products and very low vehicle weight. The optimised design of our tipping trucks will provide you benefits with every driven kilometre. The use of a vertical front wall in volumes starting from 54 m3 additionally increases stability and safety during unloading. Products presented below are used, inter alia, in transport of bulk materials, agricultural crops or pallets and the range of optional equipment allows even better adaptation to your needs.
