High Quality New Type Organic Fertilizer Granulator Machine On Sale
Fertilizer Granulator Machine
This series of new type organic fertilizer granulator designed and manufactured through wet continuous pusher granulation. Zhengzhou Fusmar Machinery is a professional organic fertilizer granulator manufacturer, this article will introduce this machine in detail.
New Type Organic Fertilizer Granulator Introduction
The new type of organic fertilizer granulator used for granulating various organic substances after fermentation, breaking through the conventional organic granulation process, no need to dry and crush the raw materials before granulation. Otherwise, the spherical granules can process through direct batching, which can save a lot of energy.
The qualified granulation rate of the machine is up to 80-90%, adapting to many different formulations. The compressive strength of organic fertilizer is higher than that of disc and drum. The large ball rate is lower than 15%. The uniformity of particle size can pass according to user requirements. The stepless speed regulation function of this machine adjusted. The machine is most suitable for direct granulation after the fermentation of organic fertilizer, saving the drying process and greatly reducing the manufacturing cost.
New Type Organic Fertilizer Granulator Application
This machine is especially suitable for granulation of lightweight fine powder materials. The finer the basic particles of the fine powder material, the higher the sphericity of the particles, and then the better the quality of the ball. Generally, the particle size before granulation should less than 200 mesh. Typical application materials: chicken manure, pig manure, cow dung, carbon black, clay, kaolin and so on.
This machine can not only granulate a variety of organic materials, especially coarse fiber materials that are difficult to granulate using conventional equipment. Such as crop straw, wine residue, slag, dregs, animal waste, and so on. The granulation effect of raw materials such as humic acid and municipal sludge also achieved good results.
New Type Organic Fertilizer Granulator Features
The new organic fertilizer granulator uses the mechanical agitation force of high-speed rotation, thereby generated the aerodynamic force. Continuously mix, granulate, spheroid and compact the fine powder material in the machine, thereby achieving the purpose of granulation. The shape of the particles is spherical, the sphericity is ≥0.7, the particle size is generally between 0.3-3 mm, and the granulation rate is ≥90%. The particle diameter can appropriately adjust through the material mixing amount and the spindle rotation speed. Generally, the lower the mixing amount, the higher the rotation speed, the higher the particle size. And vice versa.
The granules produced are spherical. The organic content can as high as 100% to achieve pure organic granulation. Using organic particles under a certain force, they can inlay with each other, and no binder needed for granulation. The particles are solid and can sieve after granulation to reduce drying energy consumption. The organic matter after fermentation does not need to dry, and the raw material moisture content can be 20-40.
Working principle Of The Machine

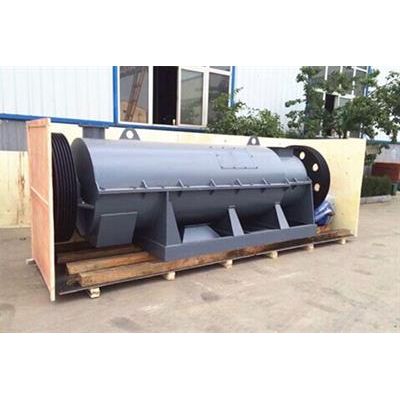

The new organic fertilizer granulator consists of a body part, a granulation rotor part, and a transmission part.
The working principle of the new organic fertilizer granulator is that the material enters the machine from the inlet of one end of the machine body, and then continuously pushed through the granulation rotor and mechanically moved with the casing to achieve the purpose of granulation. Finally, the finished granules are at the other end of the body pushed outside the machine.
The motor and reducer drove the rotor of the transmission part. The transmission part and the body part mostly fixed on the same frame, which not only has a firm structure, stable operation, but also very convenient to install. It is a new era of environmentally friendly fertilizer production equipment.
Now, this new type of organic fertilizer wet granulator is popular among the users. The wet organic fertilizer granulator of Fusmar Machinery sells well in domestic and foreign markets and enjoys a high welcome. The birth of new products, new production processes, energy-saving, and environmental protection are trustworthy!
