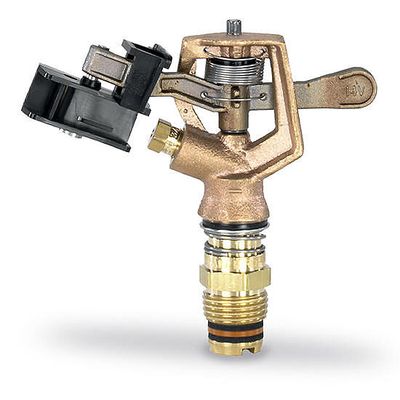

Rain Bird - Model 14VH - 1/2" (13mm) Full Circle Brass, Wedge Drive Impact Sprinkler
Used in undertree, overtree, overvine and row crop solid set and permanent systems. Excellent frost-protection/ irrigation sprinkler. Patented self-flushing nylon "V" wedge makes it a strong-driving sprinkler, even with the smallest nozzles.
Most popular related searches
impact sprinkler
frost protection
row crop
irrigation sprinkler
brass impact sprinkler
irrigation
sprinkler irrigation
advanced irrigation
- 1/2" (13mm) male NPT brass inlet bearing
- Full circle operation
- Patented, self-flushing wedge drive to operate with smaller nozzles and lower operating pressure
- Durable brass die-cast arm
- Stainless steel springs and fulcrum pin
- Chemically resistant washers
- Back by five-year Customer Satisfaction Policy
- For use with Rain Bird SBN-1 Straight Bore Nozzle, sold separately
- Bearing: 1/2" Male NPT, Brass
- Trajectory Angle: 23 degrees
- Operating Range: 20-60 psi (1.4-4.1 bar)
- Flow Rate: 0.56-2.68 gpm (0.14-0.61 m3/h)
- Radius: 29-38 ft. (9.0-11.70 m)
- Nozzle Port: 1/8" Female NPT
