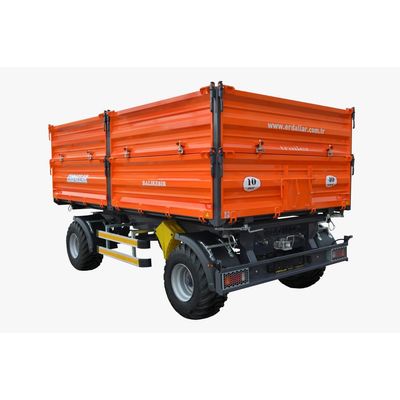

ERDALLAR - Model DNR-100-23 -10 TON ROTATING AXLE 3 SIDES TIPPING TRAILER

Rotating axle 3 sides tipping trailer with 10 ton loading capacity / EU type approval certificate and certificate of conformity are available

Most popular related searches

REQUIRED TRACTOR POWER: KW/HP 51,4/70

CASE DIMENSIONS (L/W/H): 4500/2300/1200

SIDE WALL HEIGHT MM: 600/600

BASE&WALL THICKNESS: 5 / 2,5 MM

CHASIS FLOOR HEIGHT FROM THE GROUND: 1020 MM

SUSPENSION: PARABOLIC SPRINGS

TOTAL TECHNICAL DIMENSIONS (L/W/H): 6450 / 2460 / 2390

TYRE SIZE: 400/60-15.5

TIRE TRACK WIDTH (OUTSIDE TO OUT): 1850MM

Technical Details
